Ultra Compact HDMI 2.0 SDVoE Fiber AV Over IP Receiver
VLIP-SDFR-RX
Data Sheet
User Manual
Product Description
Experience seamless AV signal distribution with the VLIP-SDFR-TX and VLIP-SDFR-RX extenders. Powered by SDVoE technology, these compact devices support true 4K/60Hz video with zero frame latency over 100 meters. Its ultra-small size (87mm x 64mm x 22mm) allows easy installation even in tight spaces. These extenders can be used in a point to point configuration, or connected to a 10G network switch along with a controller for full asymmetrical matrix capabilities
Featured Highlights
Compact size and economical design
HDMI 2.0 and HDCP 2.2 compliant
Lossless distribution of most timing formats
Light compression with the raw data rate exceeding 10Gb Ethernet bandwidth
Supports input and output resolutions up to 4096x2160@60Hz 8-bit 4:4:4, 4096x2160@60Hz 10-bit 4:4:4 and 4096x2160@60Hz12-bit 4:2:0 HDR
Supports point-to-point transmission of 4K signal at the distance up to 300m
Supports point-to-multipoint, multipoint-to-multipoint transmission via 10GbE switch at the distance of up to 300m (between a device and the switch)
Zero-frame latency
Required bandwidth: 6~8 Gbps for 4K, 3.2 Gbps for 1080P
Compatible with Semtech BlueRiver AV Manager
Specifications
| VIDEO | |
|---|---|
| Input Connectors | 1 x SFP+, 10GBase-SR |
| Supported Input | 640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,
1440x10508, 1600x12008 , 720x4807(480i59), 720x4807(480p59), 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59), 1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60), 1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29), 1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60), 3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29), 3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz; |

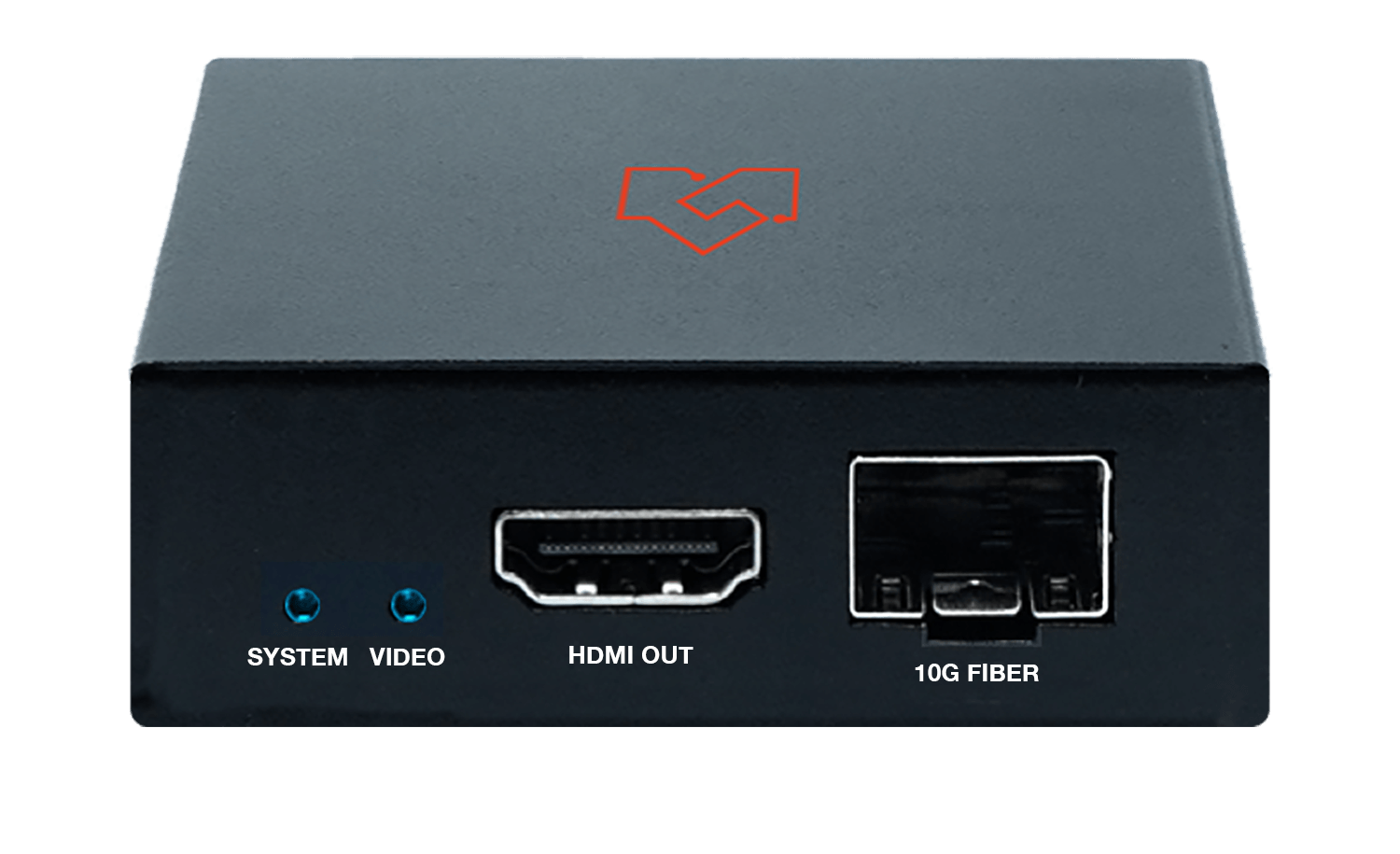

| Output Connectors | 1 x HDMI |
| Supported Output | 640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,
1440x10508, 1600x12008 , 720x4807(480i59), 720x4807(480p59), 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59), 1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60), 1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29), 1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60), 3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29), 3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at |
| AUDIO | |
| Input Connectors | 1 x SFP+, 10GBase-SR |
| Supported Input | LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz Dolby True HD, up to 7.1,192kHz DTS-HD Master, up to 7.1,192kHz Dolby Digital AC-3 (DVD format) DTS version 1 (DVD format) |
| Output Connectors | 1 x HDMI |
| Support Output | LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz Dolby True HD, up to 7.1,192kHz DTS-HD Master, up to 7.1,192kHz Dolby Digital AC-3 (DVD format) DTS version 1 (DVD format) |
| Control | |
| Control Connectors | 1 x SFP+, 10GBase-SR, 10GbE |
| Control Method | Ethernet: PC software: for configuring, controlling and upgrading Web browser: for controlling API set: for integrating with the 3rd party control system |
| Mechanical | |
| Operating Temperature | 0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing |
| Storage Temperature | -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing |
| Humidity | 10% to 90%, non-condensing |
| Product Weight | To be measured |
| Power Supply | 5V 2A DC |
| Power Consumption | 4.75W |
| Transport Distance | 300m with OM-3 multi-mode optical fiber |
| Product Dimension | 87mm x 64mm x 22mm (L x W x H) |
| ESD Protection | Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge) |
