SDVoE Transceiver over Copper/Fiber With Switching USB-C (video + USB 2.0) and HDMI Inputs

VLIP-SDUFC-TRX

Data Sheet

Product Inquiry Form

Company

Company name

Name

First Name

Last Name

Message

Product Description

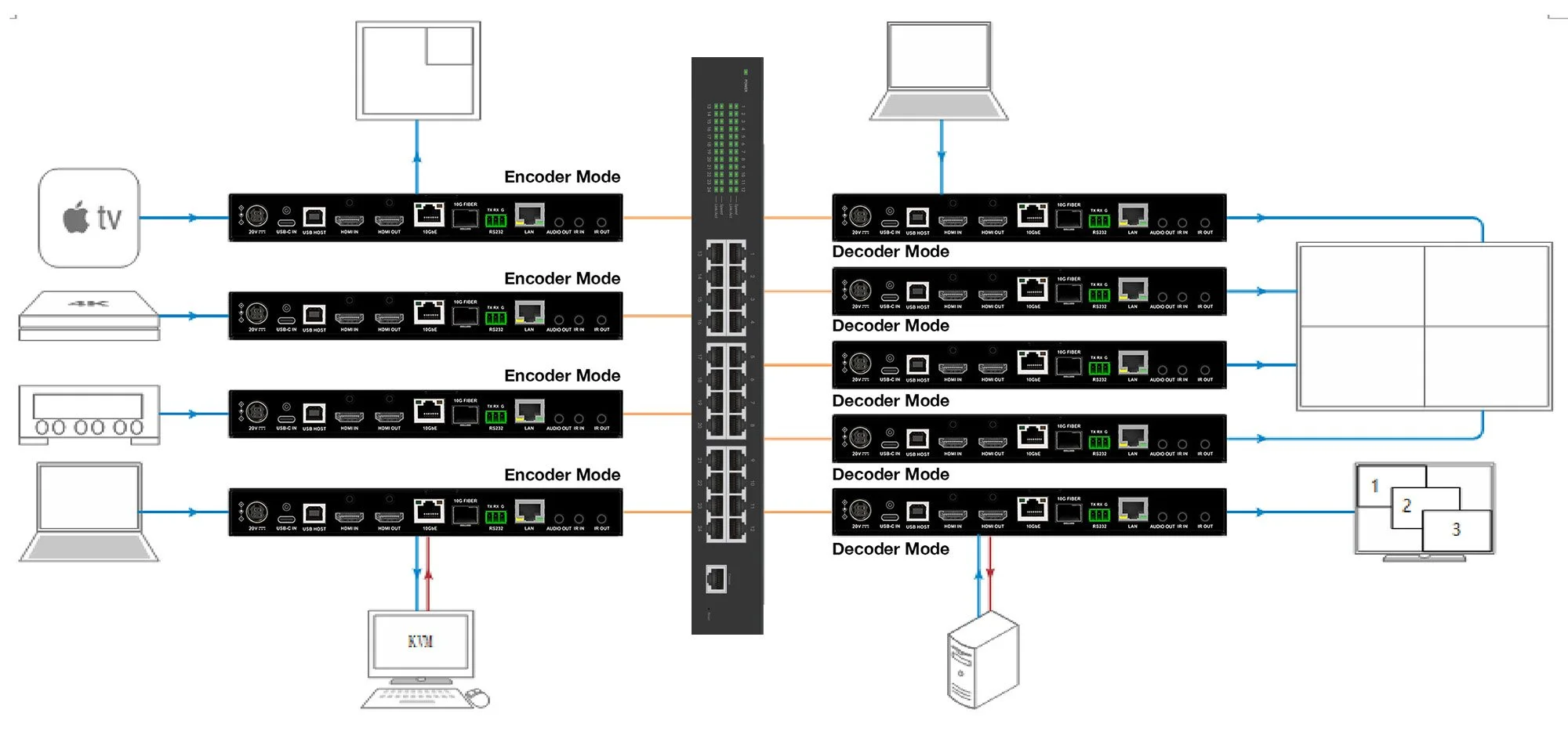

This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that provides the highest-quality, uncompressed 4K and zero-frame audio/ video extension over a standard 10G Copper Network Switch with instant switching, Video Wall, and Multiview functions. It can transfer advanced HDMI content such as HDR (high dynamic range), full-color depth, and multi-channel HD Bitstream audio. A flexible transceiver design (one box can be set to encoder or decoder) is much more convenient in an installation site and inventory control. Integrated 2 channel Dante allows for the audio to be sent to a distributed audio system. Multiple control and data signals can be simultaneously transmitted with audio and video, including bi-directional IR, RS-232, USB KVM, CEC, and 1G Ethernet.

Featured Highlights

Support the input/output timing of up to 4096x2160@60Hz, 3840x2160@60Hz (4:4:4) and 3840x2160@ 60Hz (4:2:0 10-bit HDR)
Between the device and the Ethernet switch or the transmitter/receiver/transceiver, the maximum transport distance is 100m (copper port) or 300m (fiber port)
The minimum end to end latency is less than 120μs
Switch the 10G Ethernet interface between the copper and fiber ports dynamically
Maximum video wall scale is 16x16 (4k source and FHD display)
Multi-view feature supports up to 16 windows
Supports Dolby Vision, HLG and HDR10 video (Genlocked mode)
Supports eARC/ARC on HDMI input and output
POE+ power
Two optional USB extension solutions:
a) USB HID only (12 Mbs)
b) Full feature USB 2.0 high speed 480Mbs utilizing Icron Technology

Specifications


     VIDEO/AUDIO

     Input Connectors
     1 x USB-C

1 x HDMI

1 x analog audio

1 x 10GBase-T

1 x 10GBase-SR

     Supported Input
    USB-C / HDMI / 10GBase-T / 10GBase-SR

[Video]

 640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

 Can support DolbyVision, HDR10, and HLG enhanced video encoding

[Audio]

Pass-thru support

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)

Note: LPCM audio can be downmixed to 2 channel audio outputs without a license.

Dante Audio Stream:

2 channel PCM, 24 bits, 44.1/48/88.2/96K sps

Analog audio

Unbalanced stereo audio

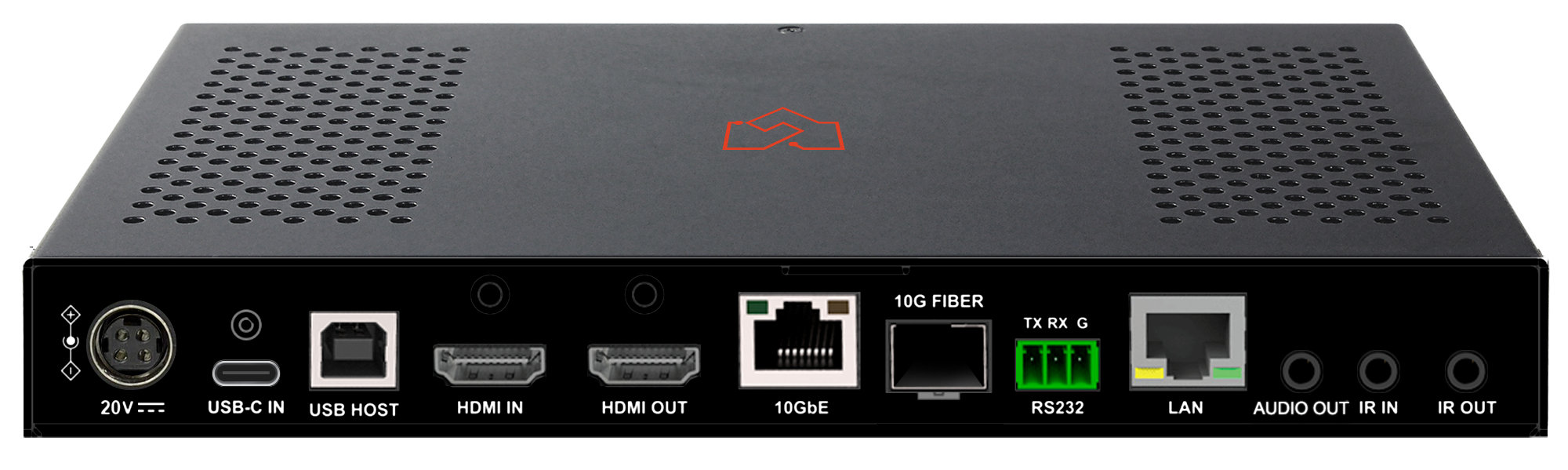

     Output Connectors
     1 x HDMI

1 x analog audio

1 x 10GBase-T

1 x 10GBase-SR

     Supported Output
     HDMI / 10GBase-T / 10GBase-SR

[Video]

 640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

 Can support DolbyVision, HDR10, and HLG enhanced video encoding

[Audio]

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)

Note: LPCM audio can be downmixed to 2 channel audio outputs without a license.

Dante Audio Stream:

2 channel PCM, 24 bits, 44.1/48/88.2/96K sps

Analog audio

Unbalanced stereo audio

     NETWORK

    Overview
     Except the GbE switch, the AVP chip has a built-in 10G switch to supports 10G network.

    10G Switch
     The 10G Switch of the AVP chip deals with the network packets with some rules:

1) All traffics of the SDVoE engine are not forwarded to the GbE switch

2) All traffics of the Icron USB chip are not forwarded to the GbE switch

3) Except the above two, the rest traffics are forwarded between the 10GbE port and the GbE switch transparently.

SDVoE vide stream occupies considerable network bandwidth, here is a list for the typical video timings and the approximate bandwidth:

   - 4K@60Hz RGB/4:4:4      9Gbps

   - 4K@30Hz RGB/4:4:4      6.6Gbps

   - 4K@60Hz RGB/4:2:0 10bit  8.2Gbps

   - 4K@60Hz RGB/4:2:2 10bit  9Gbps

    GbE Switch
     The GbE switch is a management switch chip and supports 802.1Q VLAN, as the factory default, the VLAN mechanism is inactive, it means that the GbE port and 10GbE port are interconnected. To avoid network loop, the below networking methods are prohibited:

1) The GbE and 10GbE ports of a same device are connected to the same 10G switch.

2) For two or more devices, their GbE ports are connected to a switch and their 10GbE ports are connected to another 10G switch.

To provide flexibility for networking, the device can achieve network isolation based on VLAN function of the GbE switch:

The MCU and the port connected to the AVP (10G switch) is in a same VLAN where the SDVoE services run. The Dante module, the ports connected to the GbE RJ45 and USB-C IN are in another VLAN where many general applications run. As an actual application example, the 10GbE ports and the GbE ports of multiple devices can be connected to the 10G switch and 1G switch at the same time without network loop.

Besides, the two ports connected to the GbE RJ45 and USB-C interface can be disabled separately for network security.

     Control

    Ethernet
     GbE / 10GbE port, for configuring, control and upgrading with several controller software or hardware:

1) HDMI Over IP Console

2) BlueRiver AV Manager, Semtech official controller which can’t access any feature not implemented by AVP chip, such as video source switching.
3) The 3rd party controller, VigilLink will provide the corresponding technical support.

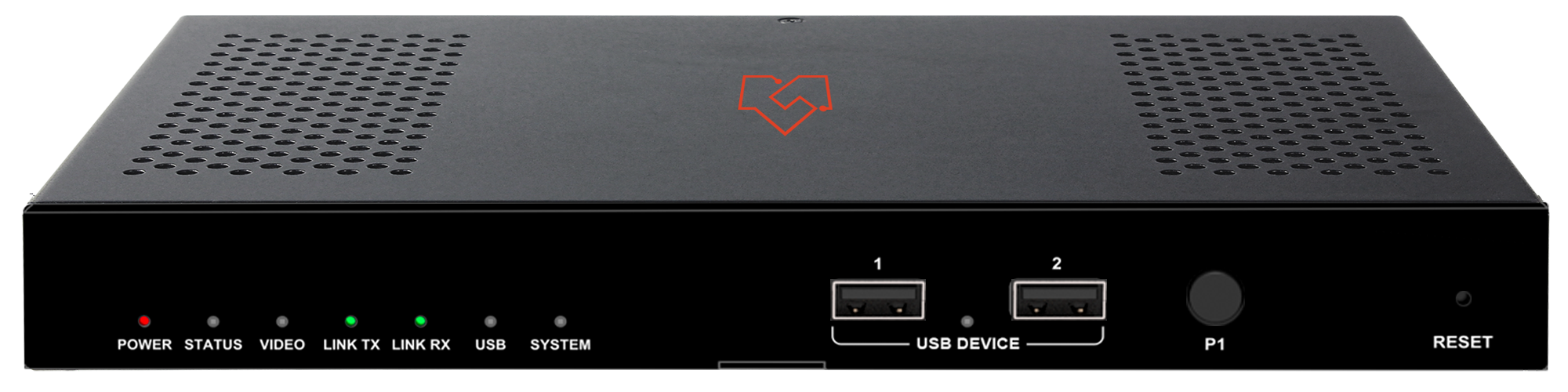

    Button
     A button on the front panel to switch the input video source and access some extended features

 button on the front panel to the factory default

     Mechanical

     Operating Temperature
     0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing

     Storage Temperature
     -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

     Humidity
     10% to 90%, non-condensing

     Product Weight
     To be measured

     Power Supply
     20V 10A

     Transport Distance
     100m (copper port) or 300m (fiber port)

     Product Dimension
     215m x 215mm x 25mm (L x W x H)

     ESD Protection
     Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact
discharge)
