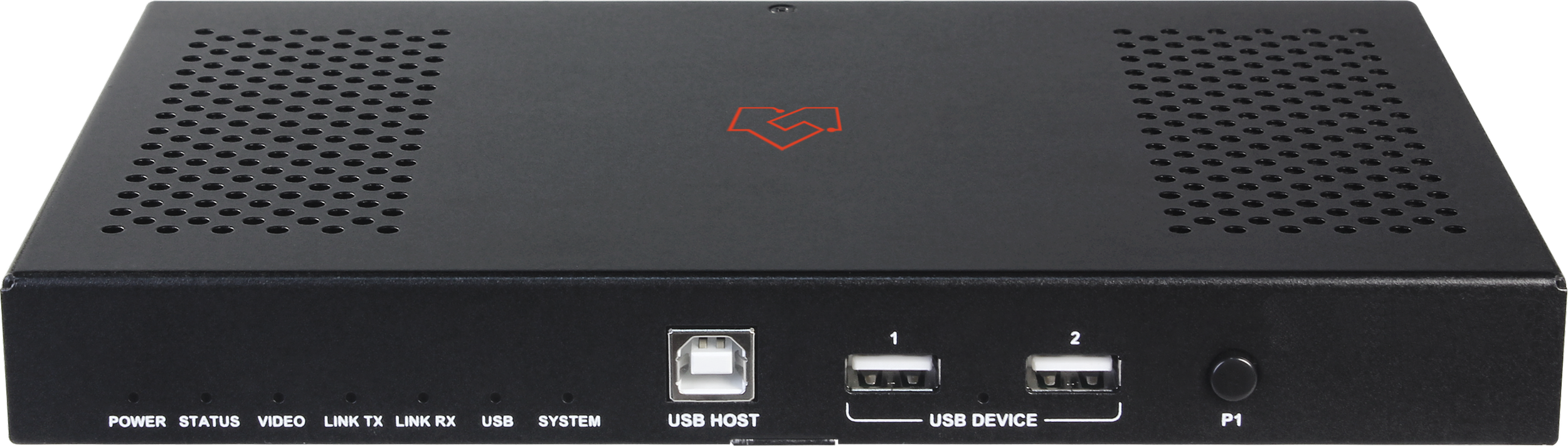

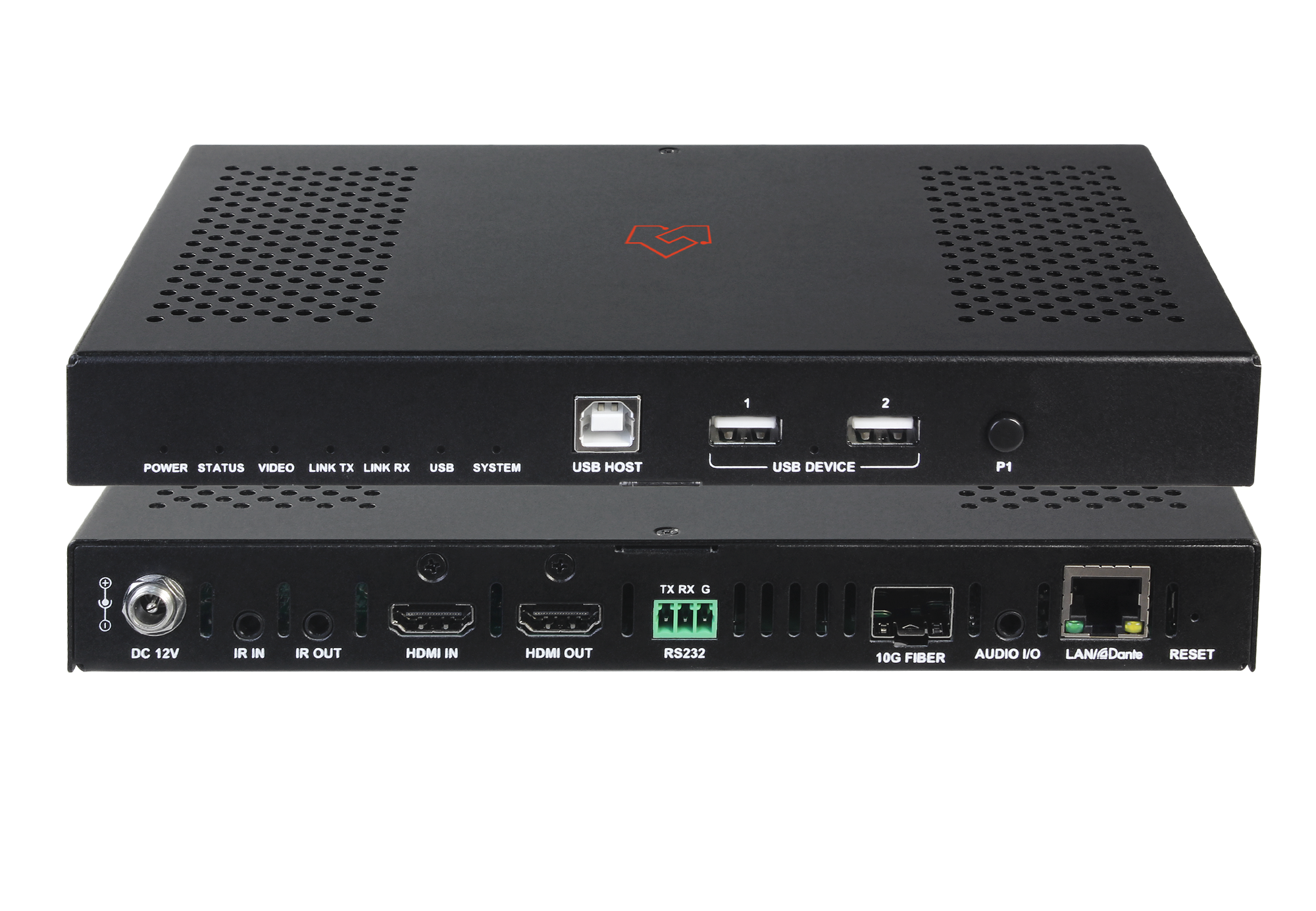

‌SDVoE 10G HDMI 4K60 4:4:4 over IP w/Videowall and Multiview with integrated Icron USB 2.0

VLIP-SDUFR-TRX

Data Sheet

Product Inquiry Form

Company

Company name

Name

First Name

Last Name

Message

Product Description

This transceiver is an SDVoE-Compliant, All-In-One AV over IP solution that provides the highest-quality, uncompressed 4K and zero-frame audio/ video extension over a standard 10G Fiber Network Switch with instant switching, Video Wall, and Multiview functions. It can transfer advanced HDMI content such as HDR (high dynamic range), full-color depth, and multi-channel HD Bitstream audio. A flexible transceiver design (one box can be set to encoder or decoder) is much more convenient in an installation site and inventory control. Integrated 2 channel Dante allows for the audio to be sent to a distributed audio system. Multiple control and data signals can be simultaneously transmitted with audio and video, including bi-directional IR, RS-232, USB KVM, CEC, and 1G Ethernet.

Featured Highlights

HDMI 2.0b and HDCP 2.2 compliant
Supports video resolution up to 4K@60Hz 4:4:4, 18Gbps video bandwidth
Flexible transceiver design (Encoder, Decoder, Copper, and Fiber port within a single box)
Encoder or Decoder mode can be set via Button or API
The Encoder supports HDMI Loop out
Supports HDR10, Dolby Vision, HLG, 3D as well
Supports complete HDMI audio formats, up to Dolby TrueHD, Dolby Atmos, and DTS-HD, DTS:X
Supports Zero-Frame latency operating mode
Supports signal extension, seamless switching, Matrix, Video Wall up to 9x9, and Multiview up to 25 windows
Flexible audio routes control, including bidirectional analog audio transmissions between the Encoder and the Decoder
Supports bi-directional IR and RS-232 control signal pass-through
Supports USB2.0 (KVM), CEC routing control
Supports IR, RS-232, TCP/IP, Web GUI control Standard POE supported (802.3at PD device)

Specifications


     VIDEO/AUDIO

     Input Connectors
     1 x HDMI 2.0

1 x Unbalanced stereo audio

1 x 10GBase-T/1 x 10GBase-SR

     Supported Input
     HDMI in/Ethernet (10GBase-T, 10GBase-SR):

[Video]

 640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at
30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz, 9 = 75 Hz;

[Audio]

LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

Dolby True HD, up to 7.1,192kHz

DTS-HD Master, up to 7.1,192kHz

Dolby Digital AC-3 (DVD format)

DTS version 1 (DVD format)

Audio in:

Unbalanced stereo audio

     Output Connectors
     1 x HDMI 2.0

1 x Unbalanced stereo audio

1 x 10GBase-T/1 x 10GBase-SR

1 x Dante, GbE

     Supported Output
     HDMI out/Ethernet (10GBase-T, 10GBase-SR):

[Video]

 640x4808, 800x6008, 1024x7688, 1280x10248, 1360x7688 , 1440x9008,

 1440x10508, 1600x12008 , 720x4807(480i59),
720x4807(480p59),

 720x5766(576i50), 720x5766(576p50), 1280x7205(720p50), 1280x7207(720p59),

  1280x7208(720p60), 1920x10806(1080i50), 1920x10807(1080i59), 1920x10808(1080i60),

  1920x10801(1080p23), 1920x10802(1080p24), 1920x10803(1080p25), 1920x10804(1080p29),

  1920x10806(1080p30), 1920x10806(1080p50), 1920x10807(1080p59), 1920x10808(1080p60),

  3840x21601(2160p23), 3840x21602(2160p24), 3840x21603(2160p25), 3840x21604(2160p29),

  3840x21605(2160p30), 3840x21605(2160p60), 4096x21605, 4096x21608

 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at

 [Audio]

 LPCM, 2.0/5.1/7.1 channel, 44.1/48/96/192 kHz

 Dolby True HD, up to 7.1,192kHz

 DTS-HD Master, up to 7.1,192kHz

 Dolby Digital AC-3 (DVD format)

 DTS version 1 (DVD format)

 Dante audio(GbE port):

 Two channels PCM

     Control

    Ethernet
     PC Configurator: for configuring, controlling and upgrading

    RS232
     PC Configurator: for testing and upgrading

     Mechanical

     Operating Temperature
     0 to + 40°C (32 to + 104 °F), 10% to 90%, non-condensing

     Storage Temperature
     -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing

     Humidity
     10% to 90%, non-condensing

     Product Weight
     To be measured

     Power Supply
     12V DC converter (with lock) with US pin

     Transport Distance
     300m

     Product Dimension
     140mm x 215mm x 25mm (L x W x H)

     ESD Protection
     Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact
discharge)
