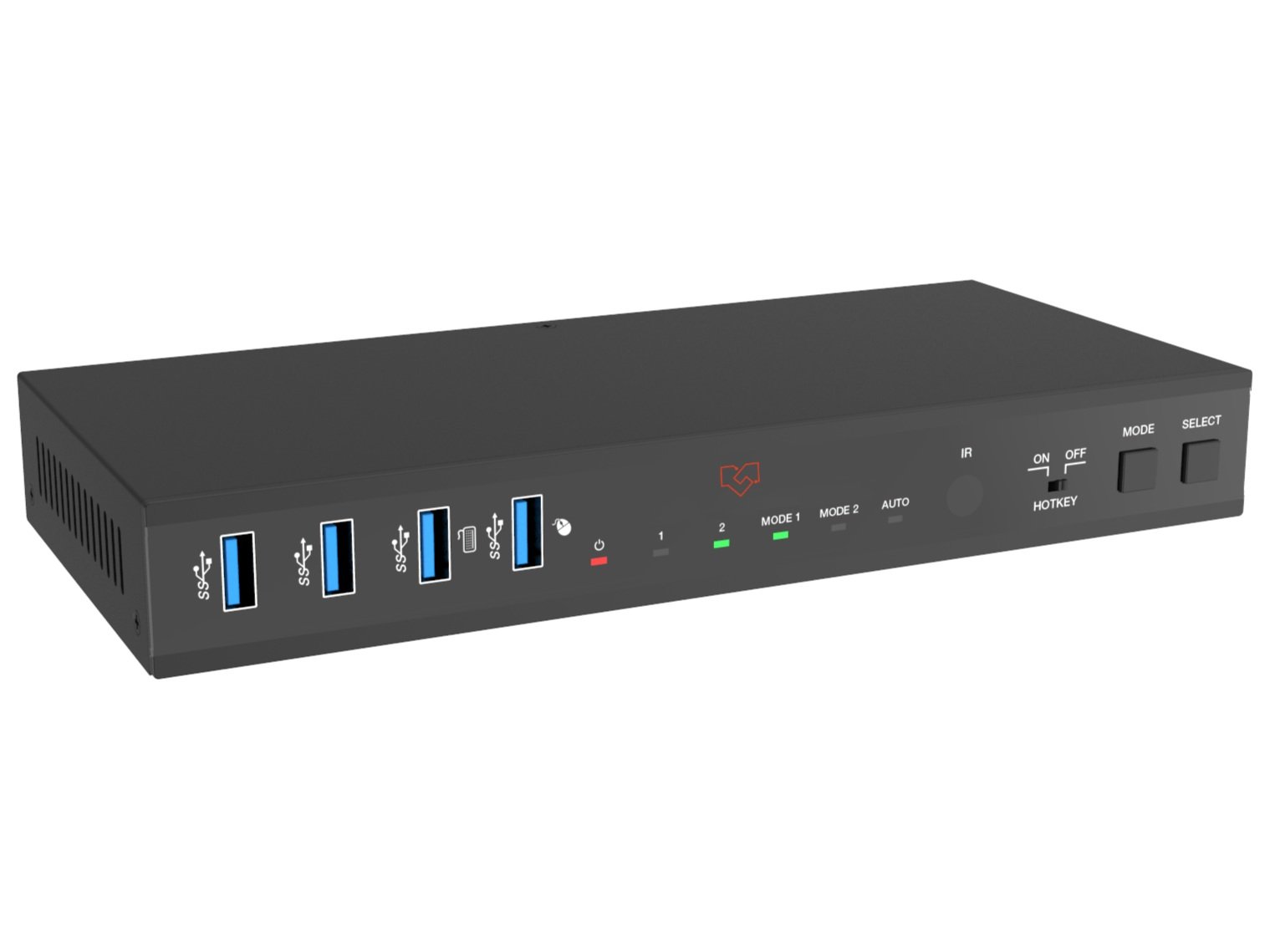

2 Port Dual Monitor 8K60 HDMI KVM Switcher

VLKV-H212D

Data Sheet

User Manual

Product Description

This is a 2x1 HDMI KVM Switcher with dual channel switching and hotkey switching. It supports HDMI 2.1 and HDCP 2.3 compatibility, supports resolutions up to 8K@60Hz 4:2:0 10bit, and can also transmit USB 3.0 signal up to 5Gbps for KVM function. It can share two monitors and USB devices between two PCs and supports two modes of operation.

The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkeys through the keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required and simple plug-and-play.

Featured Highlights

  • HDMI 2.1 and HDCP 2.3 compliant

  • Support Ultra-wide Screen, resolution up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz

  • HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, and SBTM are supported

  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

  • Using only 1 set of keyboard, mouse, and monitor to control 2 computers

  • Support video fast switching and keyboard/mouse seamless switching

  • Each input port has an EDID emulator to provide the correct information for the PC

  • Support hot plug, disconnect, or connect devices to the KVM at any time

  • Switching via front panel buttons, keyboard/mouse hotkeys, and IR remote control

  • Support auto switching

  • Advanced hardware/software design and production ensure zero latency

  • The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam, and hard disk between computers with data transfer rates up to 5Gbp/s

  • Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.1
HDCP Compliance     HDCP 2.3
Video Bandwidth     40Gbps
Audio Latency   No Latency
Video Latency     No Latency
Video Resolution     Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
IR Level     5Vp-p
IR Frequency     Fixed frequency 38KHz
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8/10/12bit
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats     HDMI IN/OUT:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,

DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD

L/R OUT: PCM 2.0CH
ESD Protection     IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
Input Port         4 x HDMI input [Type A, 19-pin female]
Output Port         2 x HDMI output [Type A, 19-pin female]

1 x L/R audio output [3.5mm Stereo Mini-jack]
Control ports         1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack]

2 x USB HOST [USB Type B]

4 x USB DEVICES [USB Type A]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     220mm [W] x 100mm [D] x 30mm [H]
Weight     626g
Power Supply     Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption     Typical value: 7.2W

Standby mode: 0.72W
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature     -4 - 140°F / -20 - 60°C
Relative Humidity     20 - 90% RH (No condensation)
