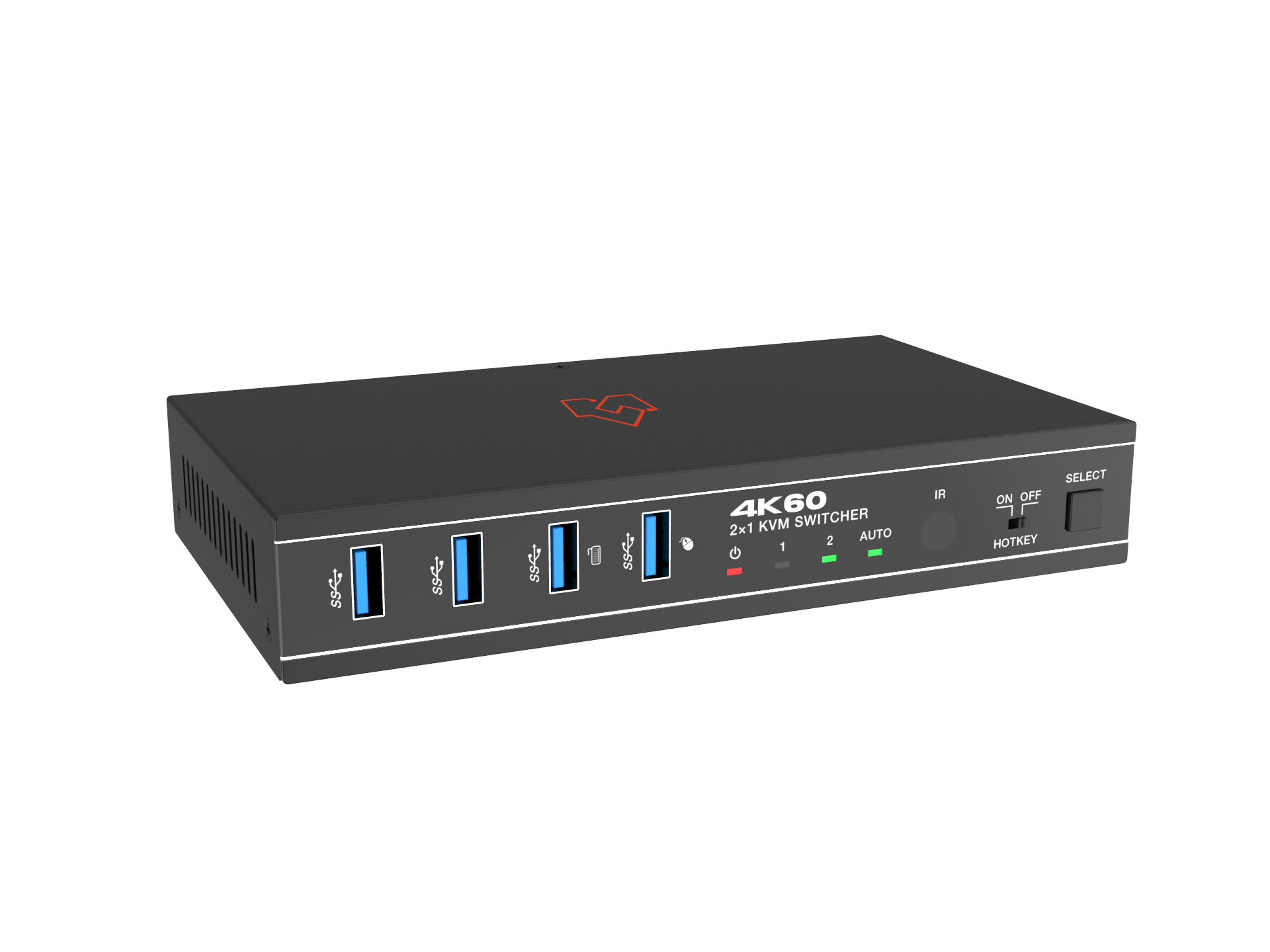

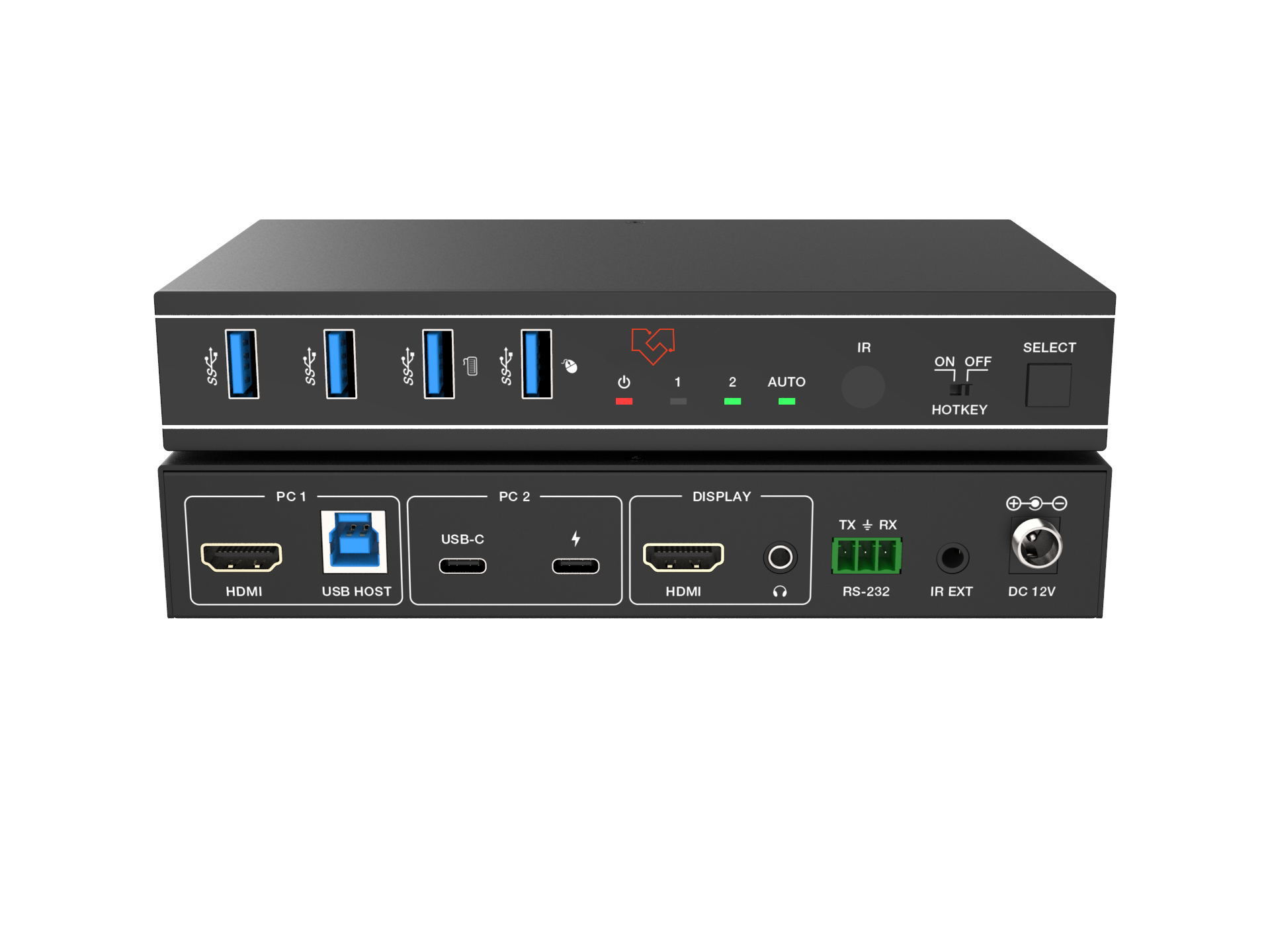

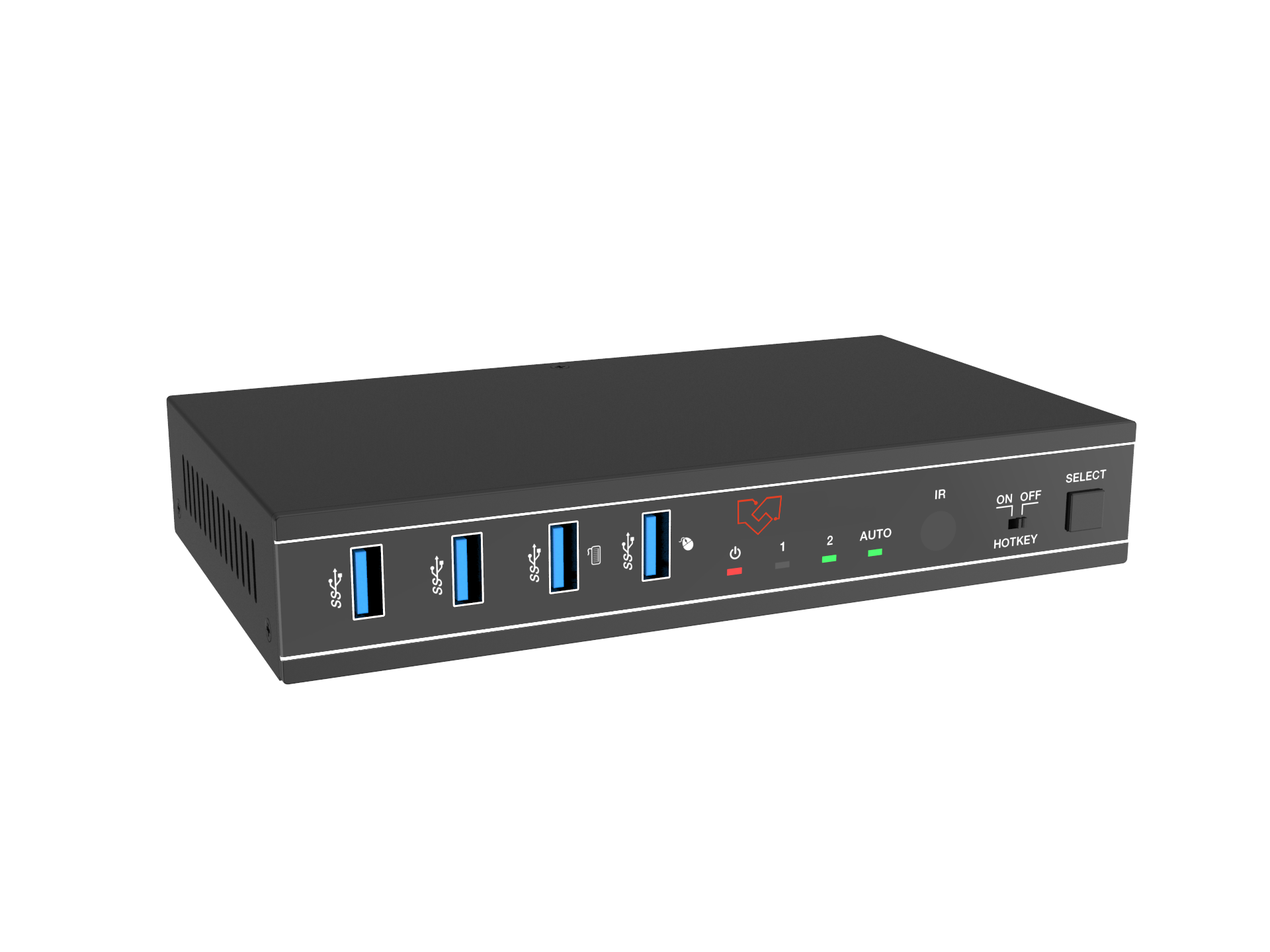

2 Port 4K60 HDMI/USB-C KVM Switcher

VLKV-H20C21

Data Sheet

User Manual

Product Description

This is a 2x1 HDMI/USB-C KVM Switcher with hotkey switching. It supports resolutions up to 4K@60Hz 4:4:4 8bit and can transmit USB 3.0 signal up to 5Gbps for KVM function.

Input supports 1x HDMI port and 1x USB-C port with a USB-C charging port that can supply power to the USB-C device. The switcher features a virtual interaction function to automatically wake up the connected PC in standby mode, which can reduce the switching time. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the unique USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS, and Linux, with no driver required, and simple plug-and-play.

Featured Highlights

HDCP 2.3 and DP 1.4 compliant

Support Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.0

HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

Using only 1 set of keyboard, mouse, and monitor to control 2 computers

Support video fast switching and keyboard/mouse seamless switching

Each input port has an EDID emulator to provide the correct information for the PC

Support hot plug, disconnect ,or connect devices to the KVM at any time

Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands

Support auto switching

Input supports 1x HDMI port and 1x USB-C port

With USB-C charging port, supporting PD3.0 charging 100W

Advanced hardware/software design and production ensure zero latency

The integrated USB 3.0 ports allow you to share USB peripherals like printer, scanner, webcam and hard disk between computers with data transfer rate up to 5Gbp/s

Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.3
DP Compliance     DP 1.4
Video Bandwidth     18Gbps
Audio Latency     No Latency
Video Latency     No Latency
Video Resolution     Up to 4K@60Hz, 2K@60Hz/144Hz
IR Level     5Vp-p
IR Frequency     Fixed frequency 38KHz
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8/10/12bit
CEC     Support
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats     HDMI IN/OUT : LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD

L/R OUT: : PCM 2.0CH
ESD Protection     IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

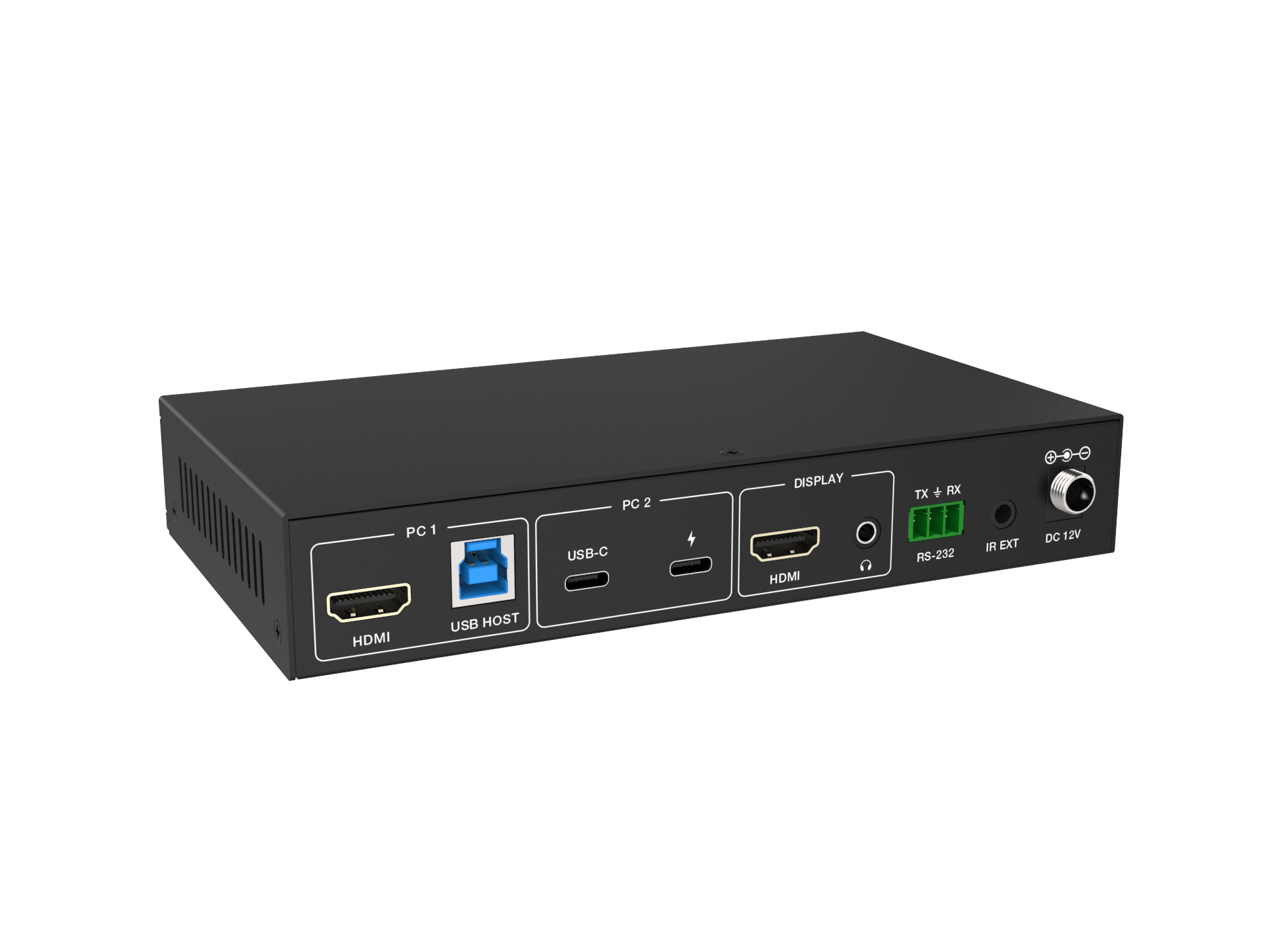

Connection
Input         1 x HDMI input [Type A, 19-pin female]

1x USB-C [AV signal input]

1x USB-C [Power input]
Output         1 x HDMI output [Type A, 19-pin female]

1 x L/R audio output [3.5mm Stereo Mini-jack]
Control         1 x RS-232 [3pin-3.81mm phoenix connector]

1 x IR EXT [3.5mm Stereo Mini jack]

1 x USB HOST [USB 3.0 Type B, 11-pin female]

4 x USB DEVICEs [USB 3.0 Type A, 13-pin female]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     175mm [W] x 100mm [D] x 30mm [H]
Weight     505g
Power Supply     Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption     Typical value: 7.8W, Standby mode: 0.6W
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature     -4 - 140°F / -20 - 60°C
Relative Humidity     20 - 90% RH (No condensation)
