4 Port 4K60 HDMI Seamless KVM Switcher /w Multiviewer

VLKV-H2041M

Data Sheet

User Manual

Product Inquiry Form

Product Description

This 4K60 4x1 Seamless UHD Video & USB 3.0 KVM Switcher was designed for the purpose of supporting higher output resolution (4K@60) for multiple sources on a single screen. It can combine up to four video signals onto a single UHD or HD displayer. The user can manage each input, and create combinations of the four inputs on a single display, as well as adjust the position of any input.

This product supports 8 display modes, within the mode range, users can freely switch 4-channel HD input signals. It can realize single screen display and multiview display on a single screen.

This device supports full range of input video resolutions up to 4K@60 (RB) and audio RCA /Optical de-embedding supported for external audio distribution systems.

Besides, the switcher can transmit USB 3.0 signal up to 5Gbps for KVM function. It also supports direct switching through buttons on the front panel, IR remote, and hotkey through keyboard/mouse connected to the special USB port. It provides a wide compatibility choice for different operating systems, such as Windows, Mac OS and Linux, no driver required and simple plug and play.

This device can be controlled via front panel buttons, IR remote, keyboard/ mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands.

Featured Highlights

  • HDCP 2.2 and HDCP 1.x compliant

  • Support 18Gbps uncompressed video bandwidth

  • Input and output resolutions support up to 4K2K@60Hz 4:4:4, as specified in HDMI 2.0b

  • Support LPCM, DD+, DTS audio pass-through, up to 7.1 audio channel

  • Seamless switching between input channels and combined multiple images on single UHD monitor

  • Up to 8 display modes: Single, PIP, PBP (1), PBP (2), Triple (1), Triple (2), Quad (1), Quad (2)

  • Seamless switching in single screen display mode

  • Fast switching in multiview display mode

  • Using only 1 set of keyboard, mouse and monitor to control 4 computers

  • Built-in 3-port USB 3.1 Gen 1 hub with SuperSpeed 5Gbps data transfer rates, allowing you to share USB peripherals like printer, scanner, webcam and hard disk between computers

  • Support multimedia, wireless keyboards and mouse

  • Audio de-embedding via analog and optical fiber audio ports

  • Support volume control and independent audio selection

  • Support OSD navigation for advanced setting

  • EDID management

  • Control via front panel buttons, IR remote, keyboard/mouse hotkeys, OSD menu navigation, Controller software, RS-232 commands

  • Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.0b
HDCP Compliance     HDCP 2.2 / 1.x
Video Bandwidth     18Gbps
Video Resolution     Up to 8K@60Hz, 4K@120Hz/144Hz, 1080P@240Hz
IR Level     5Vp-p
IR Frequency     Fixed frequency 38KHz
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8/10/12bit
Audio Formats     HDMI : PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, DTS, DTS-96/24, DTS High Res, DSD

Analog audio [3.5mm L/R] : PCM2.0

SPDIF (OPTICAL) : Dolby Digital/Plus, DTS 5.1, PCM2.0

Note: It does not support HBR audio.
ESD Protection     IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

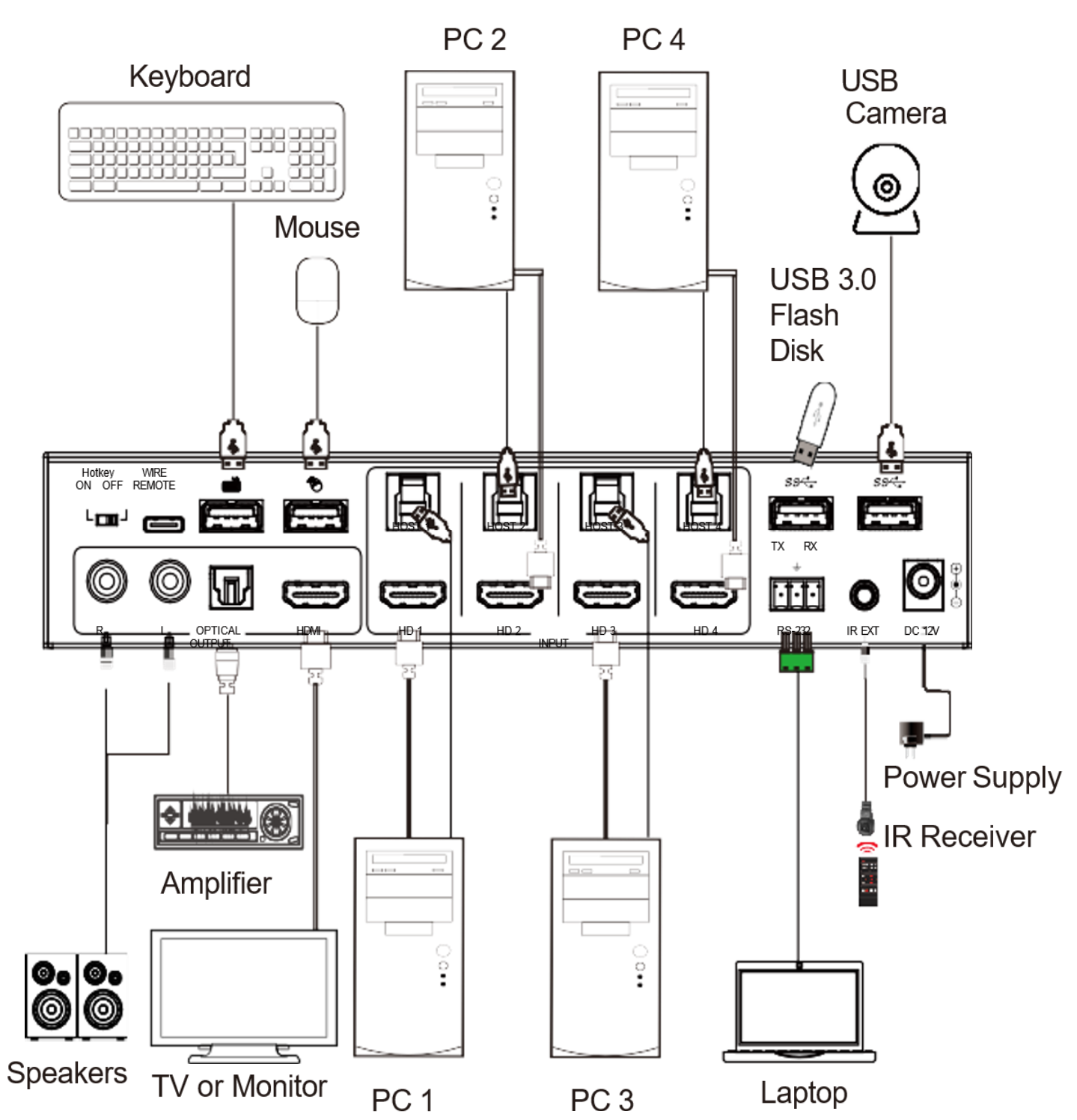

Connection
Input         4 x HDMI IN [Type A, 19-pin female]
Output         1 x HDMI OUT [Type A, 19-pin female]

1 x L/R OUTPUT [RCA]

1 x OPTICAL OUTPUT [S/PDIF]
Control         1 x RS-232 [3pin-3.81mm phoenix connector]

1 x IR EXT [3.5mm Stereo Mini jack]

4 x USB 3.0 HOST [USB Type B]

2 x USB 2.0 DEVICE [USB Type A]

3 x USB 3.0 DEVICE [USB Type A]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     220mm [W] x 100mm [D] x 44mm [H]
Weight     443g
Power Supply     Input: AC 100 - 240V 50/60Hz

Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified)
Power Consumption     18.48W (Max)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature     -4 - 140°F / -20 - 60°C
Relative Humidity     20 - 90% RH (No condensation)
