2 Port 4K60 HDMI KVM Switcher

VLKV-H2021

Data Sheet

User Manual

Product Description

Introducing our 2x1 KVM Switcher with hotkey switching functionality for seamless control. This versatile switcher supports resolutions up to 4K@60Hz 4:4:4 8bit and transmits USB 3.0 signals at speeds up to 5Gbps for efficient KVM operations.

Enhanced with a virtual interaction function, the switcher automatically wakes up connected PCs in standby mode, minimizing switching time. Enjoy the flexibility of direct switching through front panel buttons, an IR remote, or hotkeys via a keyboard/mouse connected to the dedicated USB port.

Designed for user convenience, it offers wide compatibility across various operating systems, including Windows, Mac OS, and Linux. No drivers are required – plug and play for a hassle-free experience.

Featured Highlights

  • HDCP 2.3 compliant

  • Support Ultra-wide Screen, resolution up to 4K@60Hz, 2K@60Hz/144Hz as specified in HDMI 2.1

  • HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through

  • Using only 1 set of keyboard, mouse, and monitor to control 2 computers

  • Support video fast switching and keyboard/mouse seamless switching

  • Each input port has an EDID emulator to provide the correct information for the PC

  • Support hot plug, disconnect, or connect devices to the KVM at any time

  • Switching via front panel buttons, keyboard/mouse hotkeys, IR remote control, and RS-232 commands

  • Support auto switching

  • Advanced hardware/software design and production ensure zero latency

  • The integrated USB 3.0 ports allow you to share USB peripherals like printers, scanners, webcam, and hard disk between computers with data transfer ratess up to 5Gbp/s

  • Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.0
HDCP Compliance     HDCP 2.3
Video Bandwidth     18Gbps
Audio Latency   No Latency
Video Latency     No Latency
Video Resolution     Up to 4K@60Hz, 2K@60Hz/144Hz
IR Level     5Vp-p
IR Frequency     Fixed frequency 38KHz
Color Space     RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth     8/10/12bit
HDR    HDR, HDR10, HDR10+, Dolby Vision, HLG
CEC    Support
Audio Formats     HDMI IN/OUT:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos,

DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master

Audio, DTS:X, DSD

L/R OUT:

PCM 2.0CH
ESD Protection     IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

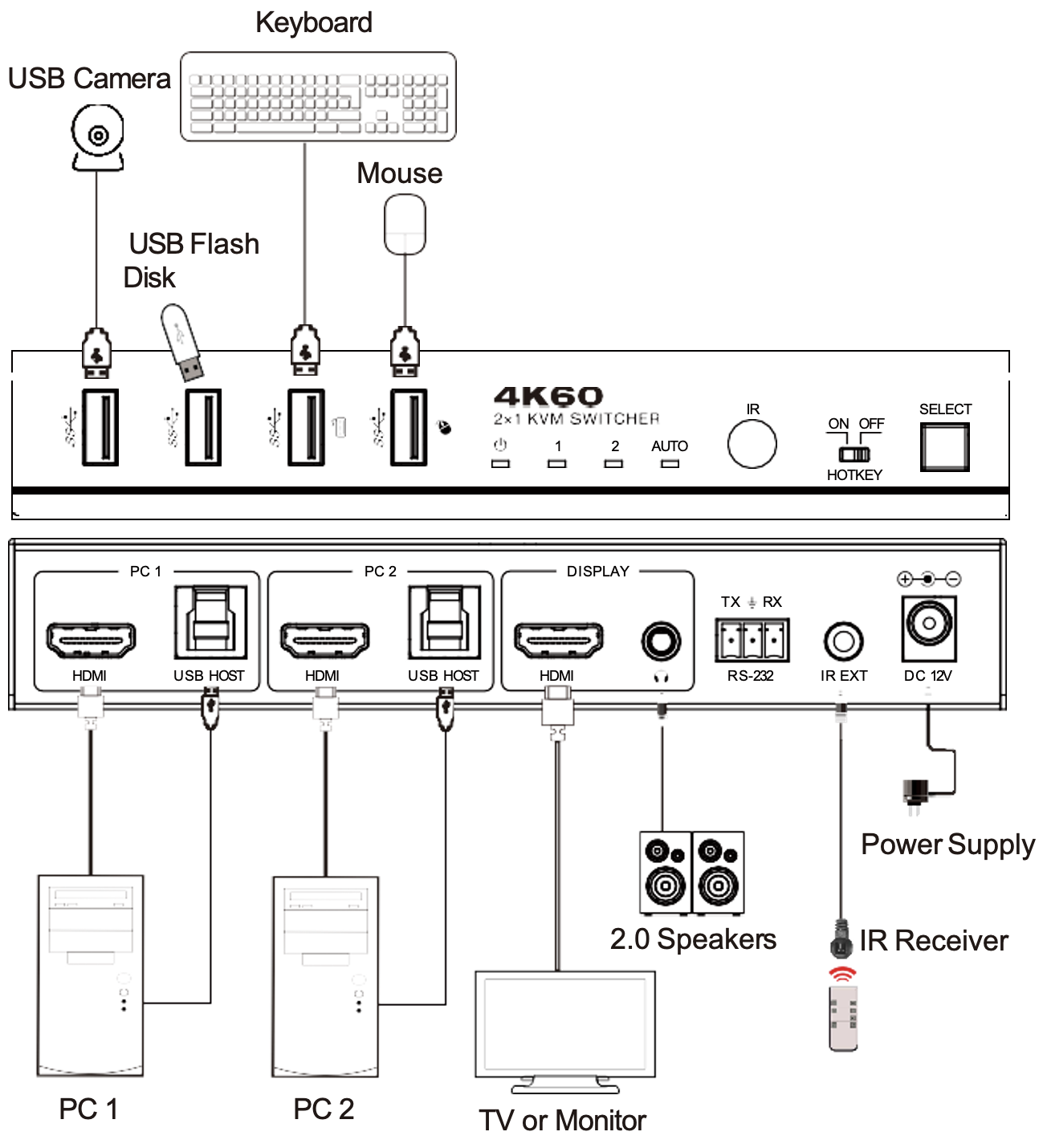

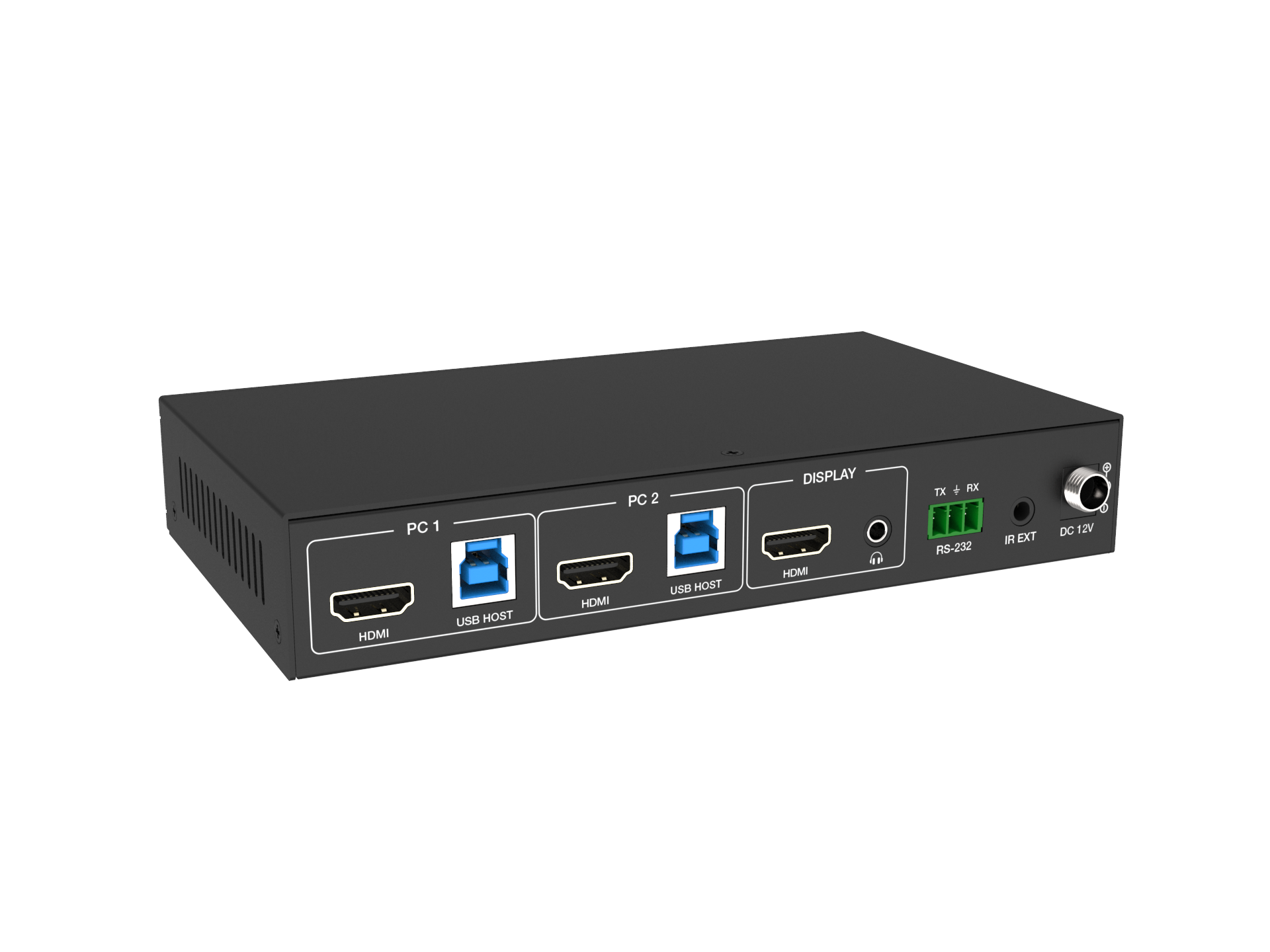

Connection
Input         2 x HDMI input [Type A, 19-pin female]
Output         1 x HDMI output [Type A, 19-pin female]

1 x L/R audio output [3.5mm Stereo Mini-jack]
Control ports         1 x RS-232 [3pin-3.81mm phoenix connector]

1 x IR EXT [3.5mm Stereo Mini-jack]

2 x USB HOST [USB Type B]

4 x USB DEVICES [USB Type A]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     175mm [W] x 100mm [D] x 30mm [H]
Weight     506g
Power Supply     Input: AC 100 - 240V 50/60Hz

Output: DC 12V/1A (US/EU standard, CE/FCC/UL certified)
Power Consumption     Typical value:5.16W

Standby mode: 0.6W
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
