HDBaseT 3.0 4K@60Hz 4:4:4 HDMI 2.0 Transceiver with USB 100m 18Gbps
VLPT-42MCSDH-RX
Product Description
Next-Generation HDBT 3.0 Extender for Uncompressed 4K Video
Experience seamless, high-quality video transmission with our HDBT 3.0 Extender, built on the latest HDBT 3.0 platform. Designed for professional AV applications, this cutting-edge extender delivers uncompressed HDMI 2.0 video at 4K@60Hz 4:4:4 8-bit over 100m of Cat 6a cable, ensuring pristine image quality with zero latency. Ideal for conference rooms, control centers, and high-performance AV environments.
Featured Highlights
Versatile Transceiver Design
Configurable as Transmitter or Receiver – Seamlessly switch between transmitter and receiver modes at any time for flexible installation.
Uncompressed 4K Video Performance
Pristine 4K@60Hz 4:4:4 Transmission – Delivers uncompressed HDMI 2.0 video with full HDR support, including Dolby Vision and HDR10+.
Seamless KVM & Audio Integration
USB 2.0 & Analog Audio Pass-Through – Enables responsive KVM functionality with bidirectional audio transmission.
Local HDMI Monitoring
HDMI Loop-Out Support – Provides a local HDMI output when operating in transmitter mode for real-time monitoring.
Advanced Audio Processing
Audio De-Embedding – Extracts and routes audio independently at both transmitter and receiver ends.
High-Speed Network Pass-Through
1G/100Mbps Adaptive Network Transmission – Ensures reliable and transparent network connectivity.
Comprehensive Signal Extension
Multi-Signal Support – Extends IR, RS232, and other control signals for seamless system integration.
Flexible Power Options
Two-Way PoC/PoH Support – Requires only one power adapter at either end, simplifying
Specifications
| Technical | |||
|---|---|---|---|
| Video Input | Transmitter mode: 1 x HDMI Receiver mode: 1 x HDMI, 1 x HDBT |
||
| Input Video Signal | HDMI with 4K@60 YUV 4:4:4, HDCP 2.2 | ||
| Video Output | Transmitter: 1 x HDMI, 1 x HDBT Receiver: 1 x HDMI |
||
| Output Video Signal | HDBT, HDMI | ||
| Input/Output Resolutions |
4096 x 21602,5,6,7,8(YUV 4:4:4), 3840 x 21602,5,8(YUV 4:4:4), 2560x16008, 2560x14408, 1920x12008, 1920x1080P8, 1680x10508, 1600x12008, 1600x9008, 1440x9008, 1366x7688, 1360x7688, 1280x10248, 1280x9608, 1280x8008, 1280x7688, 1280x7208, 1024x7688, 800x6008 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz |
||
| Audio Input | 1x analog audio (pass-through) | ||
| Audio Output | 1x analog audio (pass-through) 1x analog audio (audio de-embedding) |
||
| Audio Format | • Audio In/Out: Stereo • HDMI In/Out: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X • HDBT: Same as HDMI In/Out |
||
| Maximum Pixel Clock | 600MHz | ||
| Maximum Data Rate | 18Gbps | ||
| USB Spec | USB 2.0 and backward compatible with USB 1.1/1.0 | ||
| USB Port | 1x USB 2.0 host port (type-B) 4x USB 2.0 device ports (type-A) |
||
| Control Method | RS232 | ||
| Transmission Distance | • 1080P: 100m • 4K@60Hz 4:2:0: 100m • 4K@60Hz 4:4:4: 100m over Cat 6a/7 cable |
||
| Mechanical | |||
| Operating Temperature | 0°C to 45°C (32°F to 113°F) | ||
| Storage Temperature | 20°C to 70°C (-4°F to 158°F) | ||
| Humidity | 10% to 90%, non-condensing | ||
| ESD Protection | N/AHuman-body Model: ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) | ||
| Power Supply | DC12V 3A | ||
| Power Consumption (Max) | TBD | ||
| Device Dimension(W x H x D) | 215mm x 25mm x 120mm/8.46” x 0.98” x 4.72” | ||
| Product Net Weight | 0.60kg/1.32lbs | ||
Product Inquiry Form
Related Products
-
![]()
VLPT-42H100
4x2 Multi-format Collaboration Switch with HDMI/HDBT3.0 330ft Extension
-
![]()
VLPT-51HT70
5x1 HDMI 2.0b (18Gbps) Presentation Switcher with HDBaseT output 70m (230ft) Extension
-
![]()
VLPT-52HT70U
5x2 HDMI/DP/USB-c (18Gbps) Presenter HDBaseT output 70m (230ft) Extension
-
![]()
VLPT-52K2HD
5x2 HDMI 2.0 Seamless Presentation Switcher with KVM/Dual HDMI output
-
![]()

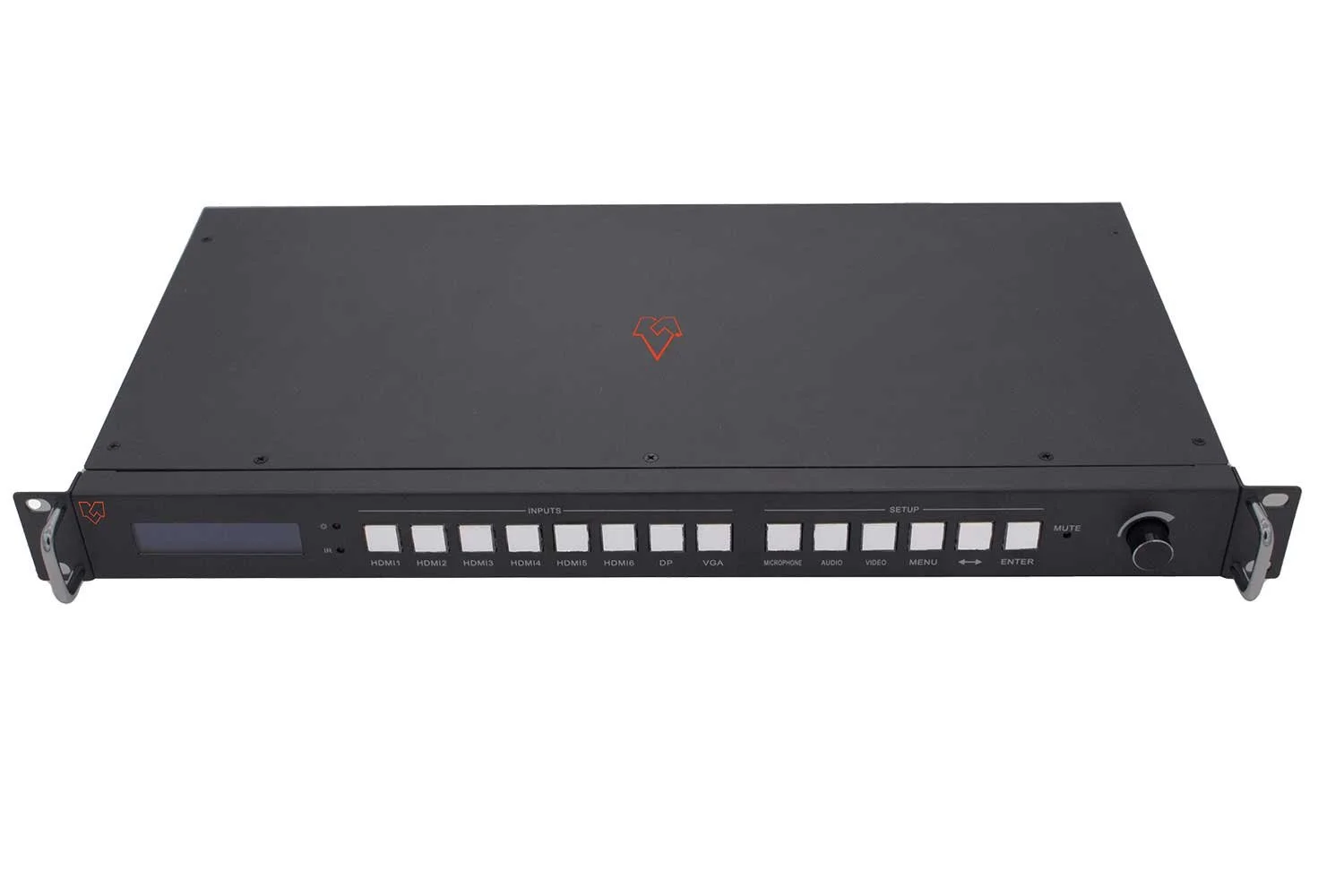

VLPT-82HT70V
