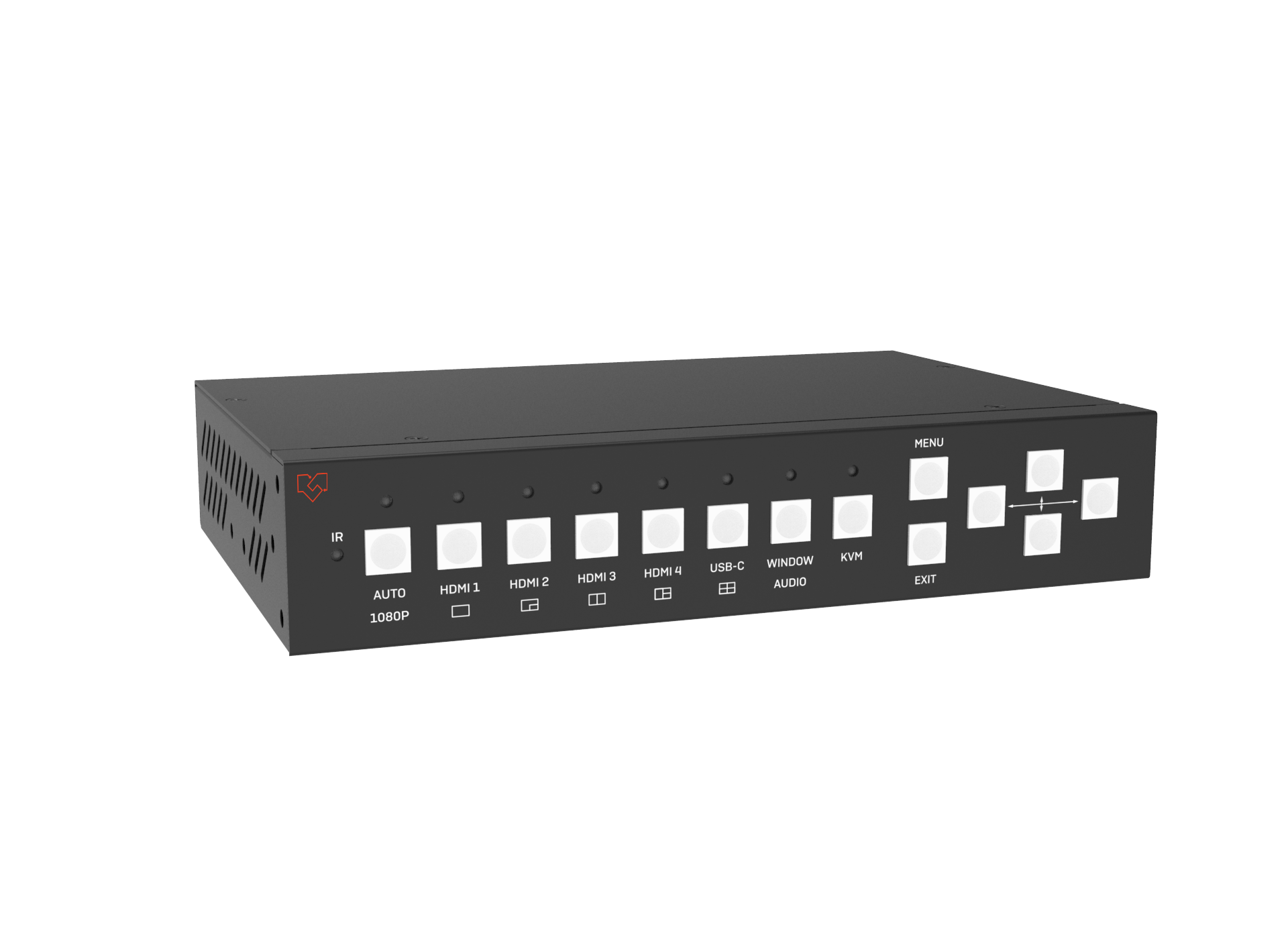

5x2 HDMI 2.0 Seamless Presentation Switcher with KVM/Dual HDMI output
VLPT-52K2HD
Data Sheet
User Manual
Product Description
The 5x Inputs and 2x Outputs seamless multiview video switcher with USB-KVM control was developed for multiple sources displayed on a single screen. It supports high input and output resolutions (up to 3840 x2160@60Hz). The switcher can combine up to four video signals onto a single UHD or HD displayer. The switcher supports 4x USB-Type B inputs, which are connected to the PC, and 2x USB-Type A outputs, which are connected to the Mouse and Keyboard. Users can easily manage the switcher via the front panel buttons, IR remote, RS-232, or TCP/IP commands. The HDMI B mirror output port can be used for audio amplifier, video capture (with HDMI to USB dongle), or remote display (with HDBaseT Extender). This multi-functional product can be widely applied in various fields, such as Home Theatre, Video Conference, Security Monitoring, Presentation and Broadcasting, Teaching Systems, Financial Stock Analysis, Game E-Sports, and Medical Display.
Featured Highlights
HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant
Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
Multiple output resolutions from 720p to 4K60
4x HDMI, 1x USB-C (AV only) inputs and 2x HDMI mirror outputs
Up to 5 display modes: SINGLE, PIP, PBP, 3xWIN, 4xWIN
Seamless switching on single display mode
Fast switching on multiview display mode
4x USB KVM switcher with 2 USB devices for Mouse/Keyboard
Supports USB Roaming, hot-key to switch input
Supports volume control and independent audio selection
Supports LPCM, AC3, DD+, DTS, DTS-HD, up to 7.1 audio channel
Supports OSD navigation for advanced setting
EDID management
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDCP 2.2 / 1.4 |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz with 24-bit RGB/YCBCR 4:4:4 |
| Audio Formats | LPCM, AC3, DD+, DTS, DTS-HD Up to 7.1 channel |
| ESD Protection | Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection | |
| Input ports | 4 x HDMI IN [Type A, 19-pin female] 1 x USB-C 4 x USB-B (Host) |
| Output ports | 2 x HDMI OUT [Type A, 19-pin female] 2 x USB-A (Device) 1 x L/R AUDIO OUT [3.5mm Jack] 1 x Toslink digital audio |
| Control ports | 1 x RS232 [4-pin phoenix connector] 1 x LAN [RJ45 connector] 1 x SERVICE [USB-A] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 219mm [W] x 146mm [D] x 44mm [H] |
| Weight | 1.2kg |
| Power Supply | DC 12V/3A |
| Power Consumption | 15W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (No condensation) |
