4x2 Multi-format Collaboration Switch with HDMI/HDBT3.0 330ft Extension

“The Doug”

VLPT-42H100


Data Sheet

User Manual

Product Description

Introducing our innovative Collaboration Switch, a powerful solution designed to enhance productivity and streamline the multimedia experience. This exceptional product consists of a cutting-edge Host Device and a Remote Device, working together seamlessly to deliver unmatched performance.

With its versatile design, the Collaboration Switch offers a wide range of connectivity options. Equipped with USB-C and HDMI inputs, it effortlessly accommodates up to four host PCs, providing a centralized hub for your devices. Moreover, it can connect up to five peripheral devices, such as cameras, microphones, speakerphones, keyboards, and mice, all through USB 2.0 connectivity. This enables you to integrate various tools into your workflow, maximizing efficiency effortlessly.

In addition to its impressive host PC and peripheral device support, the Receiver of our Collaboration Switch goes above and beyond by offering local HDMI+USB input functionality. This feature allows you to effortlessly connect and utilize your devices, enabling seamless collaboration and flexibility within your workspace.

Furthermore, the host and remote of our Collaboration Switch provide exceptional audio capabilities. They support audio de-embedding, allowing you to route audio to an analog balanced or unbalanced output. This ensures high-quality sound reproduction, enriching your multimedia experience.

In conclusion, our Collaboration Switch is the ultimate solution for those seeking unparalleled connectivity, flexibility, and audio performance. Empower your productivity, simplify your multimedia setup, and embrace seamless collaboration with this remarkable product. Upgrade your workspace today and experience a new level of efficiency and convenience.

Featured Highlights

  • 4x2 Collaboration Switch with HDMI/HDBT 3.0 330ft(100m) extension

  • HDMI 2.0b, HDCP 2.3, 18Gbps

  • HDBaseT 3.0 4K@60Hz up to 330ft(100m)

  • Supports HDR, HDR10+, Dolby Vision LLM, HLG

  • Host: 1x USB-C, 3x HDMI inputs, 3x USB 2.0 hosts and 3x USB 2.0 devices

  • Remote: 1x HDBT, 1x HDMI input, 1x USB 2.0 hosts and 2x USB 2.0 clients

  • USB-C supports ALT-DP mode for A/V, USB 2.0 data, and power charging up to 60 watts

  • 4K to 1080p downscaling features on all HDMI outputs, no frame rate conversion

  • Host/Remote both support analog audio de-embedding

  • CEC and RS-232 external display control on both host and remote

  • EDID management

  • Host supports POE/PSE, Remote supports POE/PD (Remote doesn’t have an external DC power supply)

  • The front panel button, RS-232, and TCP/IP control (Host TCP/IP port for API and Web GUI)

  • The host half rack size for easy installation

Specifications

Technical
HDMI Compliance     HDMI 2.0b/ HDCP 2.3
Video Bandwidth     18 Gbps
Video Compression Standard     HDBT 3.0 (Uncompressed)
Audio/ Video Latency     Zero
Input and Output Video Resolutions     640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz,1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz,1600x1200p60Hz, 1920x1200p60Hz,

720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59)

1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59),1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23),1920x1080p24Hz (1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60)



3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
Color Depth     8/10/12bit
Color Space     RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
HDR     HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Support     USB-C/HDMI/HDBT:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Audio Out [Analog audio, Balanced/unbalanced 2CH, Max output level 2VRMS]
Transmission     HDMI 3M

USB-C 2M

HDBT 100M 4K @Cat6A
LED Indicators Color     Input LED: Green

Input SEL: Black Button with Green backlit
IR Level/ Frequency     12Vp-p/ 20K-60KHz
Mechanical
Housing Material     Front panel: Aluminum; Rear case: Metal Enclosure
Color     Black
Dimensions     Host: W x D x H: 220mm x 150mm x 44mm

Remote: W x D x H: 140mm x 105mm x 21.5mm
Weight    Host: 1.16Kg; Remote: 424g
Power Supply    Input: AC100 - 240V 50/60Hz

Output: DC 24V/6A (US/EU standard, CE/FCC/UL certified)
Power Consumption     100W (Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature    -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity    20%~90% RH (non-condensation)
Interface/ Connections

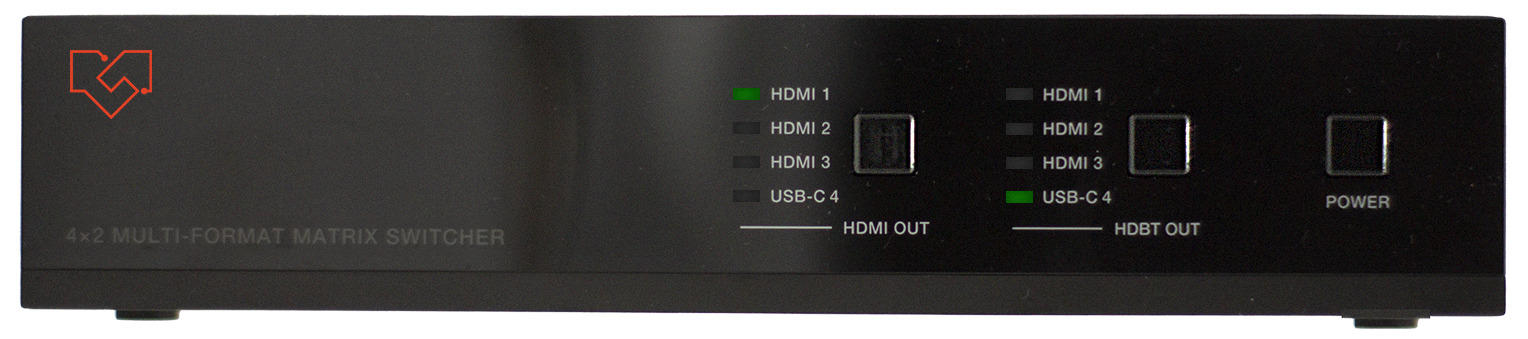

Host - Front Panel     1x IR Receive Window

4x HDMI OUT SEL LED [Green color]

1x HDMI OUT SEL Button [Black Button with Green backlit]

4x HDBT OUT SEL LED [Green color]

1x HDBT OUT SEL Button [Black Button with Green backlit]

1x POWER Button [Black Button with Green backlit]
Host - Rear Panel     3x USB HOST [Type B, 4-pin female]

3x USB DEVICE [USB Type A, 4-pin female]

[VBUS max 5V/500MA, USB device ports output power only when USB Host is present]

1x IR IN [3.5mm audio jack, 12V level]

1x IR OUT [3.5mm audio jack, 12V level]

1x USB-C IN [Type A, 24-pin female] [Alt-mode, DP, USB 2.0, 60W charging]

3x HDMI IN [Type A, 19-pin female]

1x HDMI OUT [Type A, 19-pin female]

1x HDBT OUT [RJ45 connector] [48V POE/PSE]

1x AUDIO OUT [5-pin phoenix, 3.81MM pitch]

[Analog audio out, Balanced/unbalanced 2CH, Max output level 2VRMS]

1x TCP/IP [RJ45 connector]

1x RS-232 [3-pin phoenix, 3.81MM pitch]

1x DC Locking Connector [24V/4A]

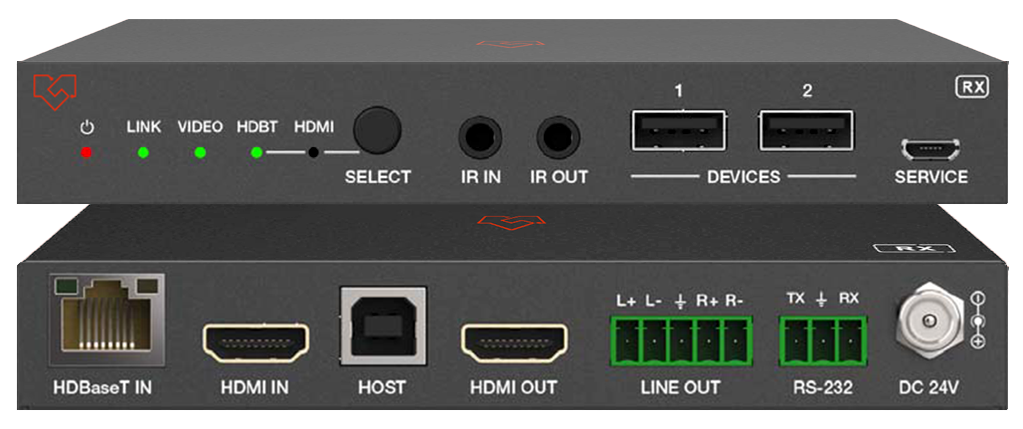

Remote- Front Panel     1x POWER LED [Red SMT]

1x LINK LED [Green SMT]

1x VIDEO LED [Green SMT]

1x HDBT LED [Green SMT]

1x HDMI LED [Green SMT]

1x SELECT Button [HDBT/HDMI input select]

1x IR IN [3.5mm audio jack, 12V level]

1x IR OUT [3.5mm audio jack, 12V level]

2x USB DEVICE [USB Type A, 4-pin female]

[VBUS max 5V/500MA, USB device ports output power only when USB Host is present]

1x Service [Micro USB, 5-pin female]
Remote- Rear Panel     1x HDBT IN [RJ45 connector] [48V POE/PD] 1x HDMI IN [Type A, 19-pin female]

1x USB HOST [Type B, 4-pin female]

1x HDMI OUT [Type A, 19-pin female]

1x LINE OUT [5-pin phoenix, 3.81MM pitch]

[Analog audio out, Balanced/unbalanced 2CH, Max output level 2VRMS]

1x RS-232 [3-pin phoenix, 3.81MM pitch]

1x DC Locking Connector [24V/1A,19MM]
Shipping Group
Inside the Package     Host, Remote, Remote Controller, Power Supplier
