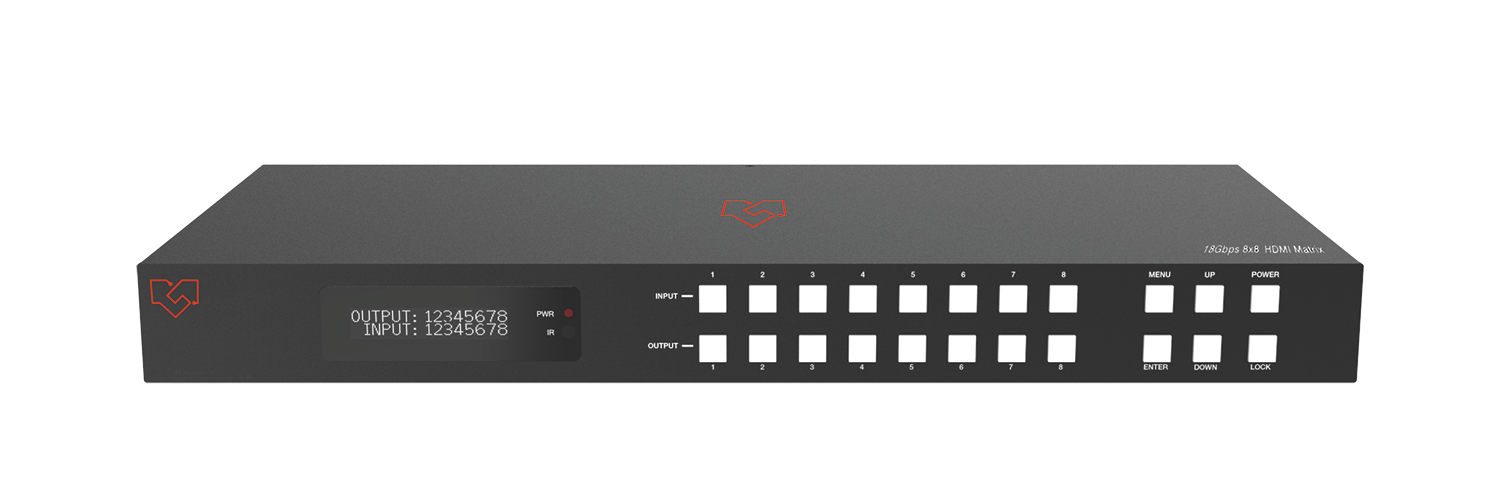

8x8 HDMI 2.0 Matrix 18Gbps
VLMX-0808E
Data Sheet
User Manual
Product Description
This 8x8 HDMI Matrix supports the transmission of video up to 4k2k @60Hz (4:4:4) and multi-channel high-resolution digital audio from eight (8) HDMI sources to eight (8) HDMI displays. Audio de-embedded to analog and coaxial audio is supported by eight (8) HDMI output ports. While the HDMI output ARC function is enabled, the ARC audio from the HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8x8 HDMI Matrix supports 4k2k to 1080p downscale independently. Control is via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Featured Highlights
HDMI 2.0b, HDCP 2.2 compliant
Up to 4K / 2K @60Hz with 24bit RGB / YCbCr (4:4:4)
HDR, HDR10, HDR10+, Dolby Vision pass-through
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Each output supports 4K to 1080p downscale independently
Each output supports digital and analog audio de-embedded
Advanced EDID management
Source and Display control via CEC
Front panel button, IR, RS-232, TCP/IP and Web GUI control
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 and HDCP 1.4 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@50/60Hz (4:4:4) | ||
| Color Space | RGB, YCbCr 4:4:4/4:2:2/4:2:0 | ||
| Color Depth | 8-bit, 10-bit, 12-bit | ||
| HDMI Audio Formats (Pass-through) | LPCM 2/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X | ||
| Coax Audio Formats | LPCM 2.0, Dolby Digital / Plus, DTS 5.1 | ||
| L/R Audio Formats | PCM2.0 | ||
| HDR formats | HDR10,HDR10+,Dolby Vision, HLG | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||
| Input Ports | 8×HDMI Type A [19-pin female] 1×IR EXT [3.5mm Stereo Mini-jack] |
||
| Output Ports | 8×HDMI Type A [19-pin female] 8×Coax Audio (RCA) 8×L/R Audio [3.5mm Stereo Mini-jack] |
||
| Control Ports | 1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9] |
||
| Mechanical | |||
| Housing | Metal enclosure | ||
| Color | Black | ||
| Dimensions | 440mm (W)×200mm (D)×44.5mm (H) | ||
| Weight | 2.8kg | ||
| Power Supply | Input: AC 100- 260V 50/60Hz Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 43W | ||
| Operating Temperature | -10°C ~ 45°C / 14°F ~ 113°F | ||
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
| Resolution / Cable Length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of the “Premium High-Speed HDMI” is highly recommended. |
|||
