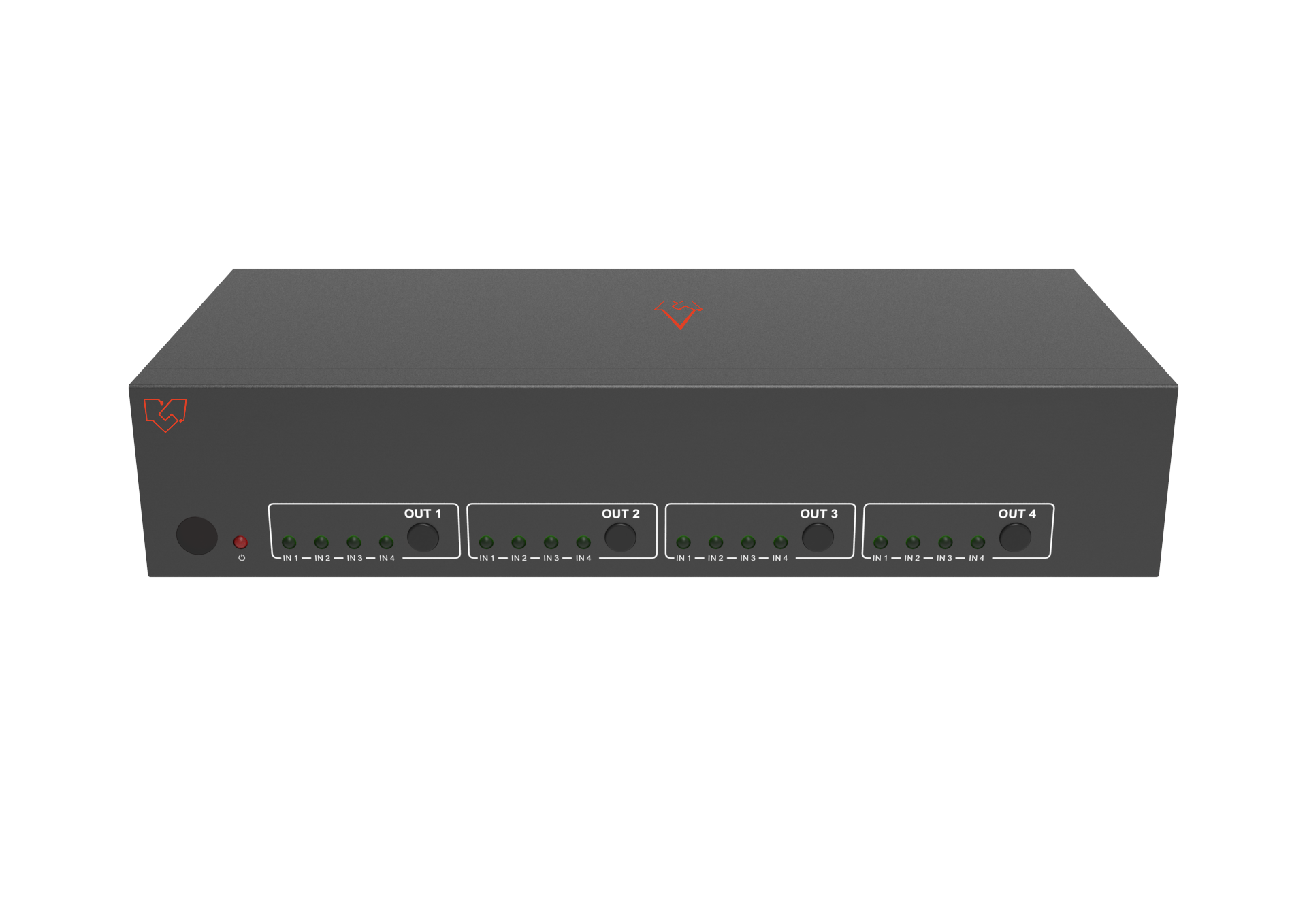

4x4 HDMI 2.0 Matrix with output 4K to 1080p downscaling 18Gbps
VLMX-0404
Data Sheet
User Manual
Product Inquiry Form
Product Description
The 4x4 HDMI Matrix supports the transmission of the video signal (up to 4K2K@60Hz YCbCr 4:4:4) with multichannel digital audio from up to four high-definition sources to up to four HDMI outputs. Each output supports more downscale functionality. It can display the same or different screen on four displays (the user can choose the display screen for any signal source).
Also, the product has a distribution mode and a switching mode.
Featured Highlights
HDCP 2.2 compliant
Up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
HDR, HDR10, HDR10+, Dolby Vision pass-through
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
Supports 4K -> 1080P Downscaler
Supports advanced EDID management
Flexible control via panel or IR remote control
Specifications
| Technical | |
|---|---|
| HDCP Compliant | HDCP 2.2 / 1.x |
| Video Bandwidth | 594MHz / 18Gbps |
| Video Resolution | 480i ~ 1080p 50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit, 10-bit, 12-bit (4K2K@60Hz YCbCr 4:2:2 / 4:2:0) |
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Inputs | 4×HDMI Type A [19-pin female] 1×IR Receiver Window 1×Micro USB [RJ45] |
| Outputs | 4×HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 220mm(W)×205mm(D)×19mm(H) |
| Weight | 535g |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 11.04W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
