Audio De-embedder HDMI 2.0 18Gbps

VLHA-DEM

Data Sheet

User Manual

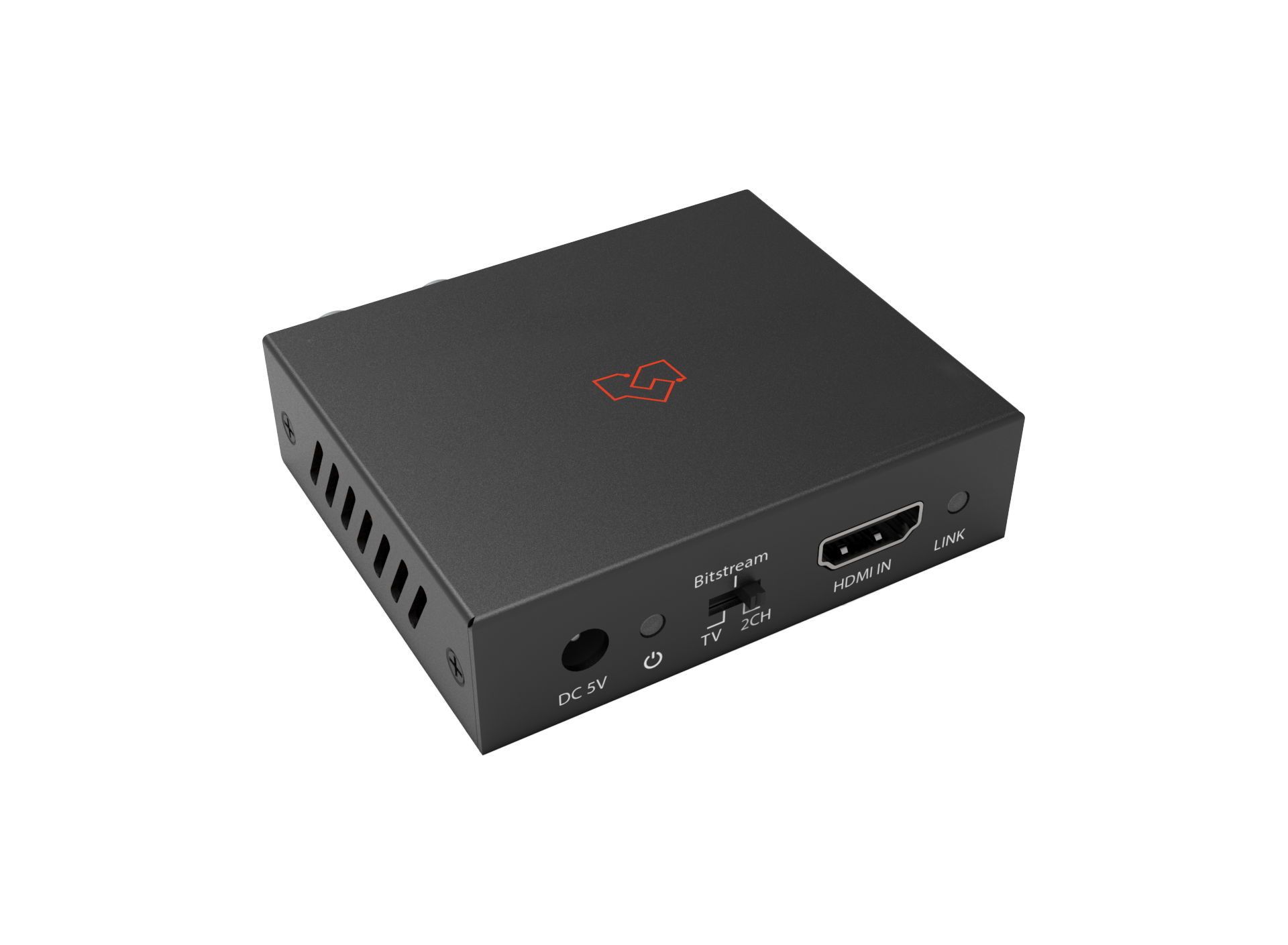

Product Description

The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI-compliant source to digital optical or analog stereo L/R audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass-through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, and DTS-HD Master Audio, with audio sampling rate up to 192 kHz. HDCP2.2and CEC bypass is supported.

Featured Highlights

  • HDMI 2.0b (18Gbps), HDCP 2.2, and DVI compliant

  • Video resolutions up to 4K2K@50/60Hz (YUV444)

  • Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio

  • Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH

  • Supports HDMI High Bit Rates (HBR) audio pass-through

  • Audio sample rates up to 192kHz

  • 10bits HDR (High Dynamic Range) pass-through

  • Supports CEC bypass

Specifications

Technical
HDCP Compliance     HDCP2.2and HDCP 1.4
Video Bandwidth     18Gbps
Video Resolution   Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P3D@60Hz
Color Depth     10-bit, 12-bit
Color Space     RGB, YCbCr 4:4:4, YCbCr 4:2:2
HDMI Audio Formats (Pass-through)     LPCM 2/5.1/7.1 CH, Dolby Digital, DTS5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats     LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH
L/R Audio Formats     Analog Stereo 2CH
ESD Protection     Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
Connection
Inputs         1x HDMI TypeA [19-pin female]
Outputs         Ix HDMI Type A[19-pin female]

1x L/R Audio Out [3.5mm Stereo Mini-jack]

1x Optical Out[S/PDIF]
Mechanical
Housing     Metal Enclosure
Color     Black
Dimensions     73.5mm [W] x60.7mm [D] x17mm [H]
Weight     130g
Power Supply     Input: AC100 - 240V 50/60Hz

Output: DC 5V/1A

(US/EU standards, CE/FCC/UL certified)
Power Consumption     1W(Max)
Operating Temperature     0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature     -20°C ~ 60°C / -4°F ~ 140°F
Relative Humidity     20 - 90% RH (No condensation)
