eARC Audio Adapter HDMI 2.0
VLHA-ERAD
Data Sheet
User Manual
Product Description

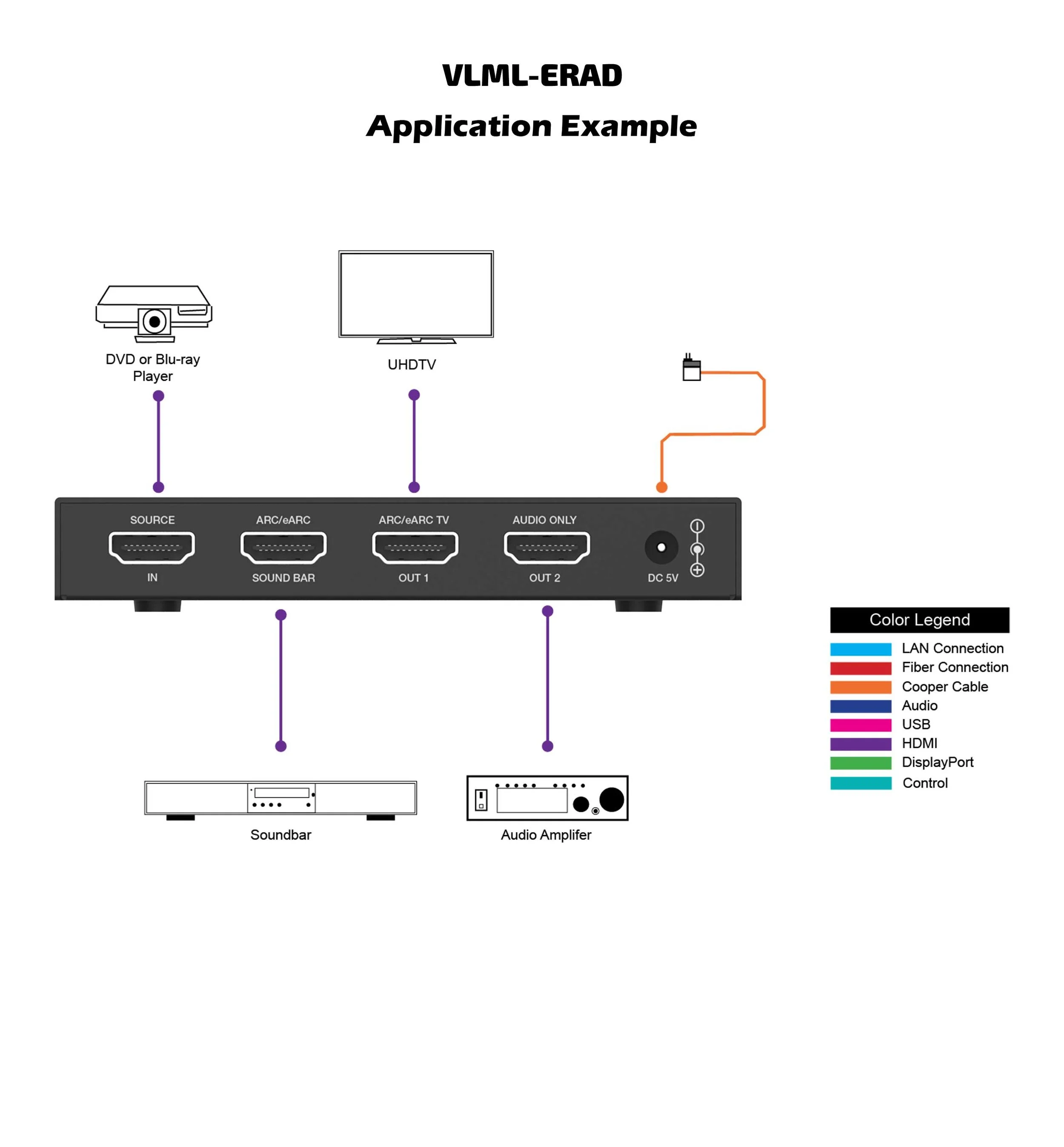

This 4K HDMI ARC/eARC Audio adapter can output Dolby Atmos audio from an external HDMI source to eARC/ARC sound systems. Since compliant with audio formats such as LPCM, Dolby True HD, and DTS-HD Master Audio, this adapter is a perfect solution for connecting SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers. It also provides a dedicated HDMI output port for outputting audio only when connecting with legacy AVR without eARC/ARC function.
Featured Highlights
HDMI 2.0b and HDCP 2.3 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4
Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through
Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True
HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Perfect solution for SONOS ARC/BOSE 500/BOSE 700 Soundbars and other eARC/ARC audio/video receivers
Dedicated HDMI port for outputting audio only when connecting with legacy AVR without eARC/ARC function
Built-in Equalizer, Retiming, and Driver
Auto EDID management
Compact design for easy and flexible installation
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.3 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz with 24-bit RGB/YCbCr 4:4:4 |
| Color Depth | 8-bit,10-bit,12-bit |
| Color Space | RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| HDMI Audio Format | PLPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Connection | |

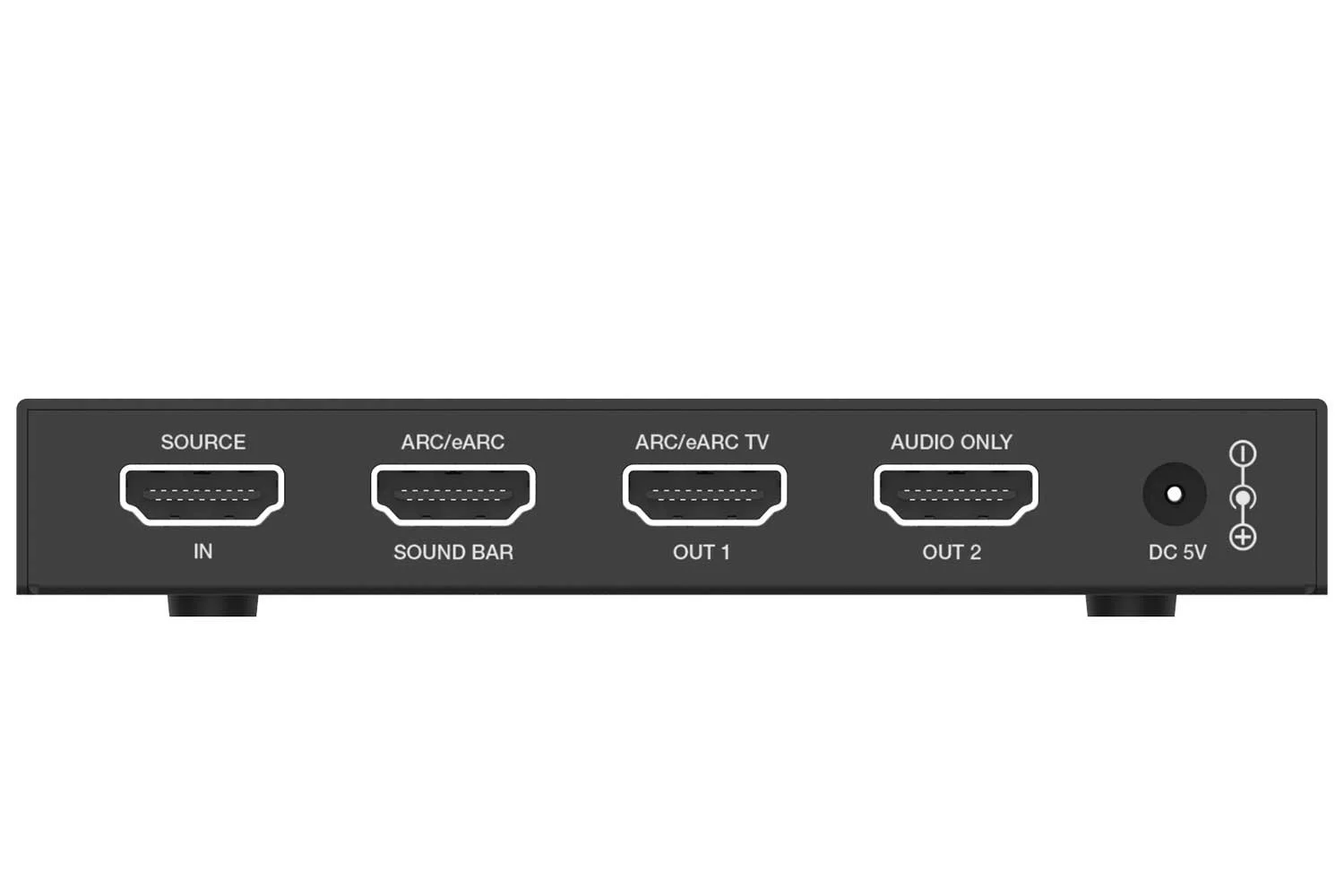

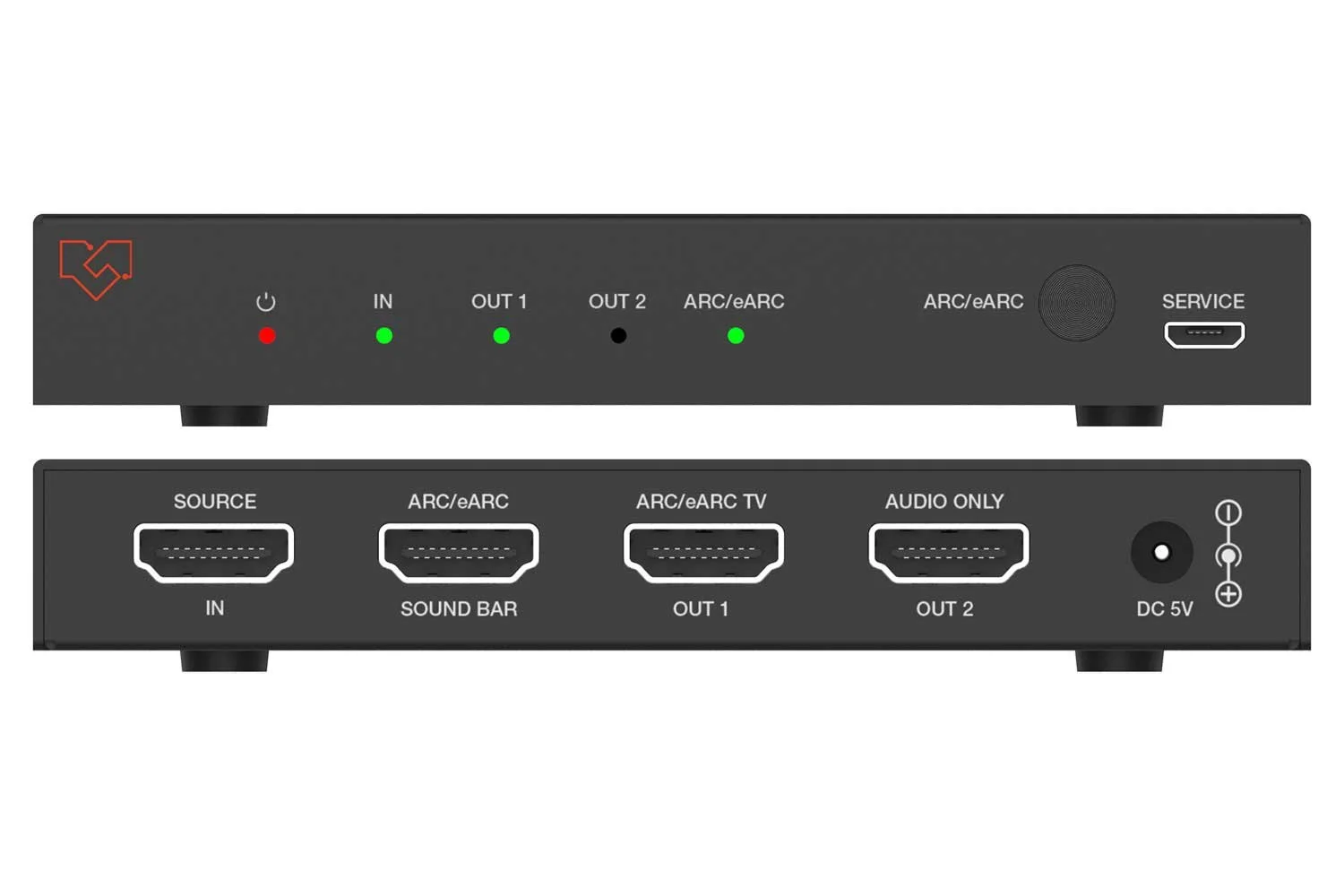

| Input | 1×HDMI IN [Type A, 19-pin female] |
| Output | 1×HDMI SOUND BAR [Type A, 19-pin female] 2×HDMI OUT [Type A, 19-pin female] |
| Control | 1×SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm (W) × 70mm (D) × 16mm (H) |
| Weight | 210g |
| Power Supply | DC 5V/1A |
| Power Consumption | 2.28W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
