2x1 HDBaseT 2.0 4k@60Hz 4:4:4 USB-C/HDMI 2.01-Gang Wall Plate w/Auto- switching, POC with RX White 150m 18Gbps
VLWP-UHCI150-TR
Data Sheet
User Manual
Product Description

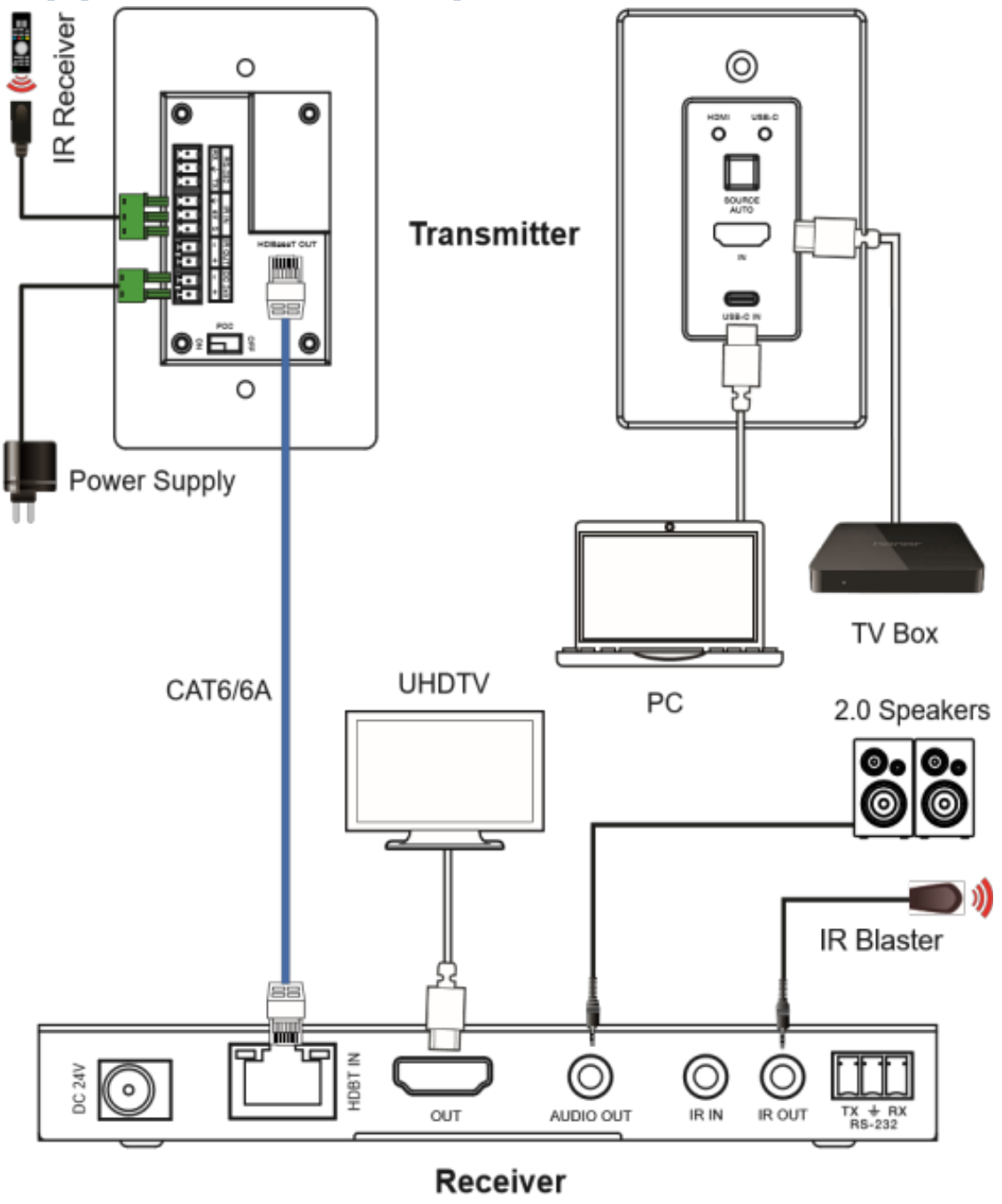

The VLWP-UHCI150-TR extends HDMI/USB-C signals up to 150m/492ft for 1080P@60Hz, or 120m/394ft for 4K2K@60Hz (4:4:4) via a single CAT6/6A cable. This single gang wall-plate transmitter features one HDMI input and one USB-C input port, supporting manual and automatic switching modes. The receiver features one HDMI output and one 3.5mm de-embedding audio output. It supports bi-directional PoC and bi-directional IR, RS-232 signal transmission. This multi-functional extender can be used in applications such as Enterprise Video Conferencing , Education , Command and Control and more.
Featured Highlights
HDMI 2.0 , HDCP 2.2 compliant

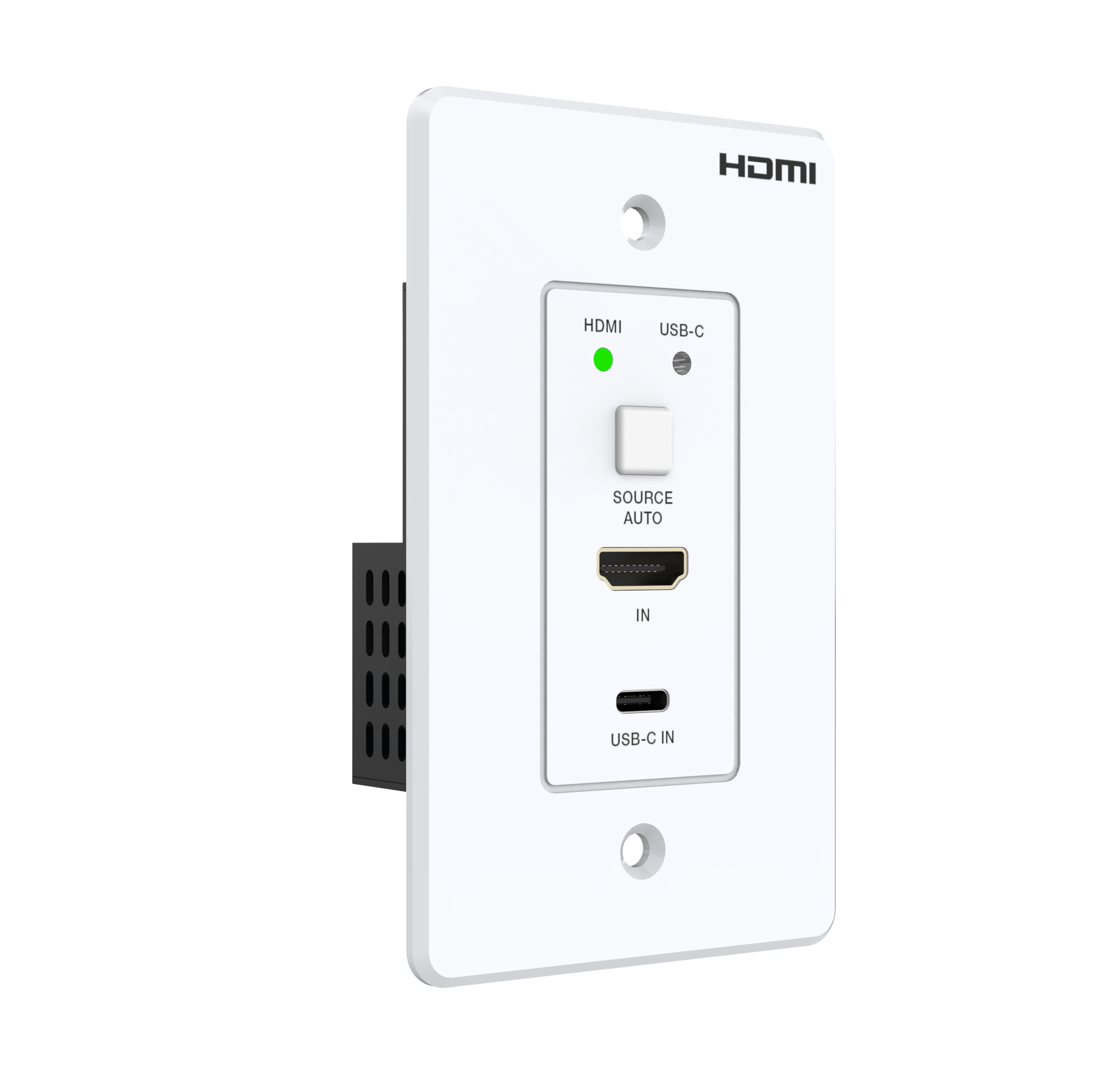

Single gang US size wall plate supports two inputs: 1× HDMI and 1× USB-C
Resolution up to 4K2K@60Hz 4:4:4, 18Gbps
Supports both auto switching and manual switching
The maximum transmission distance via CAT6/6A cable is up to:
120m/394ft for 4K2K@60Hz 4:4:4 signal
150m/492ft for 1080P@60Hz 4:4:4 signal
Supported audio formats: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
Support for HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Bi-directional IR, RS-232 and CEC control signal transmission
Support bi-directional PoC
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18 Gbps |
| Video Resolution | Up to 4K2K@60Hz 4:4:4 Including all 3D TV format Including all resolution in computer such as 1920x1200 |
| Color Space | RGB_4:4:4, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0 |
| Color Depth | 8/10/12-bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats | LLPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X |
| L/R Audio Format | LPCM 2.0CH |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | Up to 120m/394ft for 4K2K@60Hz 4:4:4 via CAT6/6A cable Up to 150m/492ft for 1080P@60Hz 4:4:4 via CAT6/6A cable |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Transmitter | Inputs: 1× USB-C IN [USB Type C, 24-pin female]
1× HDMI IN [HDMI Type A, 19-pin female] Outputs: 1× HDBT OUT [RJ45] Controls: 1× RS-232 [3-pin 3.5mm phoenix connector] 1× IR IN [3-pin 3.5mm phoenix connector] 1× IR OUT [2-pin 3.5mm phoenix connector] |

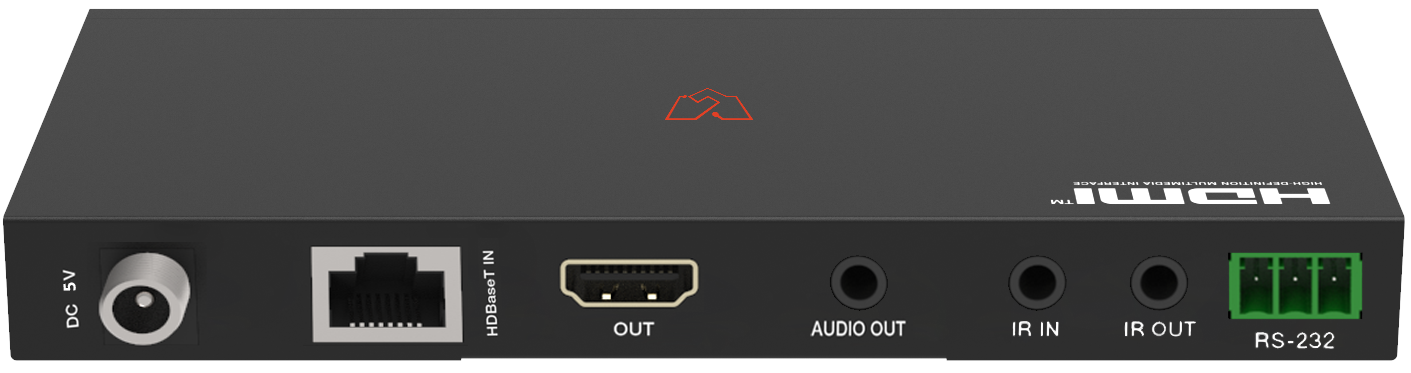

| Receiver | Inputs: 1× HDBT IN [RJ45, 8-pin female]
Outputs: 1× HDMI OUT [HDMI Type A, 19-pin female] 1× AUDIO OUT [3.5mm stereo mini-jack] Controls: 1× IR IN [3.5mm stereo mini-jack] 1× IR OUT [3.5mm stereo mini-jack] 1× RS-232 [3-pin phoenix connector] 1× SERVICE [Mini-USB, update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Transmitter: White + Black; Receiver: Black |
| Dimensions | Transmitter: 69.8mm [W] × 39mm [D] × 114mm [H] Receiver: 140mm [W] x 65mm [D] x 18mm [H] |
| Weight | Transmitter: 203g, Receiver: 155g |
| Power Supply | Input: AC 100-240V 50/60Hz; Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | Transmitter: 4.5W (Max); Receiver: 4.7W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20%~80% relative humidity (No condensation) |
| Storage Humidity | 10%~90% relative humidity (No condensation) |
