2x1 Wall Plate 1-Gang w/Auto-Switching HDBaseT 2.0 4k@60Hz 4:4:4 USB-C/HDMI 2.0, POC with RX White 40m 18Gbps
VLWP-UHC-TR
Data Sheet
User Manual
Product Description
The wall plate is a 2x1 switcher and CAT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K@50/60Hz 4:4:4.CAT6 output can extend video transmission distance up to 164ft / 50m. The product is remotely powered by the receiver or other CAT-equipped devices via POC.
Featured Highlights
Compliant with HDMI 2.0b, HDCP 2.2, and Display Port 1.2a
HDMI input supports 18Gbps video bandwidth; USB-C input supports 5.4Gbps video bandwidth
Video resolution up to 4K2K@50/60Hz 4:4:4
CAT6 output can extend video transmission distance up to 164ft / 50m for 4K@24 or 115ft / 35m for 4K@60 444 via a single CAT5e/6 cable
Supports 3D, HDR10 and Dolby Vision
HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Supports HDMI and USB-C input
With USB-C charging port
US one-gang enclosure for Decora-style wall plate openings
Input signal selection supports automatic mode and manual mode
Supports POC function (only from Receiver to Transmitter)
Available in white or black coating
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| DP Compliance | Display Port 1.2a |
| Video Bandwidth | USB-C: 5.4 Gbps HDMI: 18 Gbps |
| Video Resolution | 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0 |
| Color Depth | 8/10/12-bit (1080P@60Hz) 8-bit (4K@60Hz) |
| HDR | 3D, HDR10 and Dolby Vision |
| HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Transmission Distance | Max distance (4K@24) : 164ft / 50m over CAT5e/6 Max distance (4K@60) : 115ft / 35m over CAT5e/6 |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Connection | |
| Transmitter | Inputs: 1x HDMI Type A [19-pin female]
1x USB-C Outputs: 1 x CAT6 OUT [RJ45, 8-pin female] 1x USB-C (only for charging) Controls: 1x FW [Micro USB, Update port] 1x FW [Micro USB, Update port] |

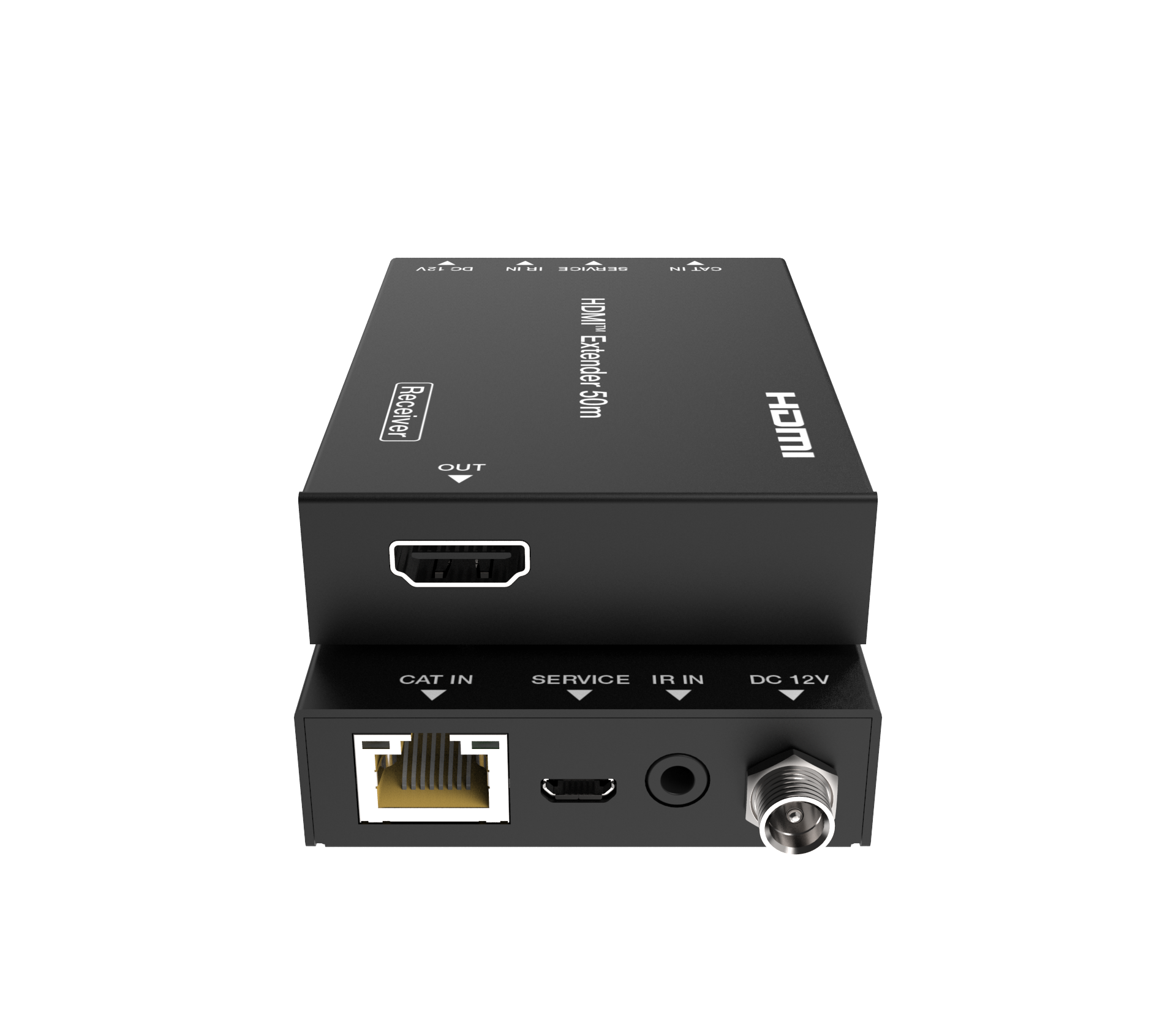

| Receiver | Input : 1x CAT IN [RJ45, 8-pin female]
Outputs : 1x HDMI OUT [Type A, 19-pin female] Controls : 1x IR IN [3.5mm Stereo Mini-jack] 1x SERVICE [Micro USB, Update port] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | White / Black |
| Dimensions | Wall plate: 33.3mm [W] x 65.7mm [D] x 68.7mm [H] Faceplate: 69.9mm [W] x 3mm [D] x 114.3mm [H] Receiver: 88mm (W) × 61mm (D) × 18mm (H) |
| Weight | Wall plate: 195g, Receiver: 155g |
| Power Supply | PoE (only from Receiver to Transmitter) |
| Power Consumption | Wall plate: 3W (Max), Receiver: 3.72W (Max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
