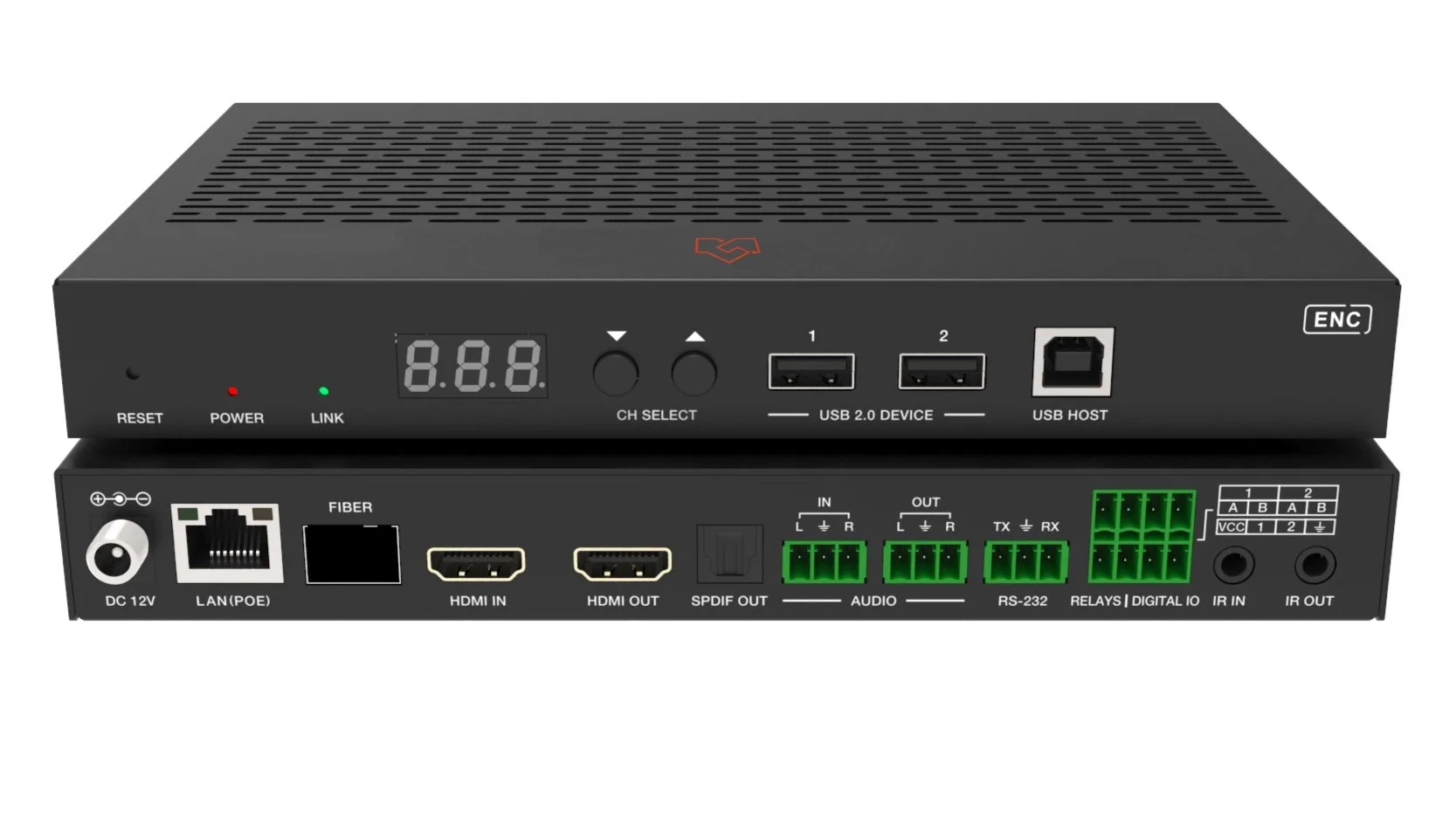

4K60 Videowall KVM Encoder
See data on the Decoder - VLIP-JP4K6K-DC
VLIP-JP4K6K-EC
Data Sheet
User Manual
Featured Highlights
HDMI 2.0b, HDCP 2.2 compliant
Support 18Gbps video bandwidth
Input and output video resolution is up to 4K60 4:4:4
Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
Transmit video, analog/digital audio, IR , RS-232, CEC and USB over Ethernet
Integrate Copper port and Fiber port within a single box
ARC/eARC/SPDIF/Analog audio return function
Channel configuration via front panel buttons and LED screen
Built-in two channel RELAY ports and two channel I/O ports for contact control
Support unicast and multicast functions
Support point-to-point, video matrix and video wall functions (video wall supports up to 9x9)
Intelligent video wall class management
Support MJPEG Substream real-time preview
1G Ethernet Switch
Support POE function
Built-in web page configuration and control, Telnet and SSH as well
HDMI audio formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby
True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
Smart networking design for easy and flexible installation
Product Description
This product is based on JPEG2000 technology. It integrates the Copper port and Fiber port within a single box. Encoder input supports up to 4K60 4:4:4, audio embedding, or extracting. Decoder output supports up to 4K60 4:4:4 audio extracting. The product supports ARC/eARC/SPDIF/Analog audio return function, USB2.0/KVM/Camera, 1G Ethernet, bidirectional RS- 232, two-way IR, and PO function. Guest mode controls of RS-232, IR, and CEC are supported. Built-in two two-channel ports and two-channel I/O ports for contact control.
Built-in MJPEG Substream, which supports plenty of API commands to achieve flexible configurations, is helpful party control Apps to preview video content.
The system is based on Linux for software development and provides flexible control methods based on the intelligent networking of a 1G Ethernet Switch.
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Compression Standard | JPEG2000 | ||
| Video Network Bandwidth | 1G | ||
| Video Resolution | Up to 4K@60Hz 4:4:4 | ||
| Color Depth | Input: 8/10/12-bit Output: 8-bit |
||
| Color Space | RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0 | ||
| HDMI Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master | ||
| Transmission Distance | 100M CAT5E/6/6A/7 | ||
| IR Level | Default 12V, optional 5V | ||
| IR Frequency | Wideband 20K - 60KHZ | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||
| Input | 1 x HDMI IN [Type A, 19-pin male]
1 x L/R AUDIO IN [3-pin 3.81mm Phoenix connector] | ||
| Output | 1 x HDMI OUT [Type A, 19-pin female]
1 x L/R AUDIO OUT [3-pin 3.81mm Phoenix connector] 1 x SPDIF OUT [Optical audio connector] | Control |
1 x RS-232 [3-pin 3.81mm Phoenix connector]
1 x LAN (POE) [RJ45 jack] 1 x FIBER [Optical fiber slot] 1 x USB 2.0 HOST [Type B, 4-pin female] 2 x USB 2.0 DEVICE [Type-A, 4pin female] 2 x RELAYS [3.81mm Phoenix connector] 2 x DIGITAL IO [3.81mm Phoenix connector] 2 x DIGITAL IO [3.81mm Phoenix connector] 1 x IR IN [3.5mm Audio Jack] 1 x IR OUT [3.5mm Audio Jack] |
| Mechanical | |||
| Housing | Metal enclosure | ||
| Color | Black | ||
| Dimensions | 204mm [W] x 136mm [D] x 25.5mm [H] | ||
| Weight | 631g | ||
| Power Supply | Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified) |
||
| Power Consumption | 8.52W (Max.) | ||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
| Resolution / Cable Length |
4K60 - Feet / Meters |
4K30 - Feet / Meters |
1080P60 - Feet / Meters |
| HDMI IN / OUT | 16ft / 5M | 32ft / 10M | 50ft / 15M |
| The use of the “Premium High-Speed HDMI” is highly recommended. |
|||
