VLIP-H54KC-TRX

Product Description

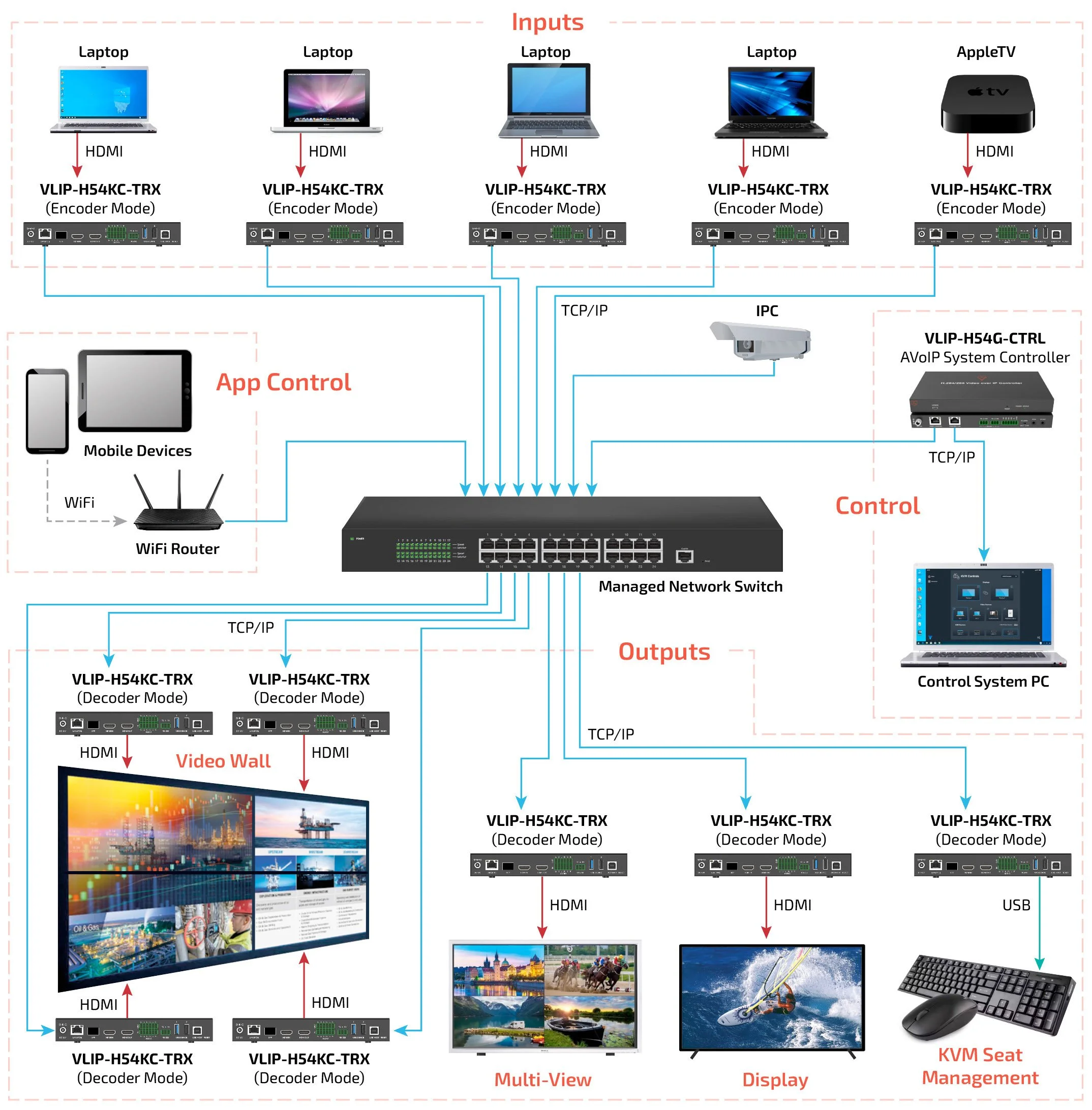

This 4K@60 H.264/H.265 transceiver is an All-In-One AV over IP solution that supports fiber and copper, and supports automatic switching between two options, the copper has a higher priority. This product provides highest-quality and ultra-low latency audio/video extension over a standard 1G Network Switch, and the transmission distance is up to 328ft/100m. It supports seamless switching, video wall, multiview and KVM seat management functions. Flexible transceiver design (one box can be set to encoder or decoder) is much convenient in a real installation site and inventory control.

In encoder mode, it supports one HDMI 2.0 input and one HDMI loop out, with analog audio embedding/de-embedding function. In decoder mode, it supports one HDMI 2.0 decoding output, with analog audio de-embedding function. The encoder supports H.264 video preview stream.

The system is based on Linux for software development, providing flexible control methods. The best digital audio and video processing management solution is created using technologies such as audio and video processing, networking, visualization and centralized control, and full network distribution. It is committed to quickly establish a high-performance, reliable and easy-to-use visualization application platform for users. Based on distributed interconnection, a comprehensive visualization solution is built that integrates audio and video comprehensive management, matrix switching, splicing and fusion, window roaming, KVM collaborative management, POE power supply application.

Featured Highlights

  • HDMI 2.0b, HDCP 2.2 compliant

  • Support video resolution up to 4K60Hz (4:4:4), 18Gbps video bandwidth

  • Audio formats support LPCM 2.0CH 48kHz 4/16

  • Integrated design of encoder and decoder, supporting fiber and copper

  • Support window roaming function: a unit as decoder can process up to 16 signals, enabling arbitrary windowing, roaming, overlaying, and splicing

  • KVM seat management (one-to-one & one-to-many), supporting one person manages multiple PCs

  • Universal H.264/265 protocol, supporting IPC access and seamless integration with security camera products

  • Support high definition background image (both video and picture are available), as well as multi-screen splicing display

  • Support scrolling subtitles and character overlay

  • Support point-to-point signal extension

  • Support signal distribution, multicast mode, matrix and video wall functions over a 1G Network Switch

  • Integrated central control function over RS-232, APP on portable devices available

  • Support user rights management

  • Flexible control via KVM, APP and Control Server

  • Standard POE supported (802.3af Class 3, PD mode)

  • Encoder supports HDMI local loop out

  • Encoder supports audio embedding and de-embedding function

  • Comprehensive visual interaction mode, signal source, large screen status, scene preview and environmental visualization control

Specifications

Technical
HDMI Compliance    HDMI 2.0b
HDCP Compliance    HDCP 2.2
Video Bandwidth    18Gbps
Video Compression Standard    H.264/H.265
Network Port     1000M Base-T (supporting POE)
Video Resolution    1024x768~3840x2160@60Hz

(Note: The decoder supports custom resolution output.)
Color Space    RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0    (4:2:2)
Color Depth    8/10/12bit
Encoding Sampling Rate     48KHz
HDMI Audio Formats     LPCM 2.0CH, 16bit, 48k
Analog Audio Formats     Left and right stereo analog audio
ESD Protection     Human-body Model:

±8kV (Air-gap discharge) , ±4kV (Contact discharge)
Connection
Input         1 x HDMI IN [Type A, 19-pin female]

2 x AUDIO IN [3-pin phoenix connector, stereo balanced linear interface]
Output         1 x HDMI OUT [Type A,19-pin female]

2 x AUDIO OUT [3-pin phoenix connector, stereo balanced linear interface]
Control         1 x LAN (POE) [RJ45, supporting POE]

1 x RS-232 [3-pin phoenix connector]

1 x USB HOST [Type B, 4-pin female]

2 x USB DEVICE [Type A, 4-pin female]

1 x SFP [Fiber slot]
Mechanical
Housing    Metal enclosure
Color    Black
Dimensions    204mm [W] × 131.5mm [D] × 30mm [H]
Weight    760g
Power Supply    Input: AC100 - 240V 50/60Hz,

Output: DC 12V/2.5A

(US/EU standards, CE/FCC/UL certified)
Power Consumption    Encoder: 10.22W; Decoder: 7.04W
Operating Temperature    32   ~ 104°F / 0 ~ 40°C
Storage Temperature    -4 ~ 140°F / -20 ~ 60°C
Relative Humidity    20 - 90% RH (No condensation)
