2x1 HDMI 2.1 Switch 48Gbps

VLSW-21H21

Data Sheet

User Manual

Product Description

This 8K HDMI 2x1 Switcher can switch any of the two HDMI source signals to one HDMI display. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occassions requiring for big-screen demonstration.

Featured Highlights

  • HDMI 2.1 and HDCP 2.3 compliant

  • Support 40Gbps video bandwidth

  • Support video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit

  • VRR, FVA, ALLM supported

  • Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass through

  • Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

  • Built-in Equalizer, Retiming and Driver

  • Advanced EDID management

  • Support audio de-embedding function (output through the optical and analog port)

  • Support IR remote control and front panel button switching

  • Compact design for easy and flexible installation

Specifications

Technical
HDMI Compliance     HDMI 2.1
HDCP Compliance     HDCP 2.3
Video Bandwidth     40Gbps
Video Resolution     Up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4 10bit, 4K@120Hz 4:4:4 10bit
Color Depth     8/10/12-bit
Color Space     RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0
Audio Formats     HDMI input/output:

LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Audio de-embedding output:

Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH

Analog: PCM 2.0
ESD Protection     Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection

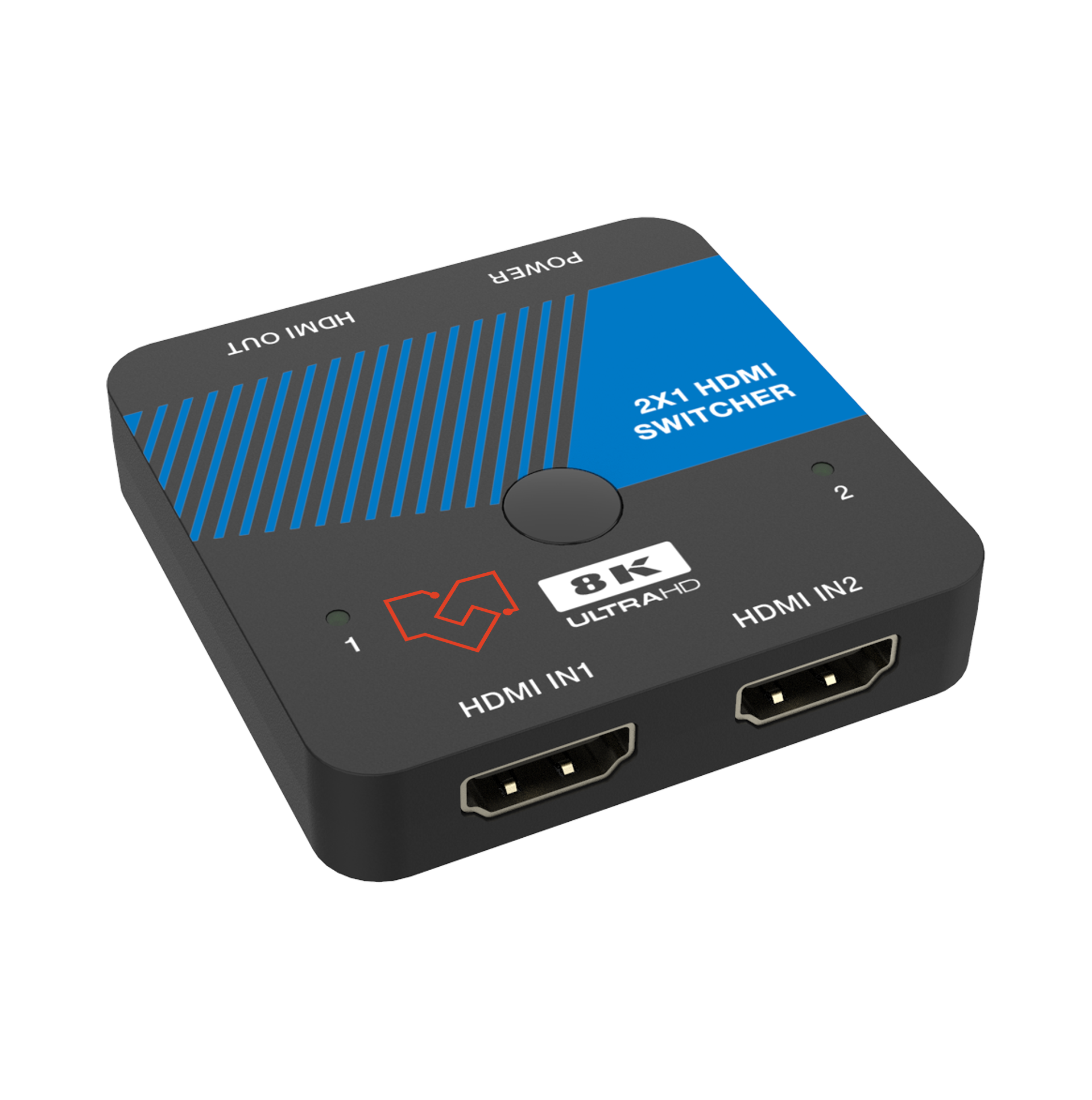

Input 2 × HDMI IN [Type A, 19-pin female]

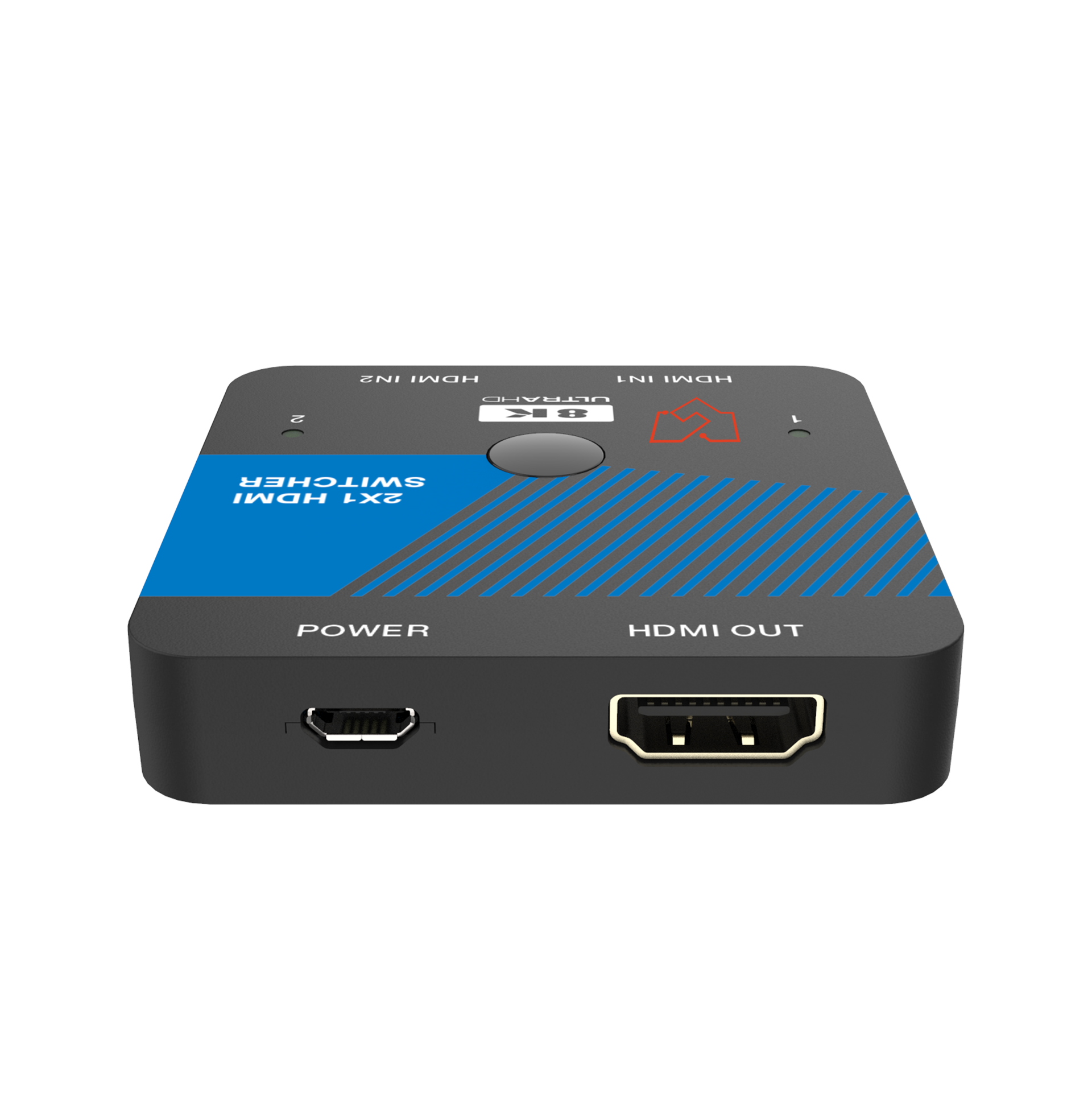

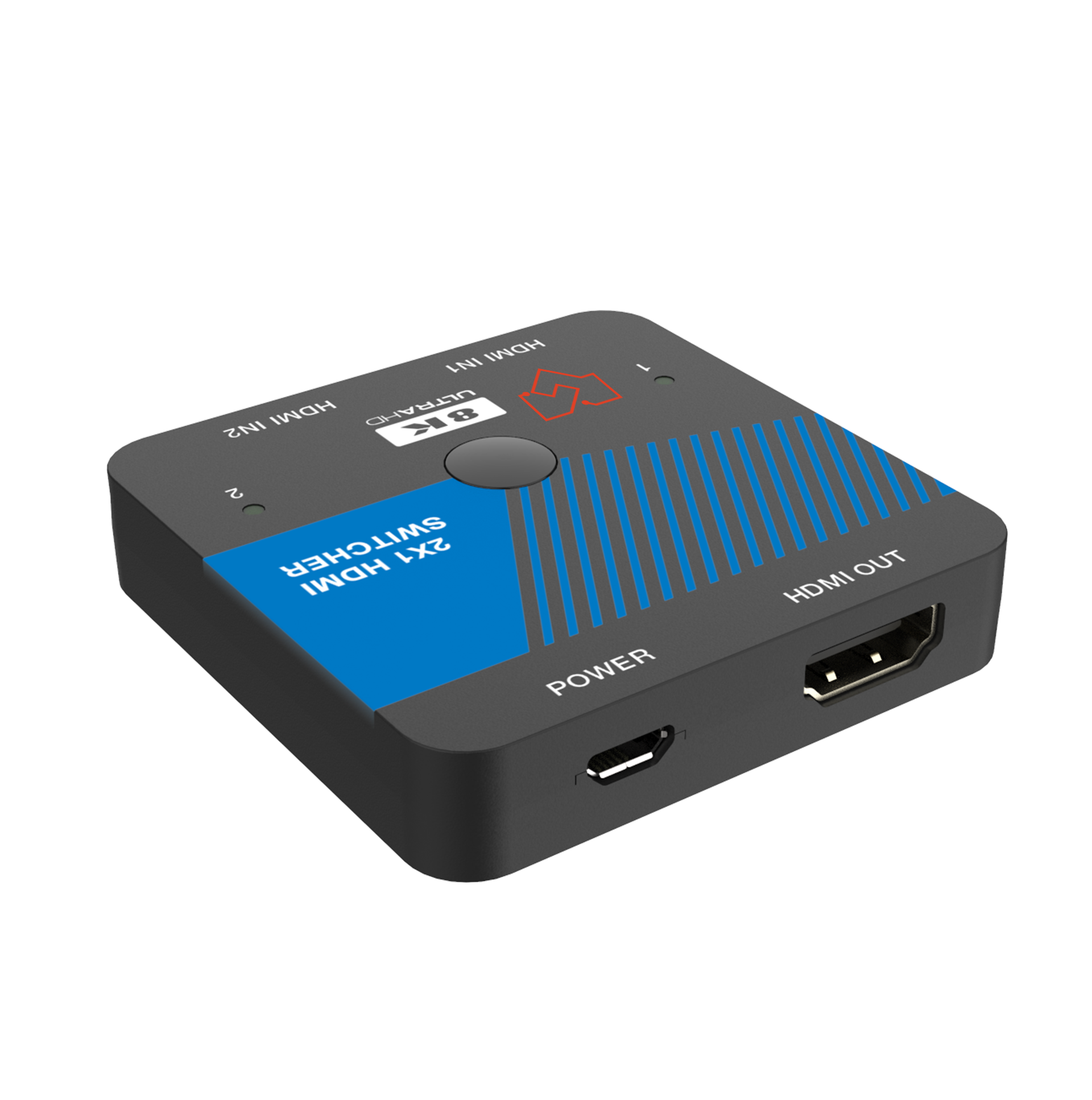

Output     1 × HDMI OUT [Type A, 19-pin female]

1 × OPTICAL [S/PDIF]

1 × L/R [3.5mm Stereo Mini-jack]
Control 1 × SERVICE [USB Type C, Update port]
Mechanical
Housing     Metal enclosure
Color     Black
Dimensions     145mm (W) × 68mm (D) × 17mm (H)
Weight    268g
Power Supply    Input: AC100 - 240V 50/60Hz, Output: DC 5V/2A

(US/EU standards, CE/FCC/UL certified)
Power Consumption     5.25W (Max)
Operating Temperature     32 - 104°F / 0 - 40°C
Storage Temperature    -4 - 140°F / -20 - 60°C
Relative Humidity    20 - 90% RH (No condensation)
Recommended HDMI Cable
Video Resolution 8K 4K60 4K24 1080P
HDMI Cable Type Ultra HDMI 2.1 HDMI 2.0 HDMI 1.4 HDMI 1.4
HDMI Cable Length

(HDMI IN / OUT) 		3m/10ft 8m/26ft 12m/39ft 15m/49ft
The use of the “Premium High-Speed HDMI” is highly recommended.
