Preliminary Data Sheet
4K Dual-Lens AI PTZ USB Camera
VLPT-4KAIPTZ
Product Description
"The VLPT-4KAIPTZ is a 4K dual-lens tracking camera designed for small—to medium-sized conference rooms. It perfectly captures the image of everyone in the room.
The camera features a 3x optical zoom PTZ camera with 110°DFOV and a panoramic lens with 120˚DFOV. AI-driven features like auto framing, speaker tracking, and presenter tracking are directly integrated, and Picture in Picture captures every attendee up close with premium video quality.
It is fully compatible with Windows 10/11 and Mac OS and is plug-and-play with Teams, Zoom, and other Conferencing applications."
Featured Highlights
Support up to 4K@30fps, USB3.0
Built-in dual-eye camera with panoramic lens for increased viewing angles
4K 3x optical zoom PTZ camera with FOV 110°, panoramic lens with FOV 120°
Advanced CMOS image sensor and ISP algorithm provide crystal-clear video
Integrated AI driven auto framing, speaker tracking and presenter tracking
Dual-lens design offers a speaker view and wide-angle view simultaneously with various PIP layout options
Support for MJPG, NV12 and H.265, H.264 Video compression
Multiple installation options (on a conference table, on the top of a TV, on the wall, or a tripod)
Easy set-up , USB plug and play
Compatible with Windows 10/11, MAC OS, Chrome OS, as well as ZOOM, Teams, Skype,, Cisco Webex™,and more
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | None | ||
| Video Resolution (Up To) | 4k30 | ||
| Number of Cameras | 4 | ||
| Built In Microphone | Yes | ||
| Zoom Ratio | 3 x optical | ||
| Auto Framing | Yes | ||
| Presenter Tracking | Yes | ||
| Sensors | CMOS - 8MP effective pixels, CMOS - 2MP effective pixels | ||
| Speaker Tracking | Yes | ||
| Connection | |||

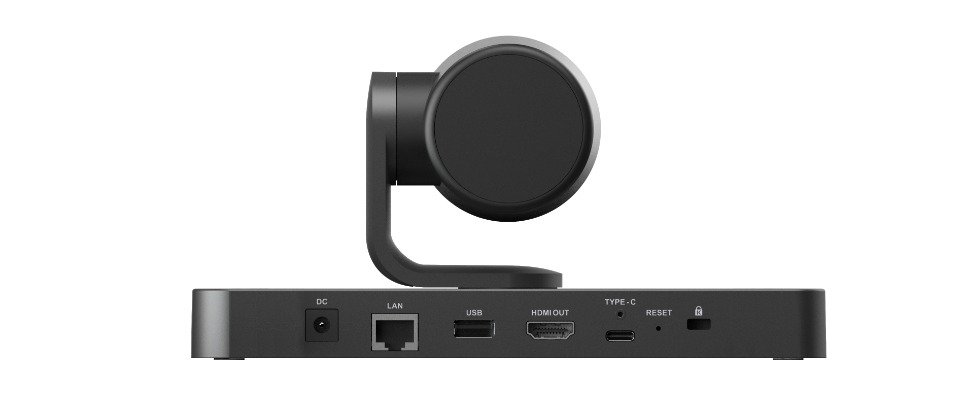

| Output Ports | 1x USB3.0, Type-C female 1x, HDMI2.0 12V/3A DC adaptor 1 x USB-A 2.0 1x 100Mbps LAN |
||
| Mechanical | |||
| Power Supply Voltage | 12V | ||
| Power Supply Current Draw | 3A | ||
