10G Dual Link 4K60 4:4:4 Extender Fiber Receiver
VLEX-DH10GF-RX
Data Sheet
Product Description
transmitter and receiver could be able to expand 4K60 uncompressed signals simultaneously in both Transmitter and Receiver mode.
With Bidirectional audio, it is able to achieve 2 way live chat with low latency. Seamless transition between two sources of same resolution in fast switch mode, with only 3 frames black when transit between 2 sources of different resolutions.
Full suite of peripherals supported, including 1G Ethernet, RS232, and HID USB. Supporting all HDMI 2.0 formats including multichannel PCM, Dolby True HD and DTS HD master audio.
Featured Highlights
Uncompressed 4k@60p RGB in genlock mode
4k@30 endoscopy plus four sub 2k vital signs
Flexible multiview as side by side, PiP for endoscopy, four 2k@30 quadview
No crop, no stretch, and no change in aspect ratio in the scaled down video in multiview mode
Preview at PC side
Note. Supports the use of an external control center or control software to provide expanded functionality
Dual link decoder operating in dual link mode can only operate in Genlock mode
Dual link decoder operating in single link mode has the same capabilities as a standard single link encoder
USB KVM function
Specifications
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Viedo | ||
| HDMI Compliance | HDMI 2.0 (DVI 1.0) | |
| HDCP Compliance | 2.2 | |
| Input Signal Types | 4K@60 YUV 4:4:4 | |
| Output Signal Types | 4K@60 YUV 4:4:4 | |
| Resolutions | ||
| Maximum Input | 20G LAN | 4096×2160p@60 YUV 4:4:4 |
| Maximum Output | HDMI (Streaming) | 4096×2160p@60 YUV 4:4:4 |
| Audio | ||
| HDMI | LLPCM (2 Channels, 48KHz), Bitstream | |
| SFP+ | LPCM (8 Channels), Bitstream, High Bit Rate Bitstream | |
| Line In | 2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
|
| Line Out | 2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
|

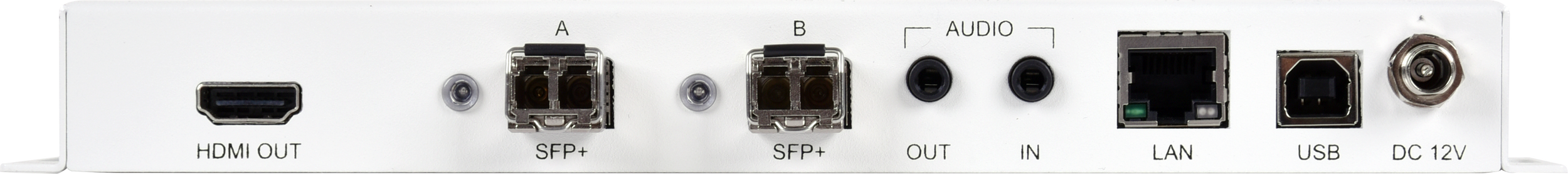

| CONNECTIONS | ||
| Input Port | 1 Analog (3.5mm) | |
| Output Port | 1 Analog (3.5mm) 1 HDMI (Type A) |
|
| Bi-directional Port | 2 10GbE LAN (SFP+) | Control I/O | 1 LAN (RJ-45) 1 USB (Mini-B) 3 USB(Type A) |
| MECHANICAL SPECIFICATIONS | ||
| Housing Construction | Metal (Steel) | |
| Device Dimension (W x H x D) | 231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive] |
|
| Weight | 943g | |
| Power Supply | 12V/3A DC (Locking) | |
