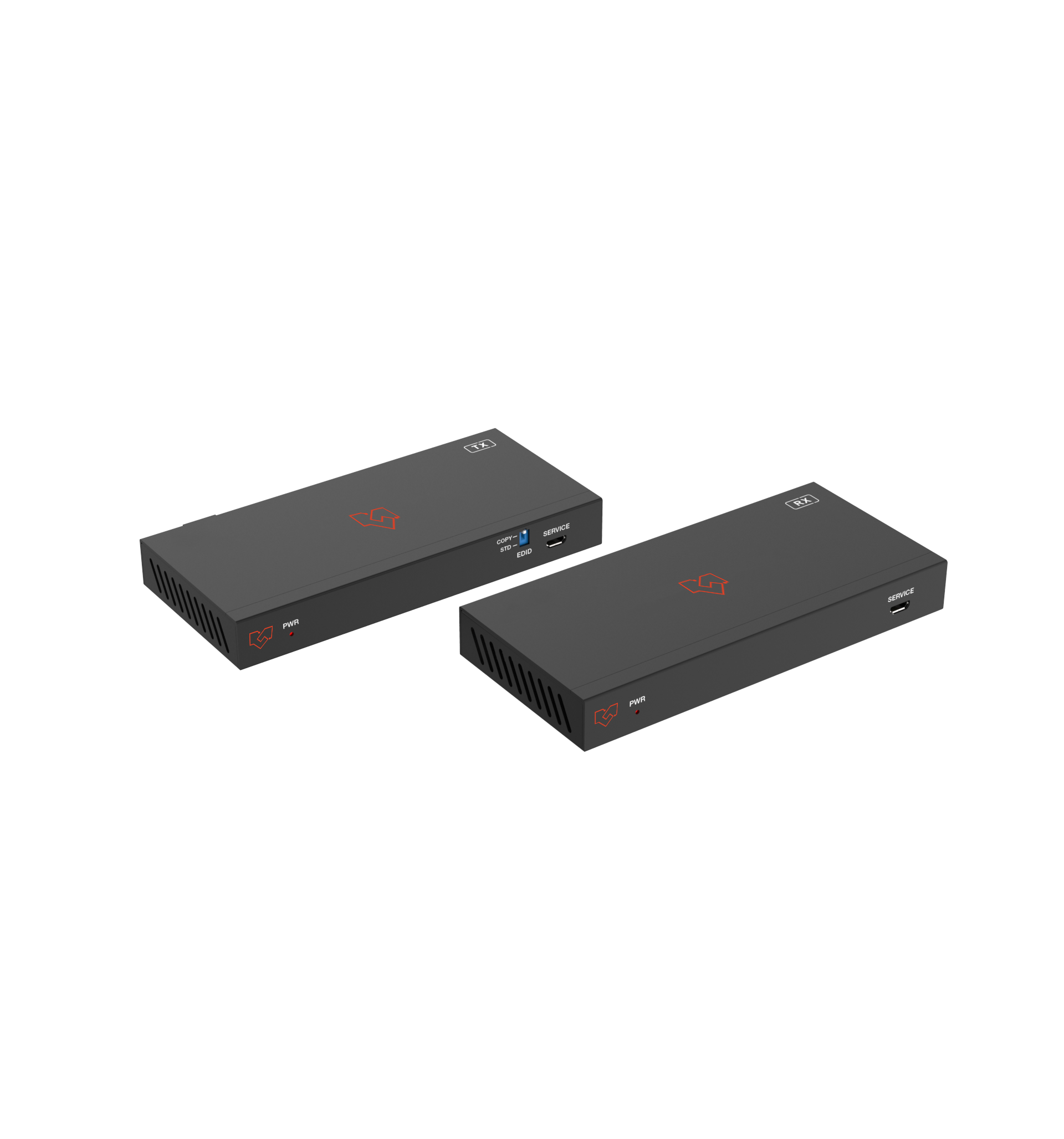

18Gbps HDMI over CAT Extender 70 meters ARC Two way IR
VLEX-CT070R-TR
Data Sheet
User Manual
Product Description
Experience seamless and uncompressed long-distance transmission with our 18Gbps HDMI Extender. Extend HDMI HD signal and IR control signal up to 230ft / 70m using just a single CAT6/6a cable, ensuring zero-delay performance. Enjoy stunning video resolution up to 4K2K@60Hz and benefit from the EDID copy pass-through function, seamlessly syncing source device and display settings. Plus, with POC function support, this extender is perfect for multi-media conference halls, TV teaching, and large-screen displays.
Featured Highlights
HDMI 2.0b and HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz RGB/YCbCr 4:4:4
Transmission distance can extend up to 230ft / 70m via a single CAT6/6a cable
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Bi-directional IR control signal pass-through
Audio formats supported: LPCM 7.1, Dolby True HD, DTS HD Master
EDID copy pass-through function between the source device and display device
ARC and audio de-embedding support; audio output through the optical fiber port of the receiver
Bi-directional POC (Power over Cable) function supported
Compact design for easy and flexible installation
Box Content

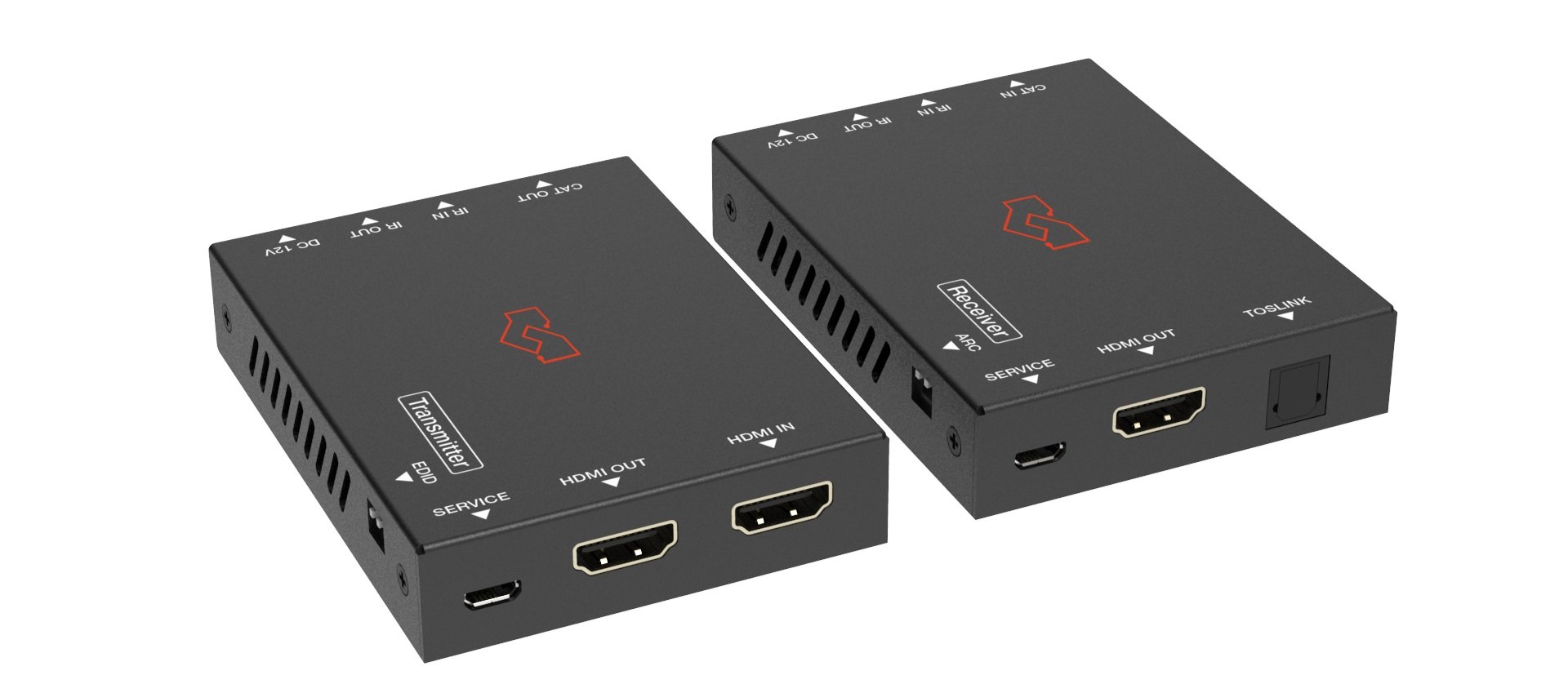

1 x 18Gbps HDMI Extender (Transmitter)
1 x 18Gbps HDMI Extender (Receiver)
1 x IR Blaster cable (1.5 meters)
1 x IR Wideband Receiver cable (1.5 meters)
4 x Mounting Ears
8 x Machine Screws (KM3*4)
1 x 12V/1A Locking Power Adapter
1x User Manual
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.0b | ||
| HDCP Compliance | HDCP 2.2 | ||
| Video Bandwidth | 18Gbps | ||
| Video Resolution | Up to 4K2K@60Hz RGB/YCBCR 4:4:4 | ||
| IR Level | 5Vp-p | ||
| IR Frequency | Wideband 20K-60KHz | ||
| Transmission Distance | 4K2K@60Hz 4:4:4--70m, 1080P--70m (CAT6/6a cable) | ||
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
| Color Depth | 8/10/12-bit | ||
| Audio Formats | HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
||
| Connection | |||
| Transmitter | Inputs: 1 × HDMI IN [Type A, 19-pin female] Outputs: 1×HDMI OUT [RJ45] 1×CAT OUT [RJ45] Controls: 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] | ||
| Receiver | Inputs: 1×CAT IN [RJ45] Outputs: 1×HDMI OUT [Type A, 19-pin female] 1×TOSLINK Controls: 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] | ||
| Mechanical | |||
| Housing | Metal Enclosure | ||
| Color | Black | ||
| Dimensions | Transmitter / Receiver: 90mm (W)×68mm (D)×18mm (H) | ||
| Weight | Transmitter: 160g, Receiver: 155g | ||
| Power Supply | DC 12V/1A; Support bi-directional POC function |
||
| Power Consumption | 3.36 W (max) | ||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (non-condensing) | ||
