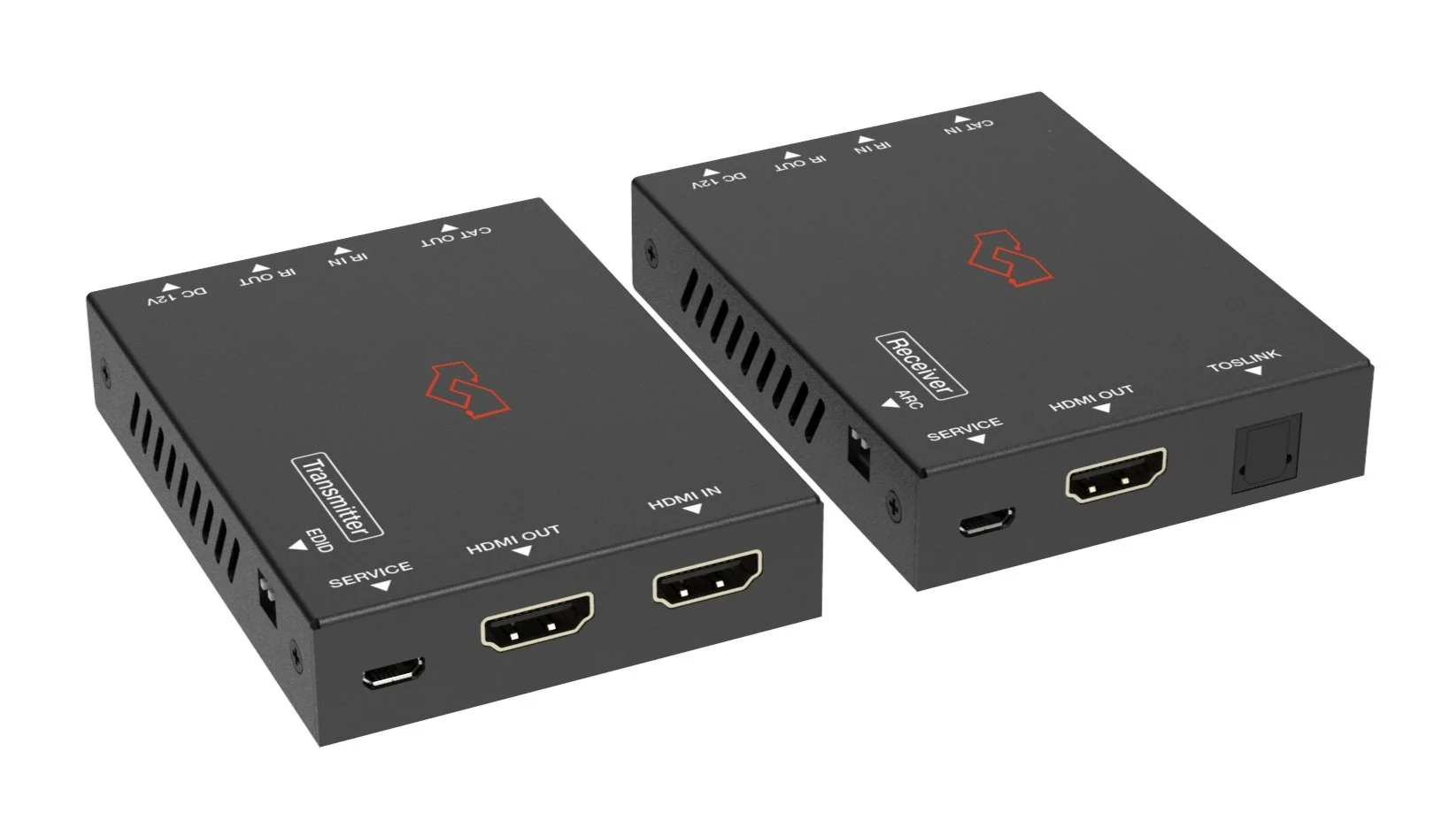

18Gbps CAT extender with TOSLINK, 70m
VLEX-CATH2070-TR
Data Sheet
User Manual
Product Description
Extend HDMI HD signal and IR control signal to a distance up to 230ft / 70m via a single CAT6/6a cable, which can achieve zero-delay uncompressed long-distance transmission between the transmitter and receiver.
Video resolution - up to 4K2K@60Hz. Supporting EDID copy pass-through function between the source device and the display device. Supporting POC function.

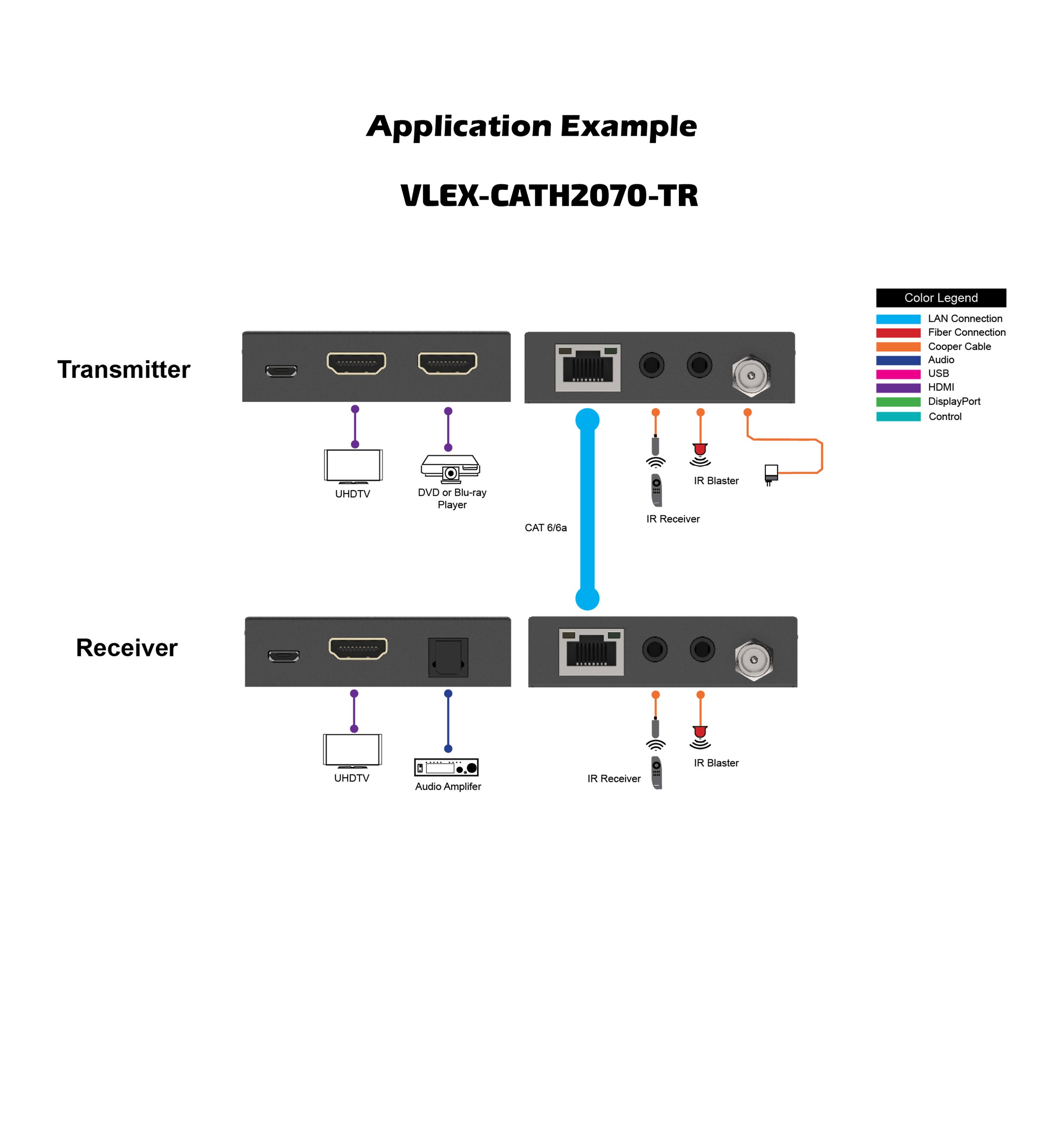

This Extender can be widely used in multi-media conference halls, TV teaching, and large-screen displays.
Featured Highlights
HDMI2.0b and HDCP 2.2 compliant
Supports 18Gbps video bandwidth
Supports video resolution up to 4K2K@60Hz RGB/YCBCR 4:4:4
The transmission distance can be extended up to 230ft / 70m via a single CAT6/6a cable
Supports HDR, HDR10, HDR10+, Dolby Vision, HLG
Supports bi-directional IR control signal pass-through
Audio formats: LPCM 7.1, Dolby True HD, DTS HD Master
EDID copy pass-through function between the source device and display device
Supports ARC and audio de-embedding, audio is output through the optical fiber port of the receiver
Supports bi-directional POC (Power over Cable) function
Compact design for easy and flexible
Specifications
| Technical | |
|---|---|
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| Video Resolution | Up to 4K2K@60Hz RGB/YCbCr 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | Wideband 20K-60KHz |
| Transmission Distance | 4K2K@60Hz 4:4:4--70m, 1080P--70m (Cat6/6a cable) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Color Depth | 8/10/12bit |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Audio Formats | HDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0 |
| Connection | |
| Transmitter | Input: 1×HDMI IN [TypeA, 19-pin female]
Output: 1×HDMI OUT [RJ45] 1×Cat OUT [RJ45] [3.5mm Stereo Mini-jack] Control: 1×SERVICE [Micro-USB jack] 1×Cat OUT [RJ45] [3.5mm Stereo Mini-jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |
| Receiver | Input: 1×Cat IN [RJ45]
Output: 1×HDMI OUT [TypeA, 19-pin female] 1×TOSLINK Control: 1×SERVICE [Micro-USB jack] 1×IR IN [3.5mm Stereo Mini-jack] 1×IR OUT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | Transmitter / Receiver: 90mm (W)×68mm (D)×18mm (H) |
| Weight | Transmitter: 160g, Receiver: 155g |
| Power Supply | DC 12V/1A; Support PoC function |
| Power Consumption | 3.36 W (max) |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 - 90% RH (No condensation) |
