HDMI 8K Fiber Extender 300M/ARC
VLEX-8KF300A-TR
Data Sheet
User Manual
Product Description

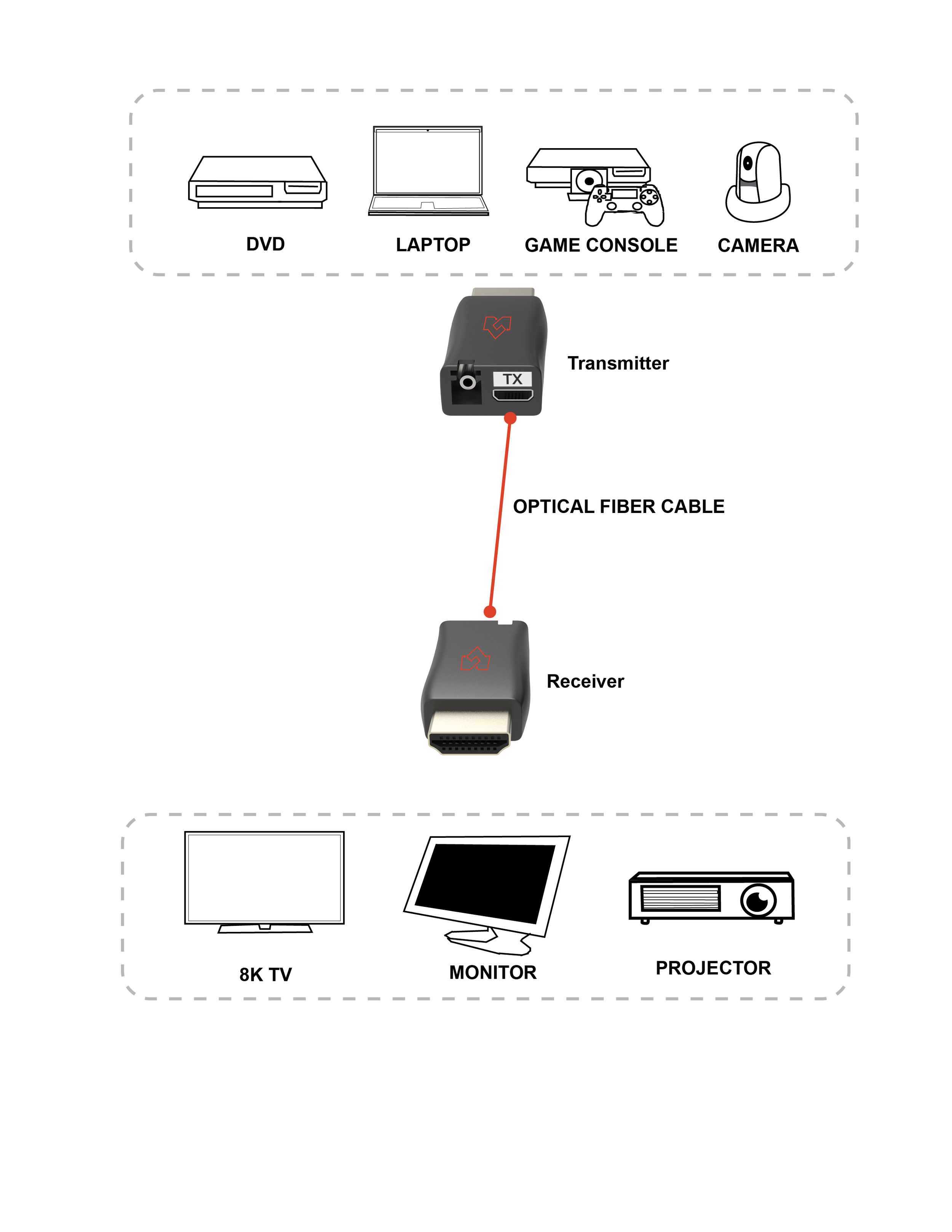

This HDMI over Fiber Extender offers remarkable capabilities for extending HDMI signals over long distances. It can extend 18Gbps (4K60 4:4:4 8bit) HDMI signals up to 984ft/300m using a 50/125um/OM3 multi-mode fiber cable, or extend 40Gbps (8K60 4:2:0 10bit) HDMI signals up to 164ft/50m using a 50/ 125um/OM4 multi-mode fiber cable. With support for video resolutions up to 8K60 4:2:0 10bit, it ensures top-notch image quality. Additionally, it supports HDMI HPD/DDC/CEC/ARC transmission for seamless connectivity. The transmitter features HDMI input, LC fiber optical output, and Micro USB power supply port, while the receiver includes HDMI output, LC fiber optical input, and Micro USB power supply port. With its robust anti-interference, safety features, compact size, and lightweight design, it stands out as the ideal solution for long-distance HDMI transmission.
Featured Highlights
HDMI 2.1, HDCP 2.3 compliant 40Gbps
Up to 8K60 YCbCr 4:2:0 10bit, 8K30 RGB/YCbCr 4:4:4 10bit or 4K120 RGB/YCbCr 4:4:4 10bit
VRR, ALLM, QMS, QFT, SBTM pass-through
HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
CEC/HPD/DDC/ARC pass-through
Standard single Fiber LC connector
Supports extending 18Gbps (4K60 4:4:4 8bit) HDMI signal up to 984ft/300m over a 50/125um/OM3 multi-mode fiber cable, or extending 40Gbps (8K60 4:2:0 10bit) HDMI signal up to 164ft/50m over a 50/125um/OM4 multi-mode fiber cable
Fiber module included (Embedded)
Micro USB power supply
2x USB cables and 2x 15cm HDMI female to male cables included
Specifications
| Technical | |||
|---|---|---|---|
| HDMI Compliance | HDMI 2.1 | ||
| HDCP Compliance | HDCP 2.3 | ||
| Video Bandwidth | 40Gbps | ||
| Audio Latency | No latency | ||
| Video Latency | No latency | ||
| Video Resolution | Up to 8K30 4:4:4 | ||
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 | ||
| Color Depth | 8/10/12bit | ||
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
| HDMI Audio Formats | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio | ||
| ESD Protection | Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact discharge) | ||
| Connection | |||

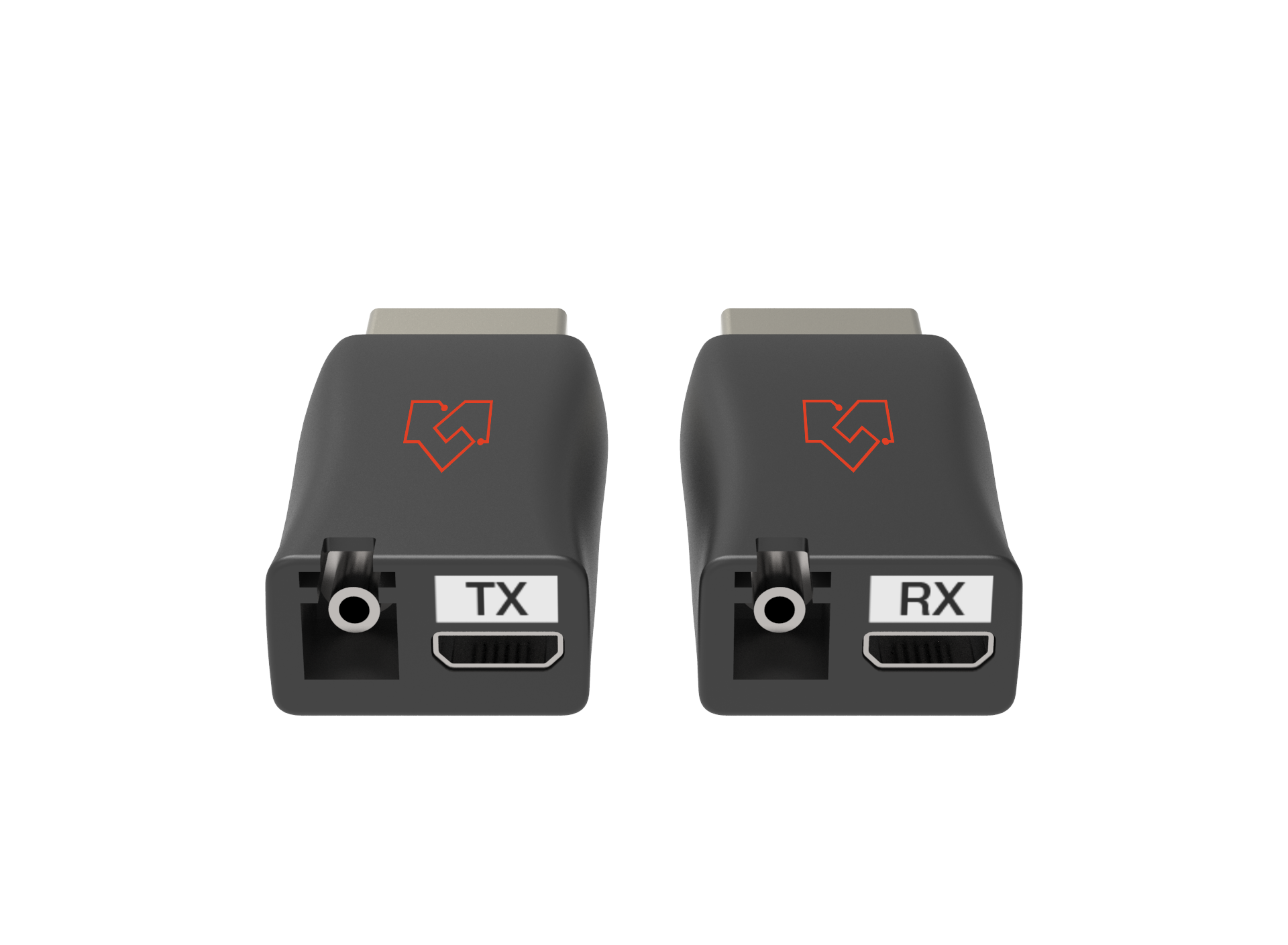

| Transmitter | Inputs: 1x HDMI IN [Type A, 19-pin female] 1x POWER [Micro USB, 5-pin female] Outputs: 1x FIBER OUT [LC, 1-pin female] | ||
| Receiver | Inputs: 1x FIBER IN [LC, 1-pin female]
1x POWER [Micro USB, 5-pin female] Outputs: 1x HDMI OUT [Type A, 19-pin female] |
||
| Mechanical | |||
| Housing | Aluminum Enclosure | ||
| Color | Grey | ||
| Dimensions | Transmitter / Receiver: 45.5mm [W] x 20.5mm [D] x 17.5 mm [H] | ||
| Weight | Transmitter: 22g, Receiver: 22g |
||
| Power Supply | Transmitter: 5V USB power supply or HDMI signal source power supply Receiver: 5V USB power supply |
||
| Power Consumption | Transmitter: 0.9W (Max), Receiver: 0.2W (Max) | ||
| Operating Temperature | 32 - 104°F / 0 - 40°C | ||
| Storage Temperature | -4 - 140°F / -20 - 60°C | ||
| Relative Humidity | 20 - 90% RH (No condensation) | ||
| Resolution / Fiber DistanceFiber Distance |
18Gbps (4K60 4:4:4 8bit) Feet / Meters |
40Gbps (8K60 4:2:0 10bit) Feet / Meters |
|
| H50/125um/OM3 | 984ft/300m | X | |
| H50/125um/OM4 | 984ft/300m | 164ft/50m* | |
