Product Description
Unlock Endless Display Possibilities
Maximize your visual experience with our cutting-edge display solution, designed for versatility across various applications:
Curved Screen Projection – Create an immersive 4K curved display for golf simulators and large-scale gaming.
Aspect Ratio Adjustment – Effortlessly modify your screen’s aspect ratio to match your desired display size.
Mobile Device Mirroring – Mirror your phone or tablet onto a 4K portrait monitor for gaming or commercial displays.
Picture-in-Picture (PIP) & Picture-outside-Picture (POP) – Add a second video source with adjustable size, aspect ratio, and positioning.
Quad-Split Multi-Viewer – Display up to four sources simultaneously on a single 4K screen.
Custom Image Cropping – Crop any section of an image to create the perfect display.
Image Rotation – Rotate images for portrait displays without modifying the source.
Ultra-Short Throw Projector Correction – Eliminate image distortion for seamless projection.
Edge Masking – Remove unwanted visuals at the display edges for a cleaner look.

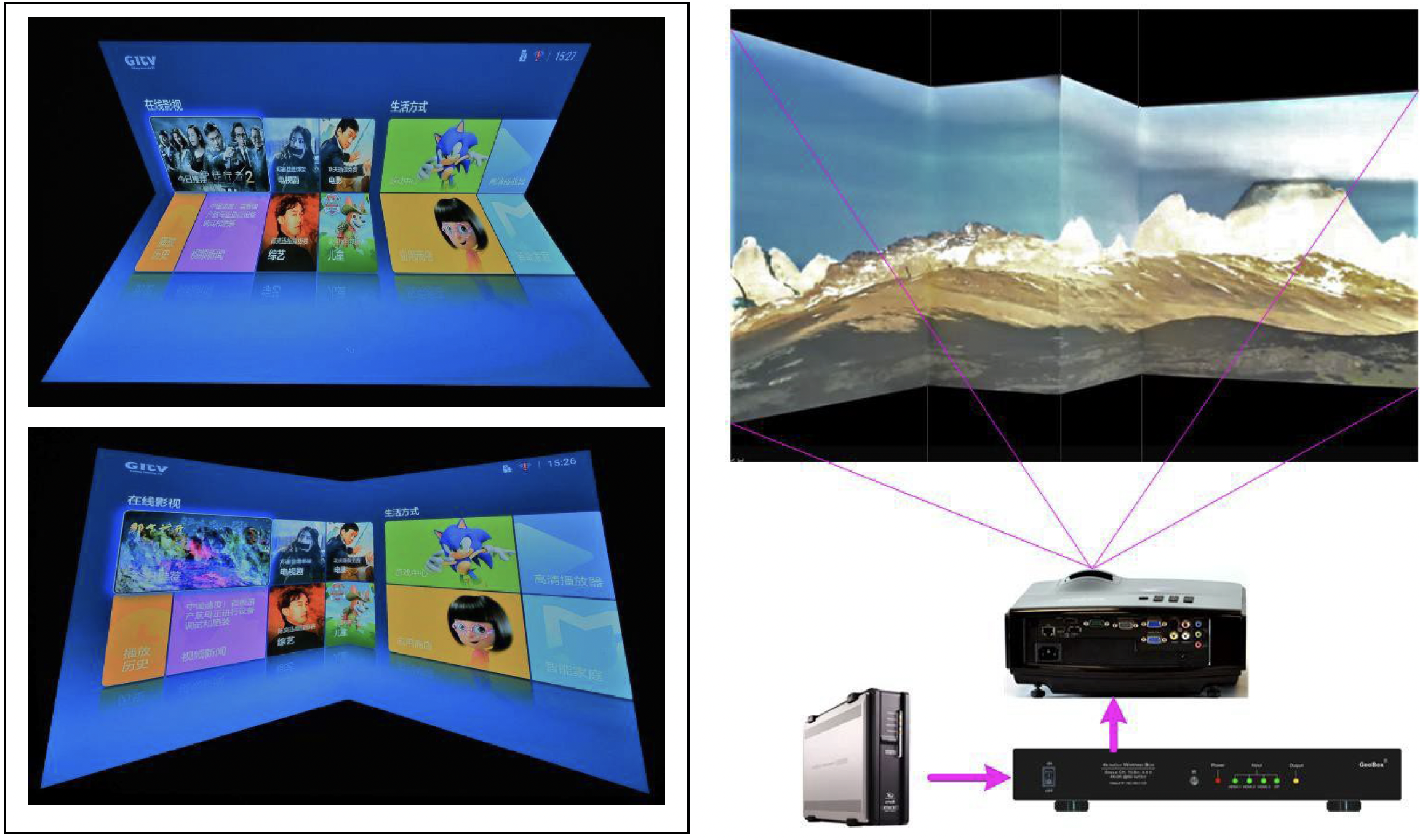

90° Wall Projection – Achieve seamless projection on corner walls using "V" type corner wall adjustment.
Square Pillar Display – Perfectly map images on 90° wall corners with pillars using "W" type corner wall adjustment.
Stacked Projector Brightness Boost – Combine multiple projectors for a brighter, more vibrant image.
3D Format Conversion – Seamlessly convert 3D content for medical device applications.
Our solution is built for performance, flexibility, and innovation—enhancing how you experience visuals. Discover the difference today!
Featured Highlights
Control 4k UHD projector edge blending on flat, curved and 360 degree screen
Support max input of 4096×2160@60hz or 7680×2160@30hz and true 4K output
Modularized design to control from one to four projectors in one box
Support multiple unit cascade through HDMI loop through for controlling more than four projectors
Specifications
Input/Output:
Input: 3x HDMI 2.0b, 1x DP1.4
Output: 1x HDMI 2.0, loop output: 1x HDMI 2.0b for audio and daisy chain connection
Input seamless switcher function can be selected
HDCP compliance: Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3, Output: HDCP V2.0/V1.4
Resolution:
Input resolution:
DisplayPort: 7680x4320 @30Hz
HDMI: 7680x2160 @30Hz, 7680x1200 @60Hz, 4096x2400 @50Hz, 4096x2160 @60Hz
Input supports progressive and interlaced RGB/YUV signal, 4:4:4 Chroma sampling, up to 30 Color bits
16 selectable Outputs: HDMI 2.0 up to 4096x2160 @60Hz, progressive 4:4:4 RGB
Geometry Adjustment:

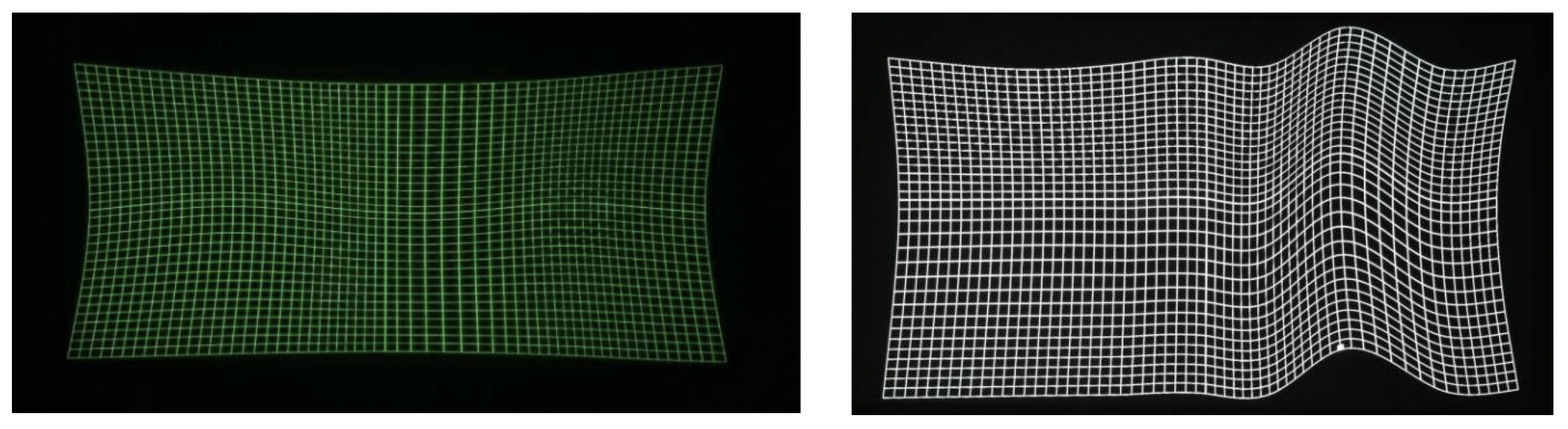

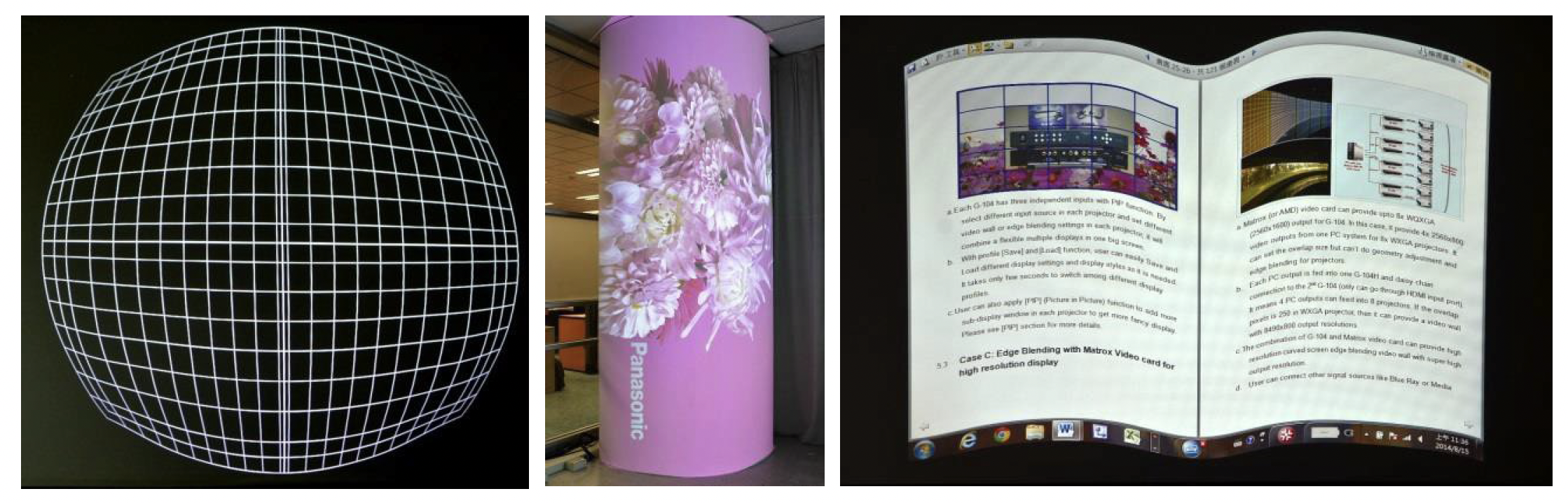

Warp engine for geometry alignment up to 120x68 control points
Maximum geometry adjustment up to 1200 pixels in both H&V directions for each corner
Support W shape Corner Wall adjustment in H&V at flexible location
Support Linearity Grid Line adjustment for quick H&V line position alignment. It is good for the line gap adjustment on curved screen display.
Edge Mask with 8 control points up to 900 pixels at each control point in H&V directions
Selectable geometry alignment grid size from 8-120 pixels in H&V direction. Default is 32x32 pixels.
Video Processing:

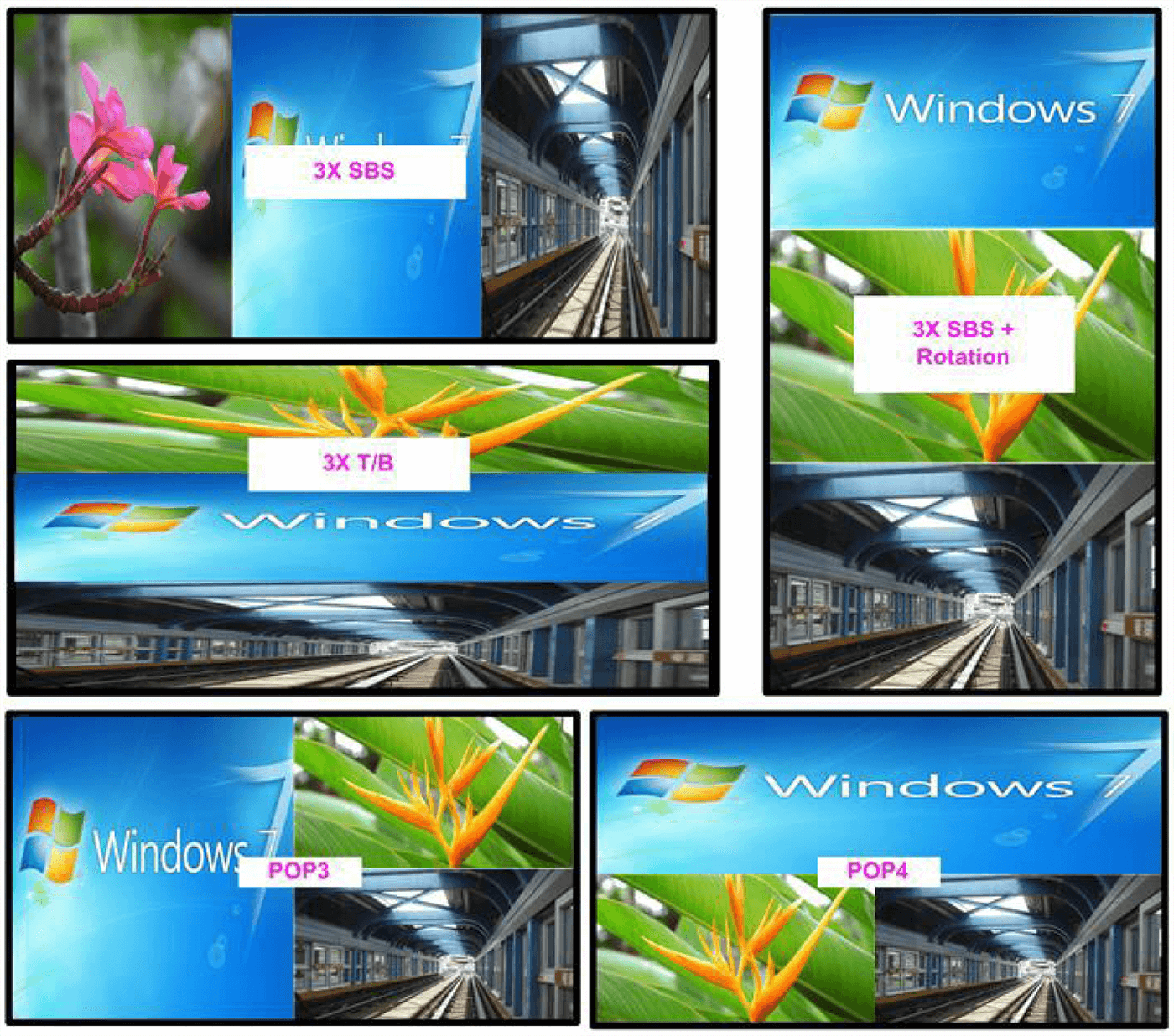

Embedded video wall function for image split, cropping and aspect ratio adjustment
3D format conversion: Convert 3D input signal into Side by Side, Top/Bottom and frame sequential output signal for passive 3D and active 3D displays
10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine
3D motion adaptive de-interlace
Frame lock function to get perfectly synchronized outputs in multi-unit application
Frame rate conversion and 50Hz in/out function to eliminate image frame drop or repeat
Support xvYCC & 8/10/12-bit deep color processing
Automatically support HDR 10 input signal processing with SDR full color RGB 4:4:4 output
OSD/Display:
OSD menu location is adjustable
PIP/POP function with PIP image size from 320x180 up to 1920x1200 resolution with flexible position and adjustable aspect ratio
2/3/4 split view
Other Features:
Quick seamless swap between two input signals
Selectable and programmable EDID in the range: H=1024-4080, V=720-3840
User can save up to 10 settings that can be recalled at any time
ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
Control: IR, RS232, USB, Ethernet
Certification: CE/FCC/RoHS Certified
Power:
Power supply: DC 12V 2A
Power consumption: DC 12V/1.1A (13.2W)
Dimensions and Weight:
Dimensions (Body Only): 11.93in x 7.48in x 1.57in
Weight (Body Only): 2.65lbs
Warranty:
30 Month Warranty
