4K MultiView Edge Blending Processor

Experience seamless 4K projection blending

UD 100 Series

4k Edge Blending with Multiviewer

UD100 series has 4 models available:

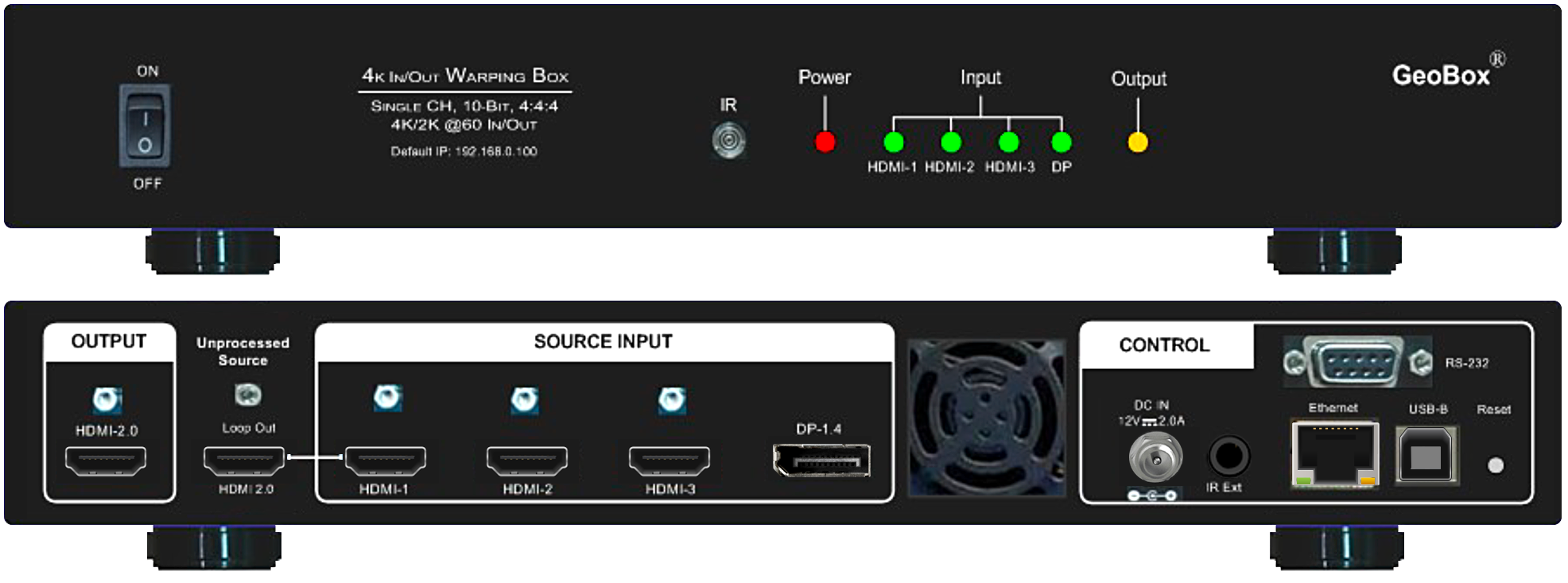

UD101 is a single-channel version

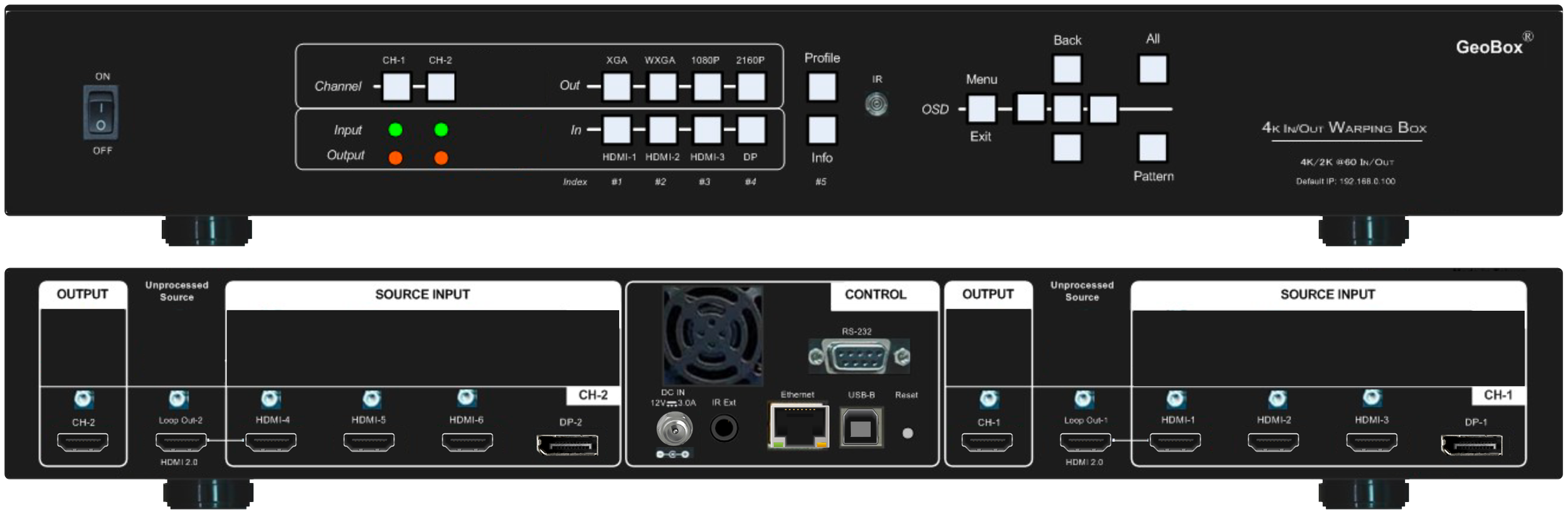

UD102 is a two-channel version

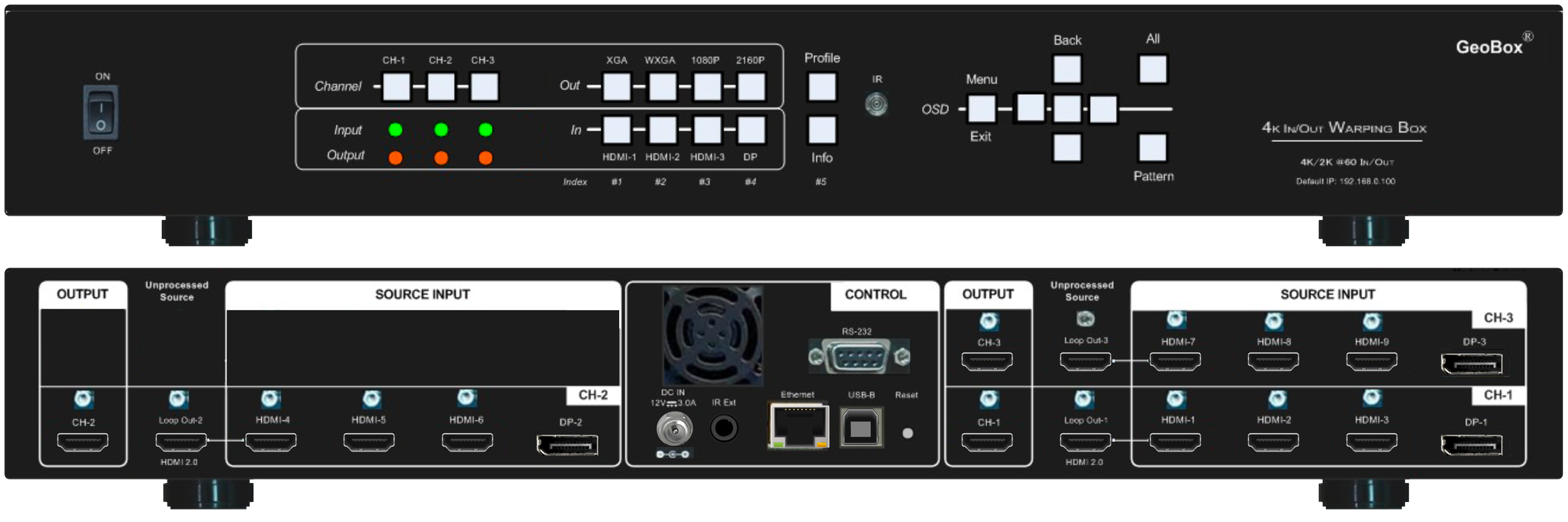

UD103 is a three-channel version

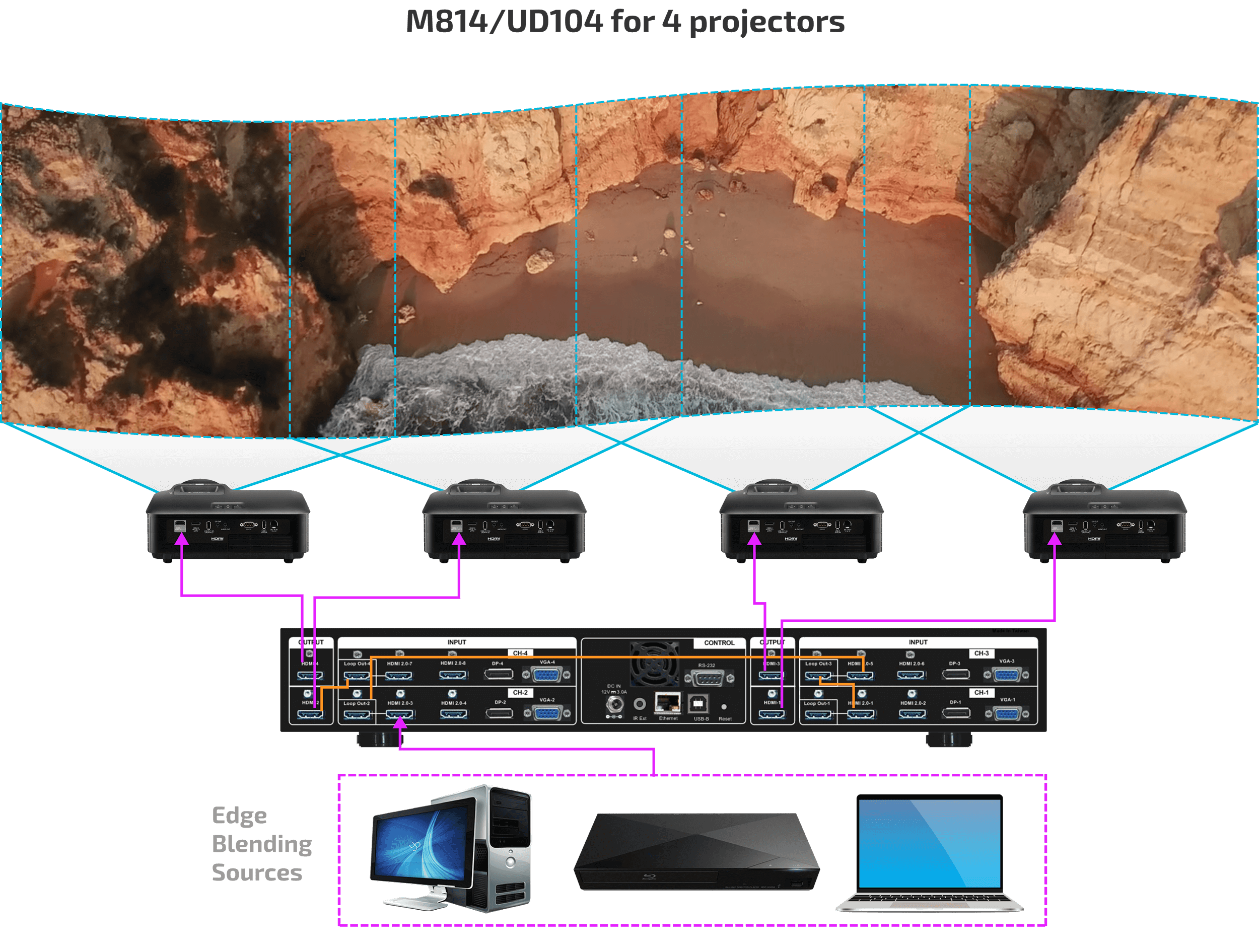

UD104 is a four-channel version

Product Description

The UD100 is a powerful video processing unit designed for advanced projection applications. With 4 input ports and HDMI 2.0 output and loop through, the UD100 supports up to 7680x2160 @30Hz and 7680x1200 @60Hz input resolution with 4:4:4 complete color sampling. The DisplayPort input can handle up to 7680x4320 @30Hz. The unit is integrated with a 10-bit high-end processor, motion-adaptive de-interlace, low-angle smooth algorithm, and 3:2/2:2 pull-down and supports non-VESA standard input timings. The programmable EDID optimizes input timing for the best video result.

Advanced warp technology is built into the UD100, allowing for edge blending and sophisticated geometry alignment up to 17x9 control points via front panel keypads, IR controller, USB, WebGui, and Ethernet. Separate R, G, and B gamma correction for edge blending region color fine-tuning, individual color correction for each output, and 9 regions black level uplift compensate for light leakage in the projector. Users can see real-time geometry and color adjustments to get optimized results.

The HDMI loopout supports a daisy chain connection with the exact input resolution, allowing multiple units to cascade for larger displays. The video wall function is designed to crop and allocate source images for each projector and set overlap pixels for edge blending. PIP (picture in picture), POP (side by side), and 3/4 split view Multiviewer functions are built-in, and PIP image size is from 320x180 up to 1920x1200. The UD100 allows for quick, seamless central/sub-image swaps and displays multiple windows (up to 16 input contents) on the screen from one UD104.

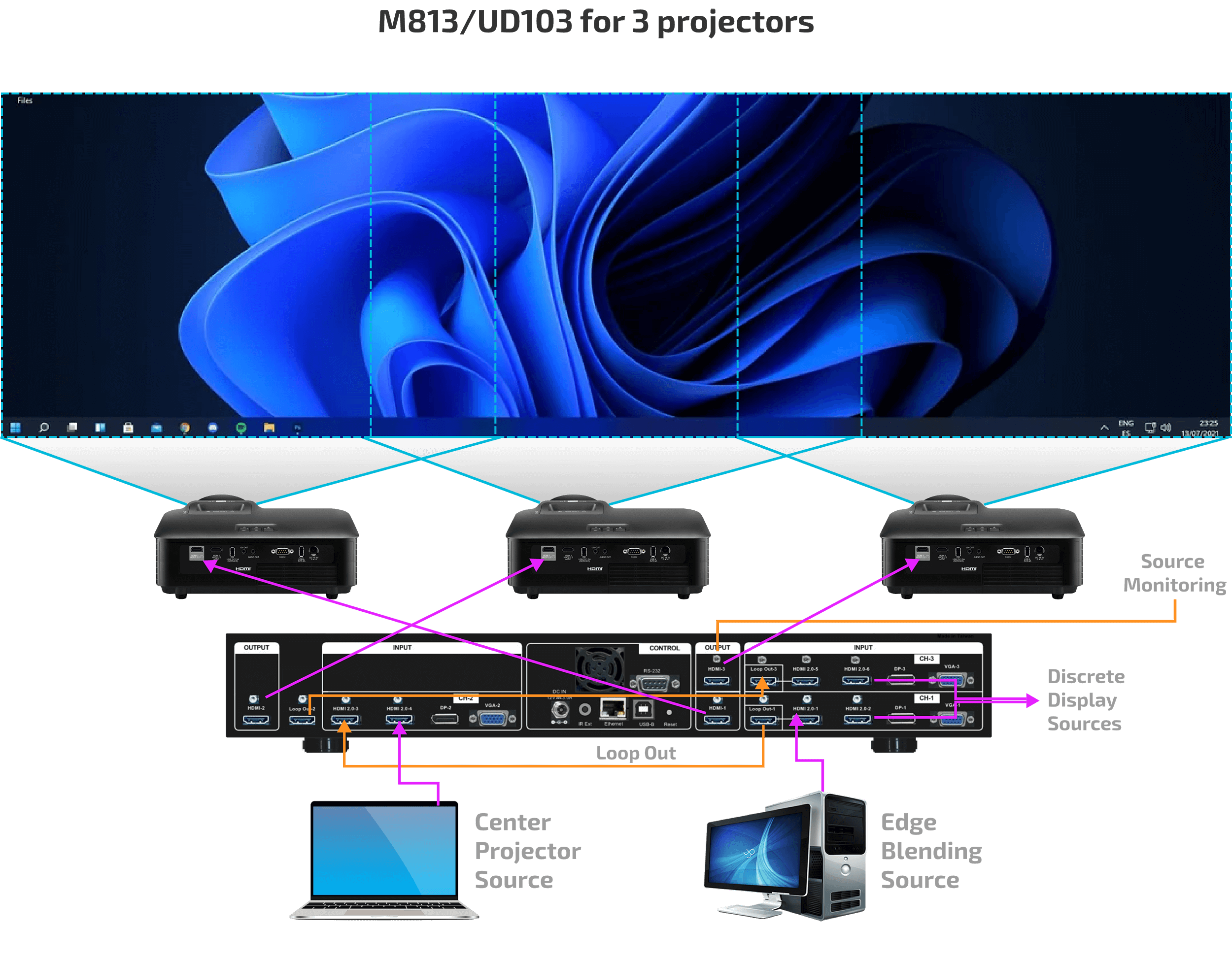

UD100 is an ideal solution for simulation, connecting with inputs from multiple PCs and combining them into one seamless image. It also provides flexible displays in edge blending systems, supporting 1+1+1 independent display, 1+2 (two blended projectors), and all-in-one (three blended). The UD100 can execute edge blending with the projector in the portrait position without rotating the source image, increasing image height. It is a good fit with a laser projector without the limitation in installation angle.

With the UD100, users can replace high-end projectors with low-cost projectors without lens shift, warp, and edge blending. It provides an easy configuration, a low entry barrier, and a cost-effective, reliable, and flexible solution for your projection needs.

UD100 series has 4 models available:

UD101 is a single-channel version

UD102 is a two-channel version

UD103 is a three-channel version

UD104 is a four-channel version

Featured Highlights

  • Control 4k UHD projector edge blending on flat, curved and 360 degree screen

  • Support max input of 4096×2160@60hz or 7680×2160@30hz and true 4K output

  • Modularized design to control from one to four projectors in one box

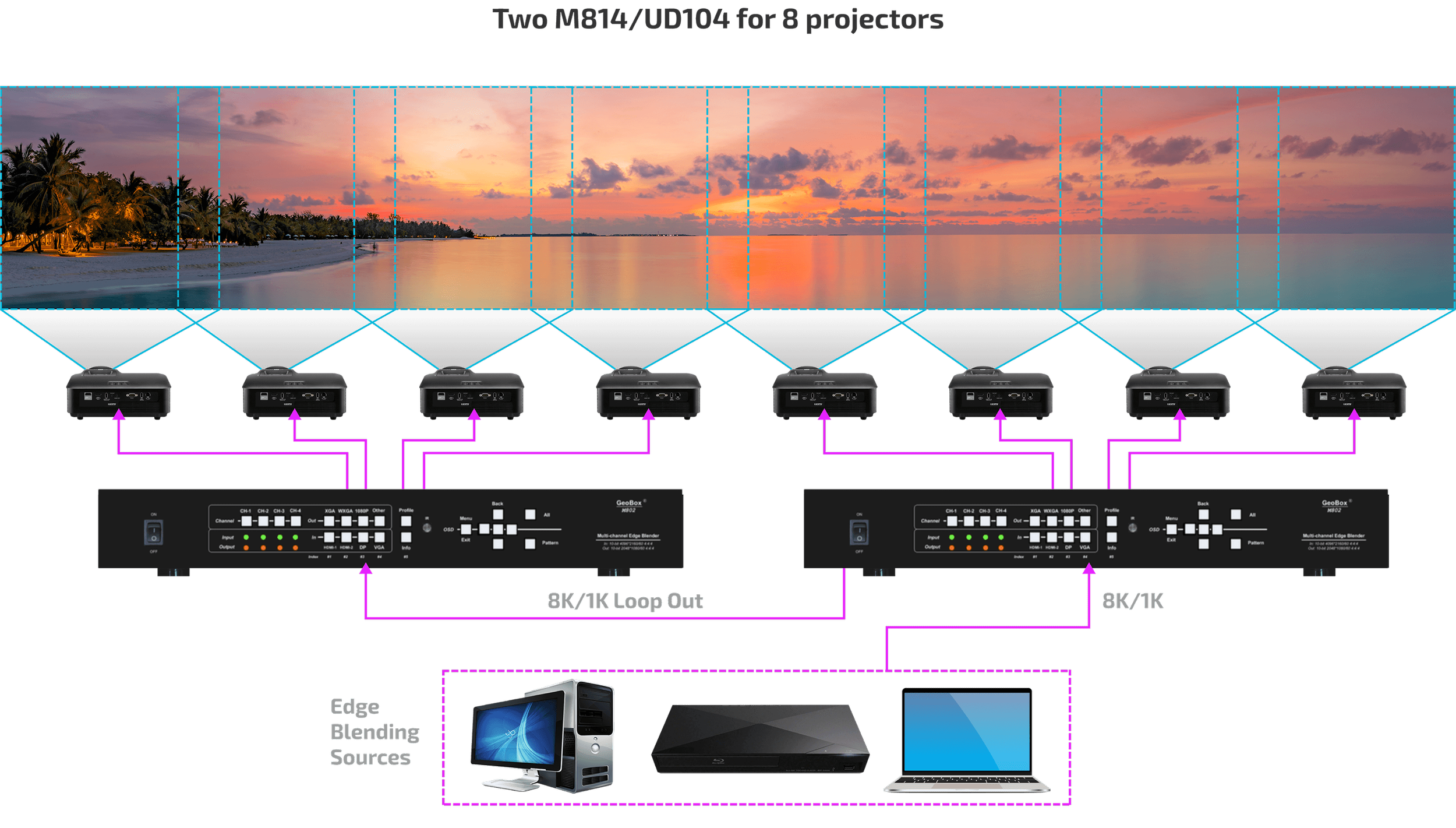

  • Support multiple unit cascade through HDMI loop through for controlling more than four projectors

Specifications

Working Environment:

  • Each model has 1-4 processing modules:

    • UD101: a single processing module

    • UD102: dual processing modules

    • UD103: 3 processing modules

    • UD104: 4 processing modules

  • Operating temperature: 104°F

  • Operating humidity: 10-90% RH

Input:

  • 3x HDMI 2.0b, 1x DP1.4

  • Input can be seamlessly switched within the processing module

  • Input resolution:

    • DisplayPort: 7680 x 4320 @30Hz

    • HDMI: 7680 x 2160 @30Hz, 7680 x 1200 @60Hz, 4096 x 2400 @50Hz, 4096 x 2160 @60Hz

  • Supports progressive and interlaced RGB/YUV signal, 4:4:4 chroma sampling, up to 30 color bits

  • Supports non-VESA standard input timings for easy connection with various signal sources

  • HDCP compliance:

    • Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3

    • Output: HDCP V2.0/V1.4

Output:

  • 1x HDMI 2.0

  • Loop output: 1x HDMI 2.0b for audio, monitoring, and daisy chain connection

  • 16 selectable outputs: HDMI 2.0 up to 4096 x 2160 @60Hz, progressive 4:4:4 RGB

  • 2 frames system latency: 33ms (@V=60Hz)

Geometry adjustment:

  • Warp engine for geometry alignment up to 17x9 control points

  • Maximum geometry adjustment up to 1200 pixels in both H&V directions for each corner

  • Support W shape Corner Wall adjustment in H&V directions up to +_1200 pixels

  • Support Linearity Grid Line adjustment for quick H&V line position alignment. It is good for the line gap adjustment on curved screen displays.

  • Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction

  • 9 regions black level uplift to compensate light leakage from projector optical system

  • Edge Mask following the result of geometry alignment up to 500 pixels

  • Edge Mask with 8 control points up to 900 pixels (1800 pixels when output resolution is 4k/2k) at each control point in H&V directions

Other features:

  • Embedded video wall function for image split, cropping, edge blending overlap pixel setting, and aspect ratio adjustment

  • Selectable geometry alignment grid size from 8-120 pixels in the H&V direction. The default is 32 x 32 pixels.

  • Selectable grid pattern color with optional transparency to allow the user to apply an external test pattern

  • Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift

  • OSD menu location is adjustable

  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine

  • 3D motion adaptive de-interlace

  • Passive 3D: Decode 3D input signal into RH/LH eye frame output for passive 3D display

  • 3D format conversion: Convert 3D input signal into Side by Side, Top/Bottom, and frame sequential output signal for passive 3D and active 3D displays

  • Frame lock function to get perfect synchronized outputs in multi-unit application

  • Frame rate conversion and 50Hz in/out function to eliminate image frame drop or repeat

  • xvYCC & 8/10/12-bit deep color processing

  • HDR 10 input signal processing with SDR full-color RGB 4:4:4 output

  • Individual color and white balance adjustment in each processing channel

  • 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/2k 60Hz input signal

  • PIP/PBP function with PIP image size from 320180 up to 19201200 resolution with flexible position and adjustable aspect ratio. 2/3/4 split view POP is integrated within each channel

  • Quick, seamless swap between two input signals in each channel

  • Selectable and programmable EDID in the range: H=1024-4080, V=720-3840

  • User can save up to 10 settings that can be recalled by front panel keypads, remote controller, RS232, USB, or network

  • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)

  • CE/FCC/RoHS Certified

Specifications:

  • Working environment: 104°F, 10-90% RH

  • Control: keypads, IR, RS232, USB, Ethernet

  • System settings can be stored and backup in the PC

  • Power supply: DC 12V 2A-5A

  • 30 month warranty

Power consumption:

  • UD101: DC 12V/1.1A, 13.2W

  • UD102: DC 12V/2.1A, 25.2W

  • UD103: DC 12V/3.1A, 37.2W

  • UD104: DC 12V/4.1A, 49.2W

Dimensions (Body only):

  • UD101: 11.9" x 7.5" x 1.6", 2.6 lbs

  • UD102-104: 17.3" x 7.5" x 2.3", UD102: 5.5 lbs, UD103: 6.0 lbs, UD104: 6.4 lbs
