NETGEAR AV Line M4250-40G8F-PoE+ (GSM4248P)

40x1G PoE+ 480W and 8xSFP Managed Switch

Switching was engineered for 1G AV over IP with rear-facing ports, ensuring a clean integration in AV racks. Pre-configured for out-of-the-box functionality!

Data Sheet

Brochure

Product Description

Unveiling the NETGEAR AV Line of M4250 Switches – meticulously crafted for audio/video professionals, supported by dedicated service. Engineered from the ground up for the booming AV over IP market, the M4250 seamlessly integrates years of networking expertise from the M4300 and M4500 series with best practices from leading experts in the professional AV realm.

Built to cater to the widespread use of 1Gbps codecs, the AV Line of M4250 ensures optimal performance with PoE+, Ultra90 PoE++, and rear-facing ports, ensuring a neat integration into AV racks. These switches come pre-configured for standard audio and video signals, with an AV user interface offering customization through port-based profiles. Dante, Q-SYS, and AES67 profiles are available for audio, along with an AVB profile requiring a separate license. On the video front, the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante, and more, including mixed audio/video/control profiles. Simplifying connectivity, NETGEAR IGMP Plus™ brings automation when connecting multiple, standalone switches or with M4300 and M4500 switches.

Featured Highlights

  • Pre-configured for out-of-the-box use - NETGEAR IGMP PlusTM enables instant multicast functionality for most AV over IP installations.

  • Dedicated AV web-based GUI interface - Unique interface designed for the AV professional with color-coded, port-based profiles

  • Profiles for common audio protocols - Quickly assign profiles to Dante, AES67, and AVB audio configuration ports. AVB Requires a separate license

  • Video profiles built-in - Special profiles for NVX, SVSI, Q-SYS, and Dante video profiles can be easily assigned to ports as needed

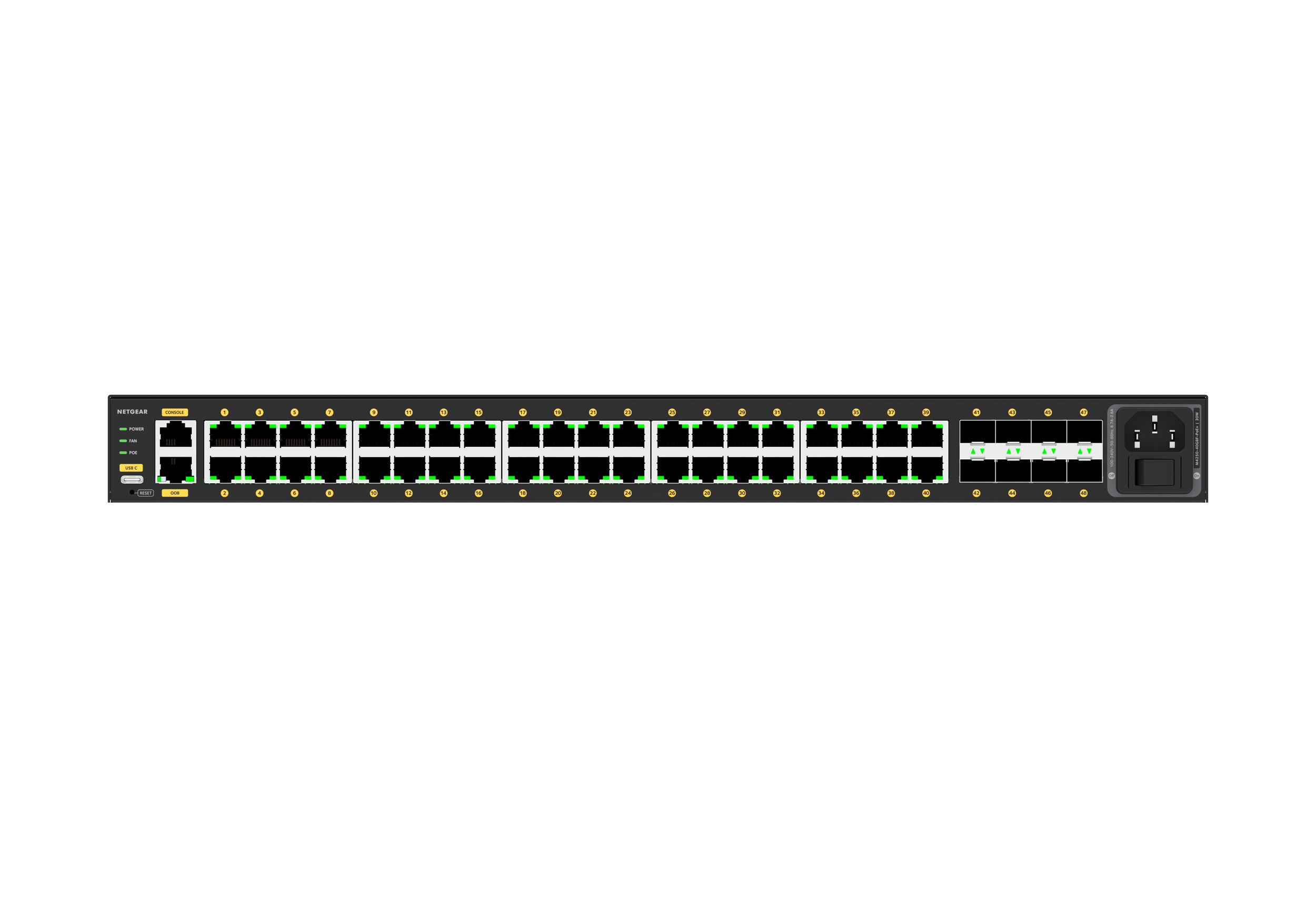

  • Rackmount versatility - 1U, 200mm deep rackmount with all power and Ethernet ports on the back

  • Reversed mounting possibility - Possible reversed mounting with ports in the front, including recessed mounting to protect cables

  • Universal mounting availability - Mounting outside the rack is made possible with bottom M5 and front M10 threaded holes

  • Adjustable fan functionality - Quiet mode with 30dB@25ºC (all ports used, 125W PoE), fanless mode with max 25ºC ambient, 35ºC internal sensor and 80W PoE

  • Multi-switch audio or single-switch video deployments - 8x1G PoE+ with 125W PoE budget with 2x1G additional ports and 2xSFP 1G fiber uplinks

  • Layer 2/Layer 3 Switching - Common Layer 2 and Layer 3 switching engines across all M4250 models

  • Control methods abound - Built-in IT web GUI, console, telnet, and SSH consistent with other NETGEAR M4xxx series.

  • Standard network features - Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2

Specifications

Technical
Primary Port Speed:     1 Gigabit
Number of Ports:     48 (40x 1G PoE+, 8x SFP)
PoE Ports / Budget:     40 PoE+ (30W/port), 480W Budget
IGMP Support:   Enhanced (NETGEAR IGMP Plus™)
Jumbo Frame Support:     Yes, up to 12kb
AVB Support:     Yes. Electronic license required, activation key sent via

email (AVB4248P-10000S)
Acoustics: Fanless or 47dB@25ºC
Mechanical
Depth     15.75 (400mm)
Height     1.7"(43.2mm) [H]
Width     17.32" (440mm)
Weight     12.9lb (5.85Kg)
Power Consumption :    With PoE: 624.8W/2133.07Btu/hr
Without PoE:     59.5W/203.13Btu/hr
Standby without any port connection:    46.4W/158.41Btu/hr
