M811L: Advanced Warping and Edge Blending Solution

The M811L is a powerful warping box designed for seamless projector displays, offering precision geometry alignment, edge blending, and flexible image processing.

High-Performance Connectivity & Processing

  • Input Ports: 2× HDMI, 1× DP, 1× VGA

  • Output Port: 1× HDMI

  • Resolution Support: Up to 7680x2160 @30Hz and 5760x1200 @60Hz with 4:4:4 full-color sampling

  • Advanced Processing: 10-bit high-end processor, motion-adaptive de-interlacing, low-angle smooth algorithm, and 3:2/2:2 pull-down for superior video quality

Advanced Warping & Edge Blending

  • Geometry Alignment: Up to 120x68 control points for precision adjustments

  • New Features:

    • Linearity Grid Line Adjustment with 17x9 control points for precise line movement

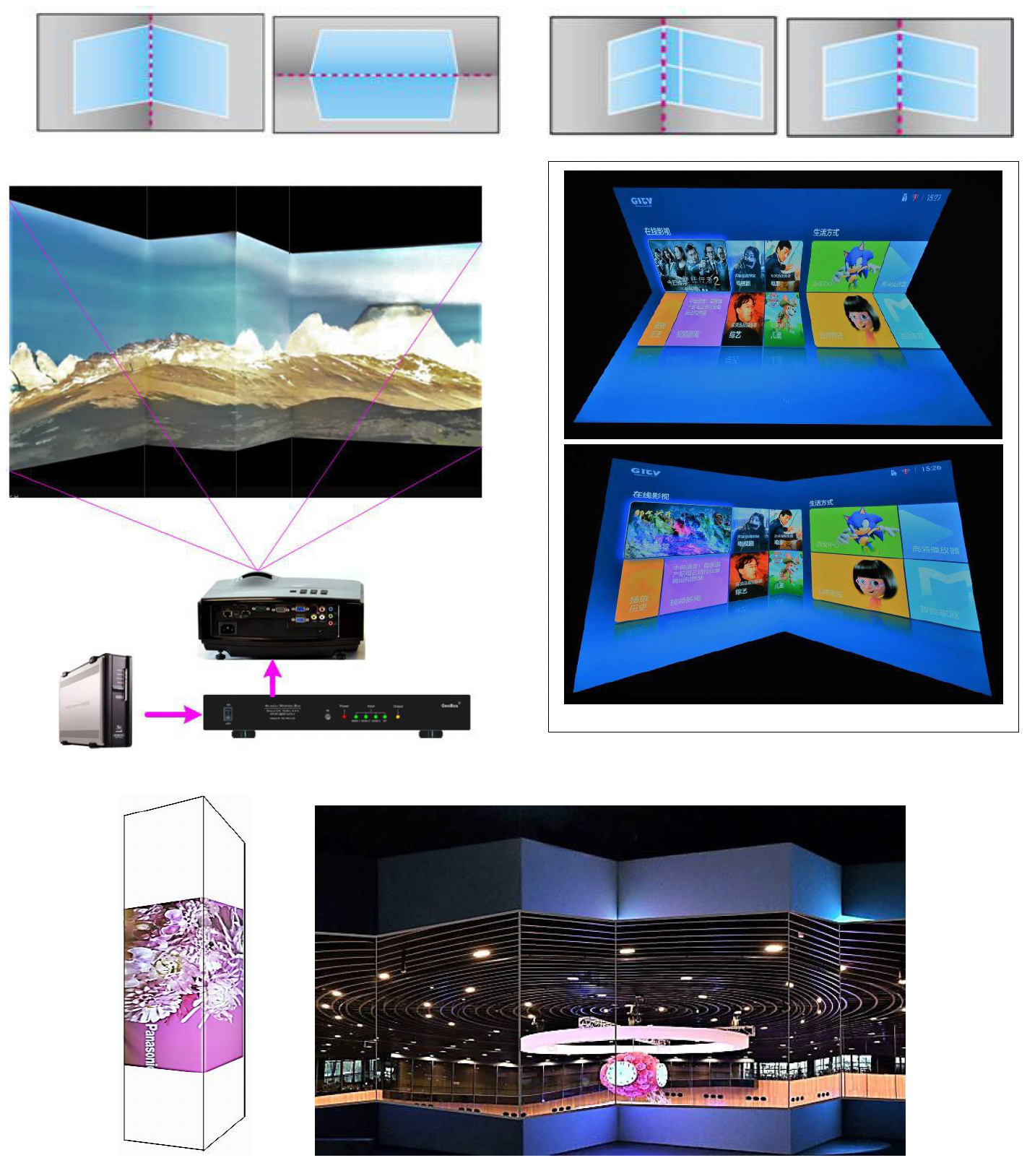

    • "W" Type Corner Wall Adjustment for seamless corner projections

  • Video Wall Function: Easily split and allocate source images

  • Overlap Function: Crop, shift, and adjust image aspect ratios

Versatile Display Features

  • HDMI Loop-Out: Monitor signal sources and enable multi-unit daisy chaining

  • Picture-in-Picture (PIP) & Picture-outside-Picture (POP):

    • Adjustable PIP image size (320x180 to 1920x1200)

    • Flexible aspect ratio and position adjustments

  • Custom Overlap Function: Modify image sizes, aspect ratios, and cropping within PIP windows

Ideal for Various Applications

The M811L excels in:
✔ Image Stacking & Geometry Alignment
✔ Edge Blending & Multi-Projector Setup
✔ PIP/POP & Multi-Window Display
✔ Image Format Conversion & De-Interlacing
✔ Image Rotation & Portrait Display for Mobile Mirroring

Offering ease of use, cost efficiency, reliability, and flexibility, the M811L is the ultimate projection and display enhancement solution.

Featured Highlights

  • Modulerized design of edge blending processor

  • Up to 120×68 warp control point

  • Embedded video wall function, no image splitter is required.

  • 4K loop out port for daisy chain connection in cascade application.

  • Easy configuration via IR remote, PC tool, or WebGUI.

Specifications

Input:

  • 2x HDMI 2.0b

  • 1x DP1.2a

  • 1x VGA

Output:

  • 1x HDMI 1.4b

Loop output:

  • 1x HDMI 2.0b for cascade.

HDCP Compliance:

  • Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3

  • Output: HDCP V1.4

Input Resolution:

  • 7680x2160 @30Hz

  • 5760x1200 @60Hz

  • 4096x2160 @60Hz

Input Signal:

  • Progressive and interlaced RGB/YUV signal

  • 4:4:4 Chroma sampling

  • Up to 30 Color bits

  • Supports non-VESA standard input timings for easy connection with various signal sources.

Output Resolution:

  • Up to 2048x1080/60, progressive 4:4:4 RGB

  • 15 selectable output resolutions

Latency:

  • 2 frames system latency: 33ms (@V=60Hz)

Warp Engine:

  • Geometry alignment up to 17x9 control points in IR control and GCT PC Tool

  • 120x68 grid pixel position fine-tune

  • Each control point can be adjusted with 1/4 pixel/step and moved up to 12.5 pixels adjustment range

  • Maximum adjusting points are 100 points

  • Geometry adjustment range up to 600 pixels in both H&V directions

  • Supports Corner Wall adjustment in H&V at a flexible location

  • Supports Linearity Grid Line adjustment for quick H&V line position alignment

  • Edge Mask with 8 control points up to 900 pixels at each control point in H&V directions

Embedded Video Wall Function:

  • Image split, cropping, and position adjustment

Grid Pattern:

  • Selectable grid pattern size from 8-120 pixels in the H&V direction

  • Default is 32*32 pixels

  • Selectable grid pattern color with optional transparency to see background image for external pattern

Aspect Ratio Adjustment:

  • Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift

Processor:

  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine

  • 3D motion adaptive de-interlace

  • Support xvYCC & 8/10/12-bit deep color processing

  • Individual color adjustment in each processing channel

  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment

PIP/POP Function:

  • PIP image size from 320180 up to 19201200 resolution with flexible position and adjustable aspect ratio

  • This function is not available when the main image is 90/270 degrees rotation

Selectable and Programmable EDID:

  • In the range: H=1024-3840, V=720-2400

User Settings:

  • User can save up to 5 settings and can be recalled by remote controller, RS232, USB, or network

ESD Protection:

  • ±15kV (Air-gap discharge), ±8kV (Contact discharge)

Working Environment:

  • 40℃, 10-90% RH

Control:

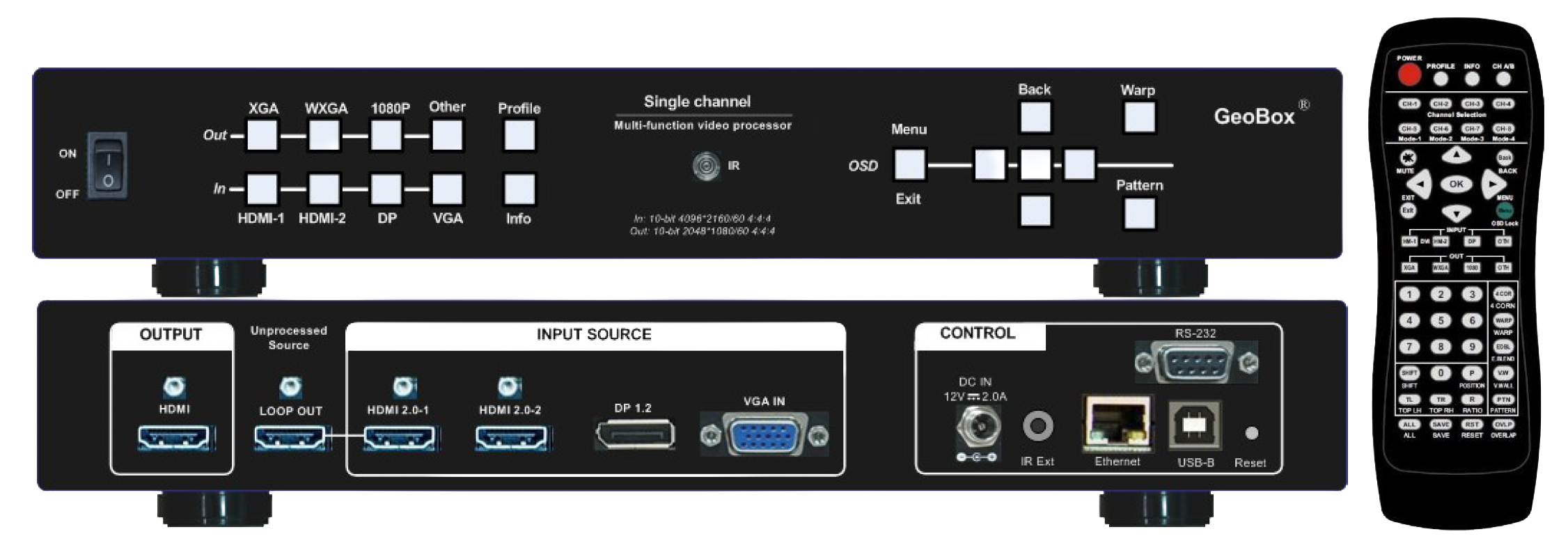

  • Keypads, IR, RS232, USB, Ethernet

Power Supply:

  • DC: 12V 2A

  • Max. Power consumption: 12V/0.7A, 8.4W

Dimensions:

  • (Body only): Without protruding parts:

    • Length: 11.93 inches

    • Width: 6.46 inches

    • Height: 1.73 inches

Weight:

  • (Body only): 3.31 lbs

30 Month Warranty
