Multi-Video Edge Blending Processor

Ideal solution for simulation and immersive application

M810 Series

4k in/2k out Modular Edge Blending Processor

M810 series has 4 models available:

M811 is a single-channel version

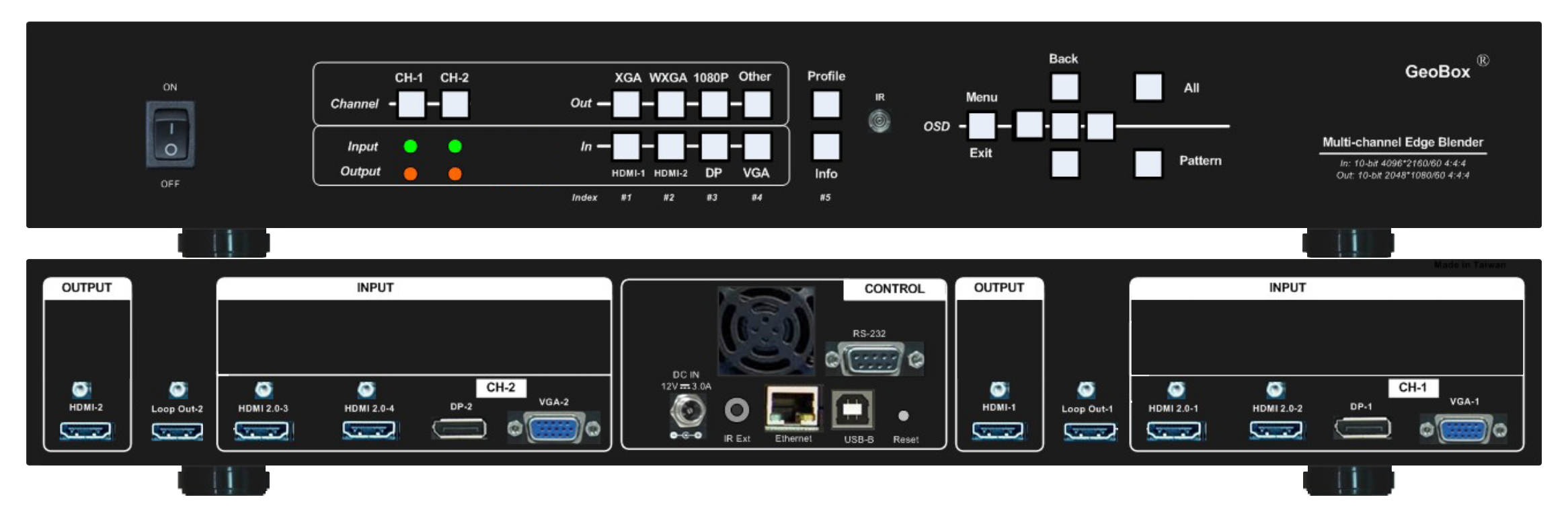

M812 is a two-channel version

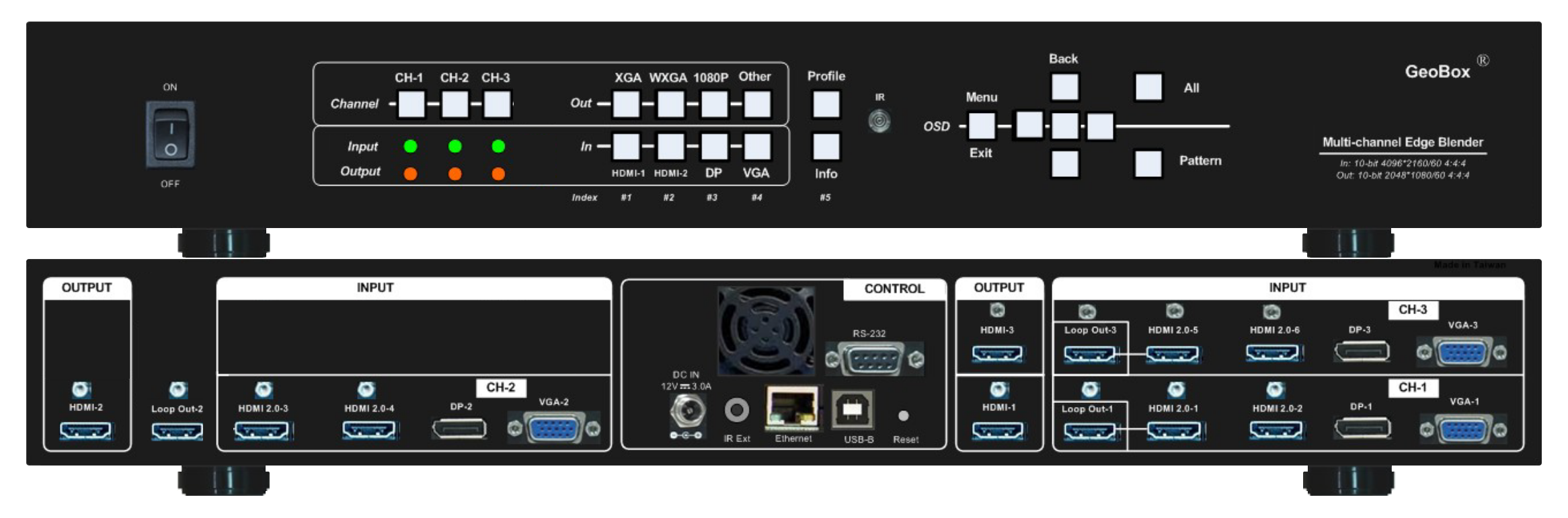

M813 is a three-channel version

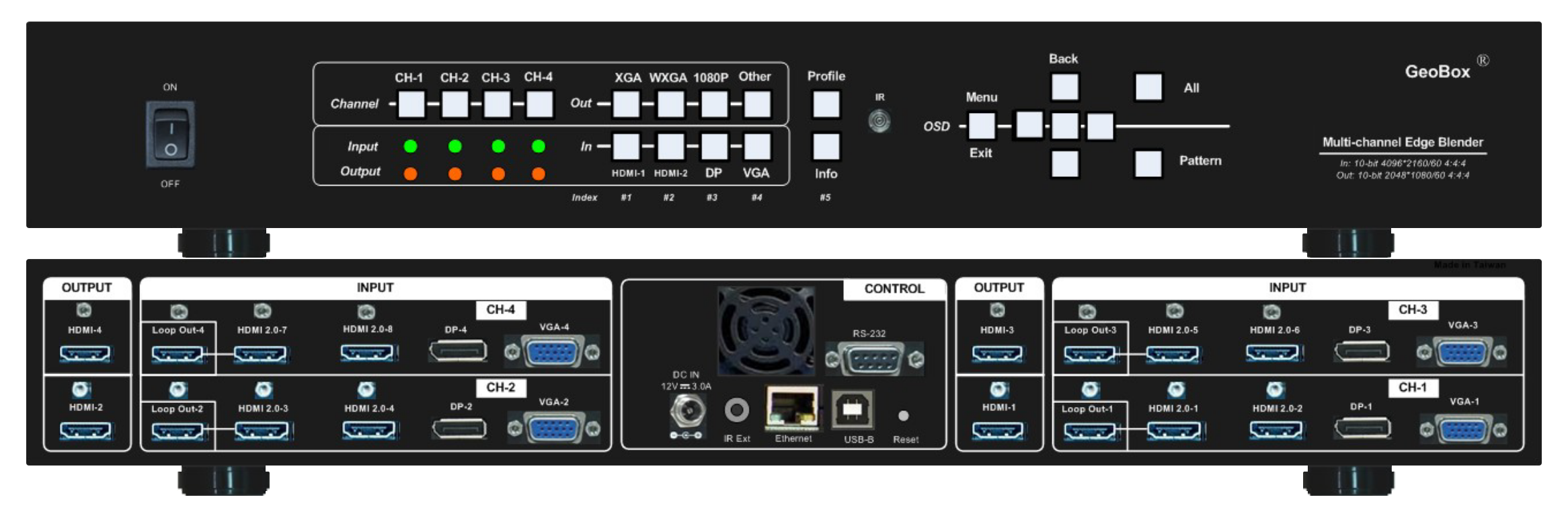

M814 is a four-channel version

User Guide

Data Sheet

Product Description

M810 Series: Your Comprehensive Edge Blending and Projection Mapping Solution

Unlock the full potential of your visuals with the M810 series, the ultimate solution for edge blending and projection mapping. Designed for seamless integration and exceptional performance, the M810 series offers everything you need to transform your projection experiences.

Versatile Connectivity and Outstanding Performance

  • Connectivity:

    • 4 Input Ports: 2x HDMI, 1x DP, 1x VGA

    • 1 HDMI Output

  • Resolution Support:

    • Up to 7680x2160 @30Hz, 7680x1200 @60Hz, or 4096x2160 @60Hz with 4:4:4 full-color sampling

    • Output: Up to WUXGA/2048x1080 @60Hz

  • High-End Performance:

    • Powered by a 10-bit processor

    • Supports non-VESA standard input timings for superior results

Advanced Warp Technology for Precision Control

  • Geometry Alignment & Edge Blending:

    • Perform edge blending and intricate geometry alignment with up to 120x68 control points

    • Adjust visuals via IR controller, USB, WebPage, or Ethernet

  • New Features:

    • Linear Grid Line Adjustment for precise line movement

    • "W" Shape Corner Wall Adjustment for 90-degree corner alignment

  • Color & Light Control:

    • Separate R, G, B gamma correction for edge blending fine-tuning

    • Individual color correction for each output

    • 9 regions for black level uplift to compensate for light leakage

  • Real-Time Adjustments: Instantly optimize geometry and color for flawless results

Effortless Daisy Chaining and Video Wall Function

  • HDMI Loop-Out:

    • Daisy-chain up to 8k/2k @30Hz or 8k/1k @60Hz

    • No need for additional HDMI splitters

  • Video Wall Function:

    • Crop and allocate the source image for each projector

    • Set overlap pixels for smooth, seamless edge blending

  • Curved Edge Blending: Achieve complete curved edge blending with just remote controller and Ethernet

Flexible Displays with PIP and POP Functions

  • PIP & POP:

    • Standard PIP (picture in picture) and POP (side by side) options for flexible displays

    • Display up to 3 different projects for 3x projector edge blending:

      • 1+1+1 Independent Display

      • 1+2 (Two Blended Projectors)

      • All-in-One (Three Blended Projectors)

  • Ideal for Classroom Applications: Enjoy ultimate flexibility for immersive and educational environments

Perfect for Simulation and Immersive Applications

  • Simulation Excellence: Enhance resolution by blending from multiple PCs

  • 24/7 Operation: Designed to run non-stop, providing reliability and consistent performance

  • Cost-Effective Solutions:

    • Replace high-end projectors with affordable alternatives

    • Eliminate the need for lens shift, warp, and edge blending

  • Simple Configuration: Low entry barrier, cost-effective, reliable, and flexible

M810 Series – A New Era of Visual Excellence

The M810 series redefines the possibilities of projection mapping and edge blending. Unlock immersive, cost-effective, and easy-to-manage solutions for your most complex visual projects.

M810 Series Models:

  • M811: Single-channel version

  • M812: Two-channel version

  • M813: Three-channel version

  • M814: Four-channel version

Transform your projection and edge blending applications with the M810 series. Experience the future of visual excellence today.

Featured Highlights

  • Modulerized design of edge blending processor

  • Up to 120×68 warp control point

  • Embedded video wall function, no image splitter is required.

  • 4K loop out port for daisy chain connection in cascade application.

  • Easy configuration via IR remote, PC tool, or WebGUI.

Specifications

Processor:

  • M811: Single module processor

  • M812: Dual module processor

  • M813: Triple module processor

  • M814: Quad module processor

Processing module:

  • Input: 2x HDMI2.0b, 1x DP1.2a and 1x VGA

  • Output: 1x HDMI1.4

  • Loop output: 1x HDMI2.0b for daisy chain connection

HDCP Compliance:

  • Input: HDMI: HDCP V2.2/V1.4, DP: HDCP: V1.3

  • Output: HDCP V1.4

Input Resolution:

  • 76802160 30Hz, 76801200 @60Hz, 4096*2160 60Hz

  • Supports progressive and interlaced RGB/YUV signal

  • 4:4:4 Chroma sampling

  • Up to 30 Color bits

  • Support non-VESA standard input timings

Outputs:

  • 15 selectable Outputs: HDMI1.4 up to WUXGA, 2048*1080/60, progressive 4:4:4 RGB

  • 2 frames system latency: 33ms (@V=60Hz)

Geometry Adjustment:

  • Warp engine for geometry alignment up to 17*9 control points in IR control and GCT PC Tool

  • 120x68 grid pixel position fine-tune

  • Each control point can be adjusted with 1/4 pixel/step and moved up to 12.5 pixels adjustment range

  • Maximum adjusting points are 100 points

  • Geometry adjustment range up to 600 pixels in both H&V directions

  • Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction

  • 9 regions black level uplift to compensate light leakage from projector optical system

  • Edge Mask following the result of geometry alignment up to 500 pixels

  • Edge Mask with 8 control points up to 900 pixels in H&V directions at each control point

  • Support “W” type Corner Wall adjustment in horizontal and V type in the vertical direction

  • The maximum adjusting range is 1200 pixels

  • Support Linearity Grid Line adjustment for quick H&V line position alignment

Video Functionality:

  • Embedded video wall function for image split, cropping, and edge blend overlapped pixel setting

  • Selectable grid pattern size from 8-120 pixels in the H&V direction

  • Selectable grid pattern color with optional transparency to see background image for external pattern

  • Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift

  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine

  • 3D motion adaptive de-interlace

  • Frame lock function to get perfect synchronized outputs in all channels

  • Free-run mode provides a continuous signal to the output. No source searching is required in the projector when the input source change

  • Support xvYCC & 8/10/12-bit deep color processing

  • Support High Dynamic Range (HDR) input signal and convert it to SDR in the output

  • Individual color and white balance adjustment in each processing channel

  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel up to 4k/60 input

  • PIP/POP function with PIP image size from 320180 up to 19201200 resolution with flexible position and adjustable aspect ratio. This function is not available when the main image is 90/270 degrees rotation

  • Selectable and programmable EDID in the range: H=1024-3840, V=720-2400

  • User can save up to 5 settings and can be recalled by remote controller, RS

ESD Protection:

  •   ±15kV (Air-gap discharge), ±8kV (Contact discharge)

Working environment:

  • 45〫C, 10-90% RH

Control:

  • Keypads, IR, RS232, USB, Ethernet

  •   Save up to 5 system settings. System settings can be stored and backed up on a PC.

Power supply:

  • DC 12V 3.3A

Power consumption:

  • M811: 28.5 BTU/h (8.4W)

  • M812: 49 BTU/h (14.4W)

  • M813: 74 BTU/h (21.6W)

  • M814: 98 BTU/h (28.8W)

Dimensions (Body only):

  • Without protruding parts:

    • M811: 11.9" x 6.5" x 1.7"

    • M812-M814: 17.3" x 7.5" x 2.3"

  • With protruding parts:

    • M811: 11.9" x 6.9" x 2.2"

    • M812-M814: 17.3" x 7.9" x 2.7"

Weight (Body only):

  • M811: 3.3 lbs.

  • M812: 5.5 lbs.

  • M813: 5.7 lbs.

  • M814: 6.2 lbs.

Certification: CE/FCC/RoHS

Warranty: 30-Month warranty.
