Introducing the G814: Your Ultimate Quad Channel Curved Screen Edge Blending Processor
The G814 is a powerhouse, a quad-channel professional curved screen edge blending processor designed to elevate your visual experiences to new heights. Whether you're into sophisticated edge blending, image warping, stacking, or projection mapping, the G814 is your all-in-one solution. Comprising two G812 processing modules, it can also function as a dual G812 setup.
Unmatched Connectivity and Processing Power
With eight inputs—4x HDMI, 2x DP, and 2x VGA—coupled with four HDMI outputs, the G814 offers unparalleled connectivity. It supports input resolutions up to 7680x1200 @30Hz and 4096x2160 @60Hz with 4:4:4 full-color sampling, while its output capabilities reach up to 2048x1080 @60Hz. Under the hood, a 10-bit high-end processor, motion adaptive de-interlace, and a low-angle smooth algorithm ensure your content shines. Non-VESA standard input timing support means compatibility with various input sources.
Advanced Warp Technology for Precision Geometry
Our advanced warp technology, seamlessly integrated into the G814, empowers you to achieve precise geometry alignment and curved screen edge blending. Control is at your fingertips through the remote controller, WebGui, USB, or Ethernet. Fine-tune with confidence, thanks to a maximum of 17x9 grid control points with 120x68 pixel position adjustments. The Linearity Grid Line Adjustment and "W" type Corner Wall image adjustment enhance your geometry alignment toolkit.
Perfect Color Control and Uniformity
The G814 offers separate RGB gamma correction for edge blending color fine-tuning and individual color correction for each output. Achieve fine pixel color uniformity and optimize visuals with nine regions for non-edge blending area black level uplift. Witness real-time geometry and color adjustments for an optimized visual experience.
Seamless Connectivity and Video Wall Function
Experience hassle-free connectivity with HDMI 2.0 loop-out support, enabling daisy-chaining of multiple units, reaching up to 7680x1200 @30Hz. The G814 simplifies complex setups with its video wall function, allowing you to crop and allocate source images for each projector and set overlap pixels for flawless edge blending. Bid farewell to PC software, video distributors, and splitters.
Customizable EDID and Versatile Input Support
The G814 is designed to support programmable EDID and non-VESA standard input. Create custom EDID timings ranging from 1024x768 to 3840x2400, optimizing your video performance with ease.
Cost-effective, Reliable, and Flexible
Say goodbye to high-end projectors, as the G814 allows you to switch to low-cost projectors without lens shift, warp, or edge blending. It offers an accessible configuration, a low entry barrier, cost-effectiveness, and unwavering reliability for professionals seeking a flexible visual solution.
Dual Power Supply Options for Your Convenience
The G814 boasts a dual power supply system, accommodating both AC power (100V-240V) and DC power (12V 2A) via an external DC 12V power adapter. When using AC power, you'll even have access to one DC 12V 1A output for signal extension. Your standard delivery includes an AC power cord for immediate setup.
Elevate your visual content to unprecedented levels with the G814. Experience the future of visuals with uncompromising edge blending, image warping, and projection mapping. Embrace the G814—it's where limitless possibilities meet unmatched performance.
Featured Highlights
With popular USB-C interface
APEdge blending
Up to 120×68 points of geometric alignment for sophisticated image warping.
Embedded video wall function, no image splitter is required.
4K loop out port for daisy chain connection in cascade application.
Easy configuration via IR remote, PC tool, or WebGUI.
Product Summary:

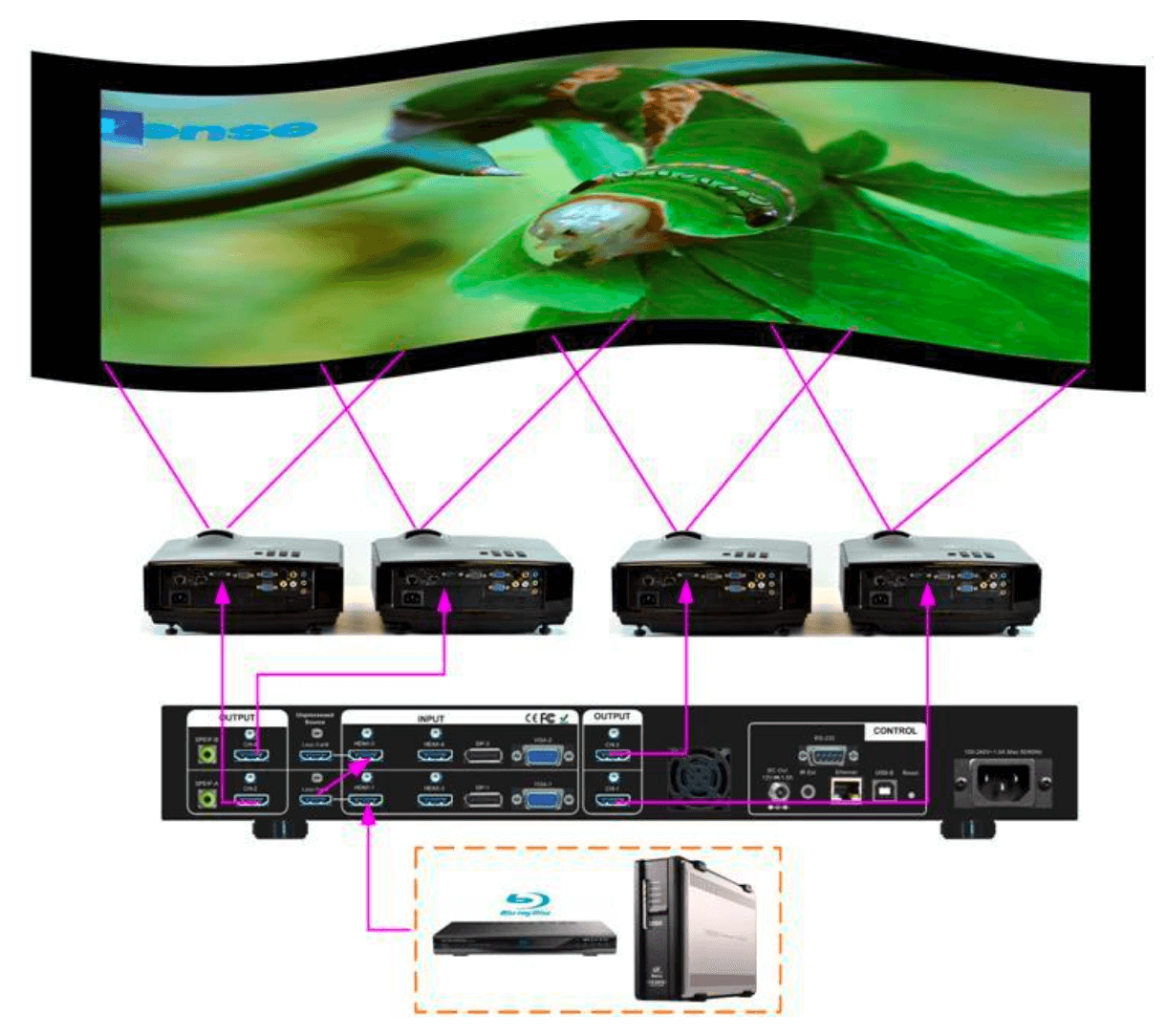

The GeoBox Edge Blending Processor offers seamless curved edge blending capabilities for up to four projectors from a single unit, with the option to control additional projectors by linking multiple processors. This innovative device incorporates advanced warp technology, enabling users to achieve exceptional performance even with cost-effective projectors. It operates as a self-contained hardware system, providing users with multiple control options, including IR remote, USB, RS232, or Ethernet, eliminating the need for additional PCs, Zero Clients, or software tools.
Specifications
Input:
2x HDMI 2.0b
1x DP1.2a
1x VGA
HDCP:
HDMI V2.2/V1.4 for G812
DP: HDCP: V1.3 for G812
Input Resolution:
4096x2160 @60Hz
7680x1200 @30Hz
Support:
Non-VESA Standard Input Timings
Output:
4x HDMI, Up to 2048x1080 @60Hz & WUXGA
Signal:
10 bits, 4:4:4 Chroma Sampling
Input Supports RGB/YUV Progressive and Interlaced Signals
Output is Progressive RGB
Loop Out:
2x HDMI Loop Out Ports
Geometry Alignment:
Up to 17x9 Control Points (IR Control and GCT PC Tool)
120x68 Grid Pixel Position Fine-Tune
1/4 Pixel/Step Adjustment Range
Maximum Adjusting Points: 100 Points
Geometry Adjustment Range: Up to 600 Pixels in Both H&V Directions
Latency:
Two Frame Latency: 33ms (at V=60Hz)
Edge Blending:
At 4 Edges Up to H=1920 Pixels, V=1200 Pixels
Independent RGB Gamma Correction
9 Area Black Level Uplift
Corner Wall Adjustment:

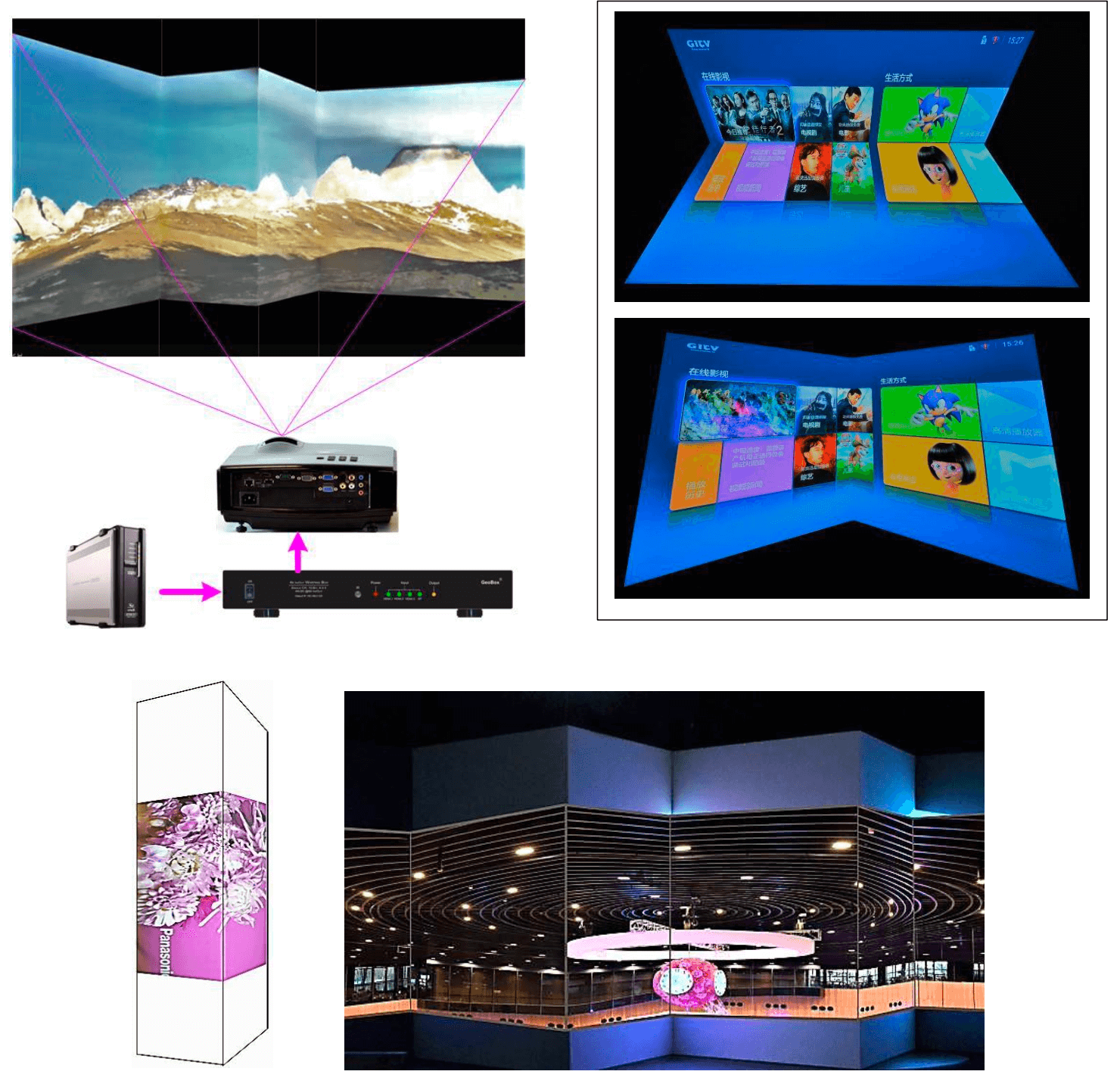

"W" Type Corner Wall Adjustment
Adjustment Range: 1200 Pixels in 4 Corners, Horizontal/Vertical, and Curve Points
Linearity Grid Line Adjustment:
Quick H&V Line Position Alignment via Remote Controller
Edge Mask:
Up to 500 Pixels Following the Result of Geometry Alignment
Up to 900 Pixels in H&V Directions Through 8 Control Points Around Image Border
Video Wall Function:
Image Split, Cropping, and Overlap Pixel Setting
Preset Output Resolution:
Up to 2048x1080 @60Hz
Support Refresh Rate: 24/30/50/60/120 in Some Output Timings
Color Processing:
Input Support xvYCC & 8/10/12-Bit Deep Color Processing
Individual Color and White Balance Adjustment in Each Output Channel
Rotation & Flip:
Individual 90/180/270 Rotation, Flip, Cropping, Scaling, and Color Adjustment in Each Channel
90/270 Degrees Rotation and Flip Only Available Under 4K/30Hz Input Resolution
Audio Outputs:
Embedded HDMI & SPDIF Audio Outputs
EDID:
Selectable and Programmable EDID in the Range: H=1024-3840, V=720-2400
ESD Protection:
±8kV (Air-Gap Discharge)
±4kV (Contact Discharge)
Power Supply:
Dual Power Supply in G810
AC 100-240V or DC 12V Power Supply
DC 12V 1A Output for Signal Extender (AC Power Supply)
Power Consumption (Without DC12V/1A Output):
AC240V 0.139A/33.4W, AC110V: 0.295A/32.5W
Power Consumption (With DC12V/1A Output):
AC240V: 0.139A/33.4W, AC110V: 0.295A/32.5W
Working Environment:
45°F, 10-90% Relative Humidity
Control:
IR, RS232, WebGUI & PC Tool for USB & Ethernet
Dimensions (Body Only):
17.32" x 6.77" x 2.28"
Weight (Body Only):
5.42 lbs
Certifications:
CE/FCC/RoHS Certified
Warranty:
30-month
