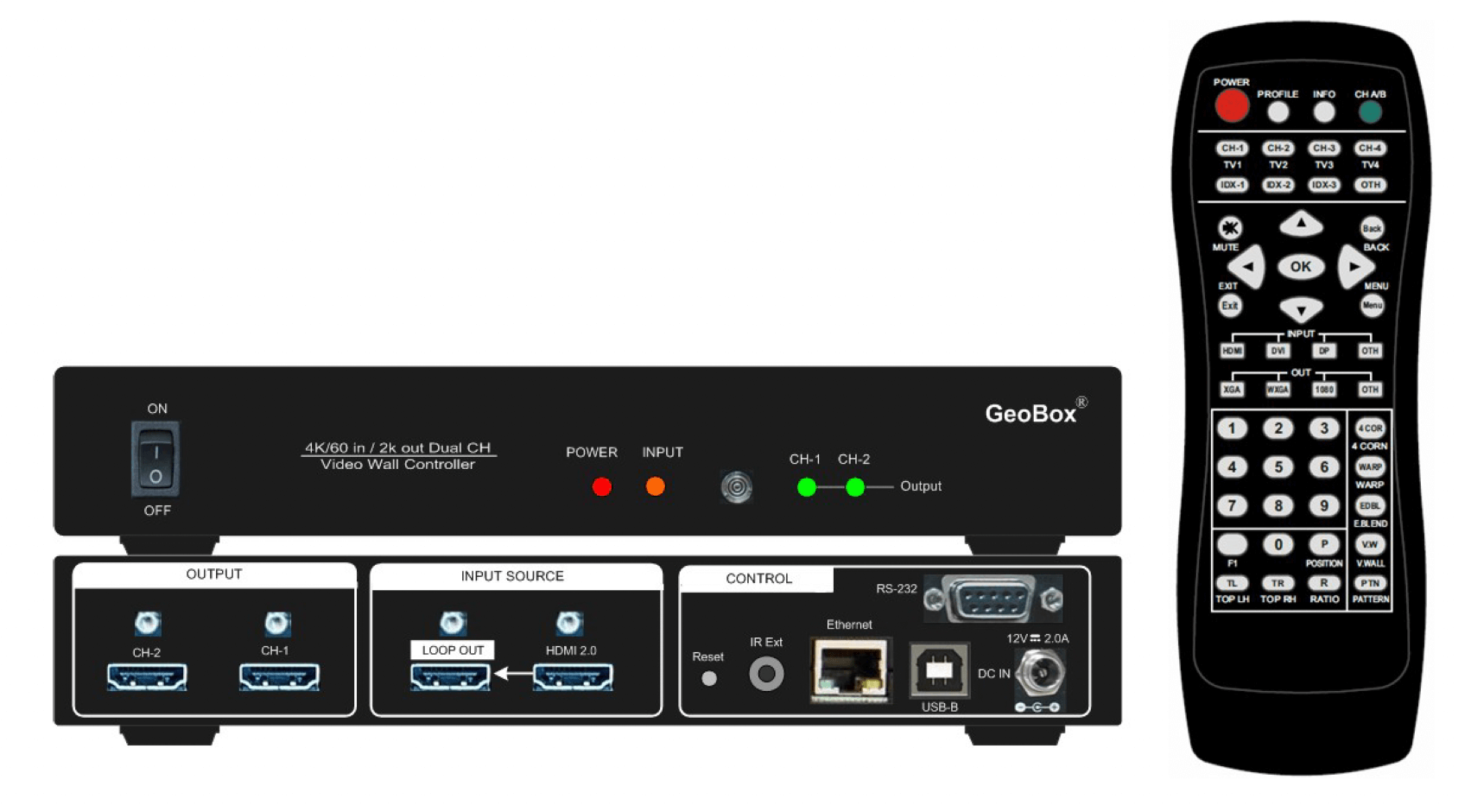

2 ch 4K in/out video wall controller

G406S

G406S Data sheet
G406S User Manual

User Guide

Data Sheet

Product Description

GeoBox G406s: The Ultimate Video Wall Solution

The GeoBox G406s is a powerful hardware system designed to elevate your video wall setup. Whether working with dual monitor video walls or scaling up to a 3x3 video wall, the G406s offer unmatched flexibility and performance.

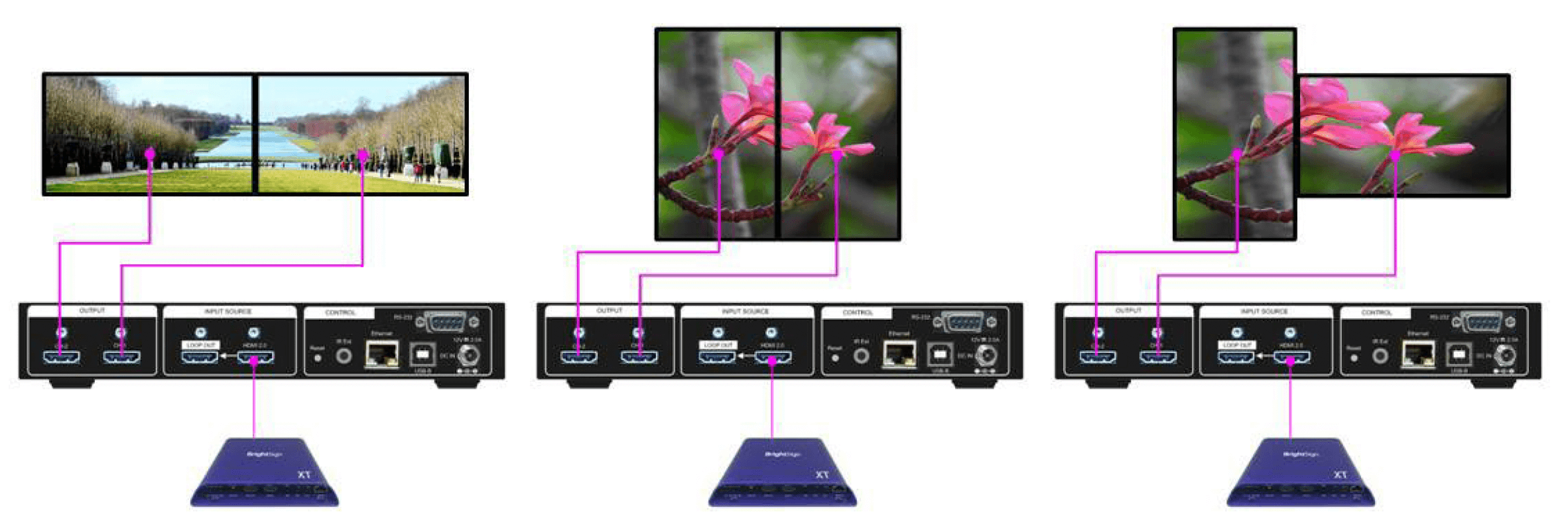

Versatile Video Wall Configuration

  • Dual Monitor Support:

    • Ideal for video walls with both portrait and landscape orientations

    • Cascadable with the GeoBox G408 to create an impressive 3x3 video wall

  • Edge Blending and Signal Splitting:

    • Perfect for splitting signal sources and setting overlap pixels for seamless projector edge blending

    • Connects to sources with varying resolutions, simplifying your setup and reducing configuration time

Pure Hardware Design for Ease of Use

  • Standalone System:

    • The G406s is designed as a pure hardware solution, eliminating the need for additional PCs or software tools

  • Intuitive Control:

    • Easily control all operations through IR remote, USB, RS232, or Ethernet

    • User-friendly interface ensures quick setup and hassle-free operation

Impressive Performance and Flexibility

  • Perfect for Video Wall Applications:

    • The G406s seamlessly integrate into any video wall setup, delivering high-quality performance and reliability

    • With its versatility and ease of use, the G406s is the go-to choice for upgrading your video wall experience

Upgrade Your Video Wall with GeoBox G406s

With the GeoBox G406s, you get a cost-effective, reliable, and flexible solution that makes video wall setups easier and more efficient than ever. Whether you're working on a small dual monitor setup or a large 3x3 video wall, the G406s is the perfect addition to your system.

Transform your video wall experience today with the GeoBox G406s!

Featured Highlights

  • Supports up to true 4K or 8K/1K@30hz, and outputs up to WUXGA

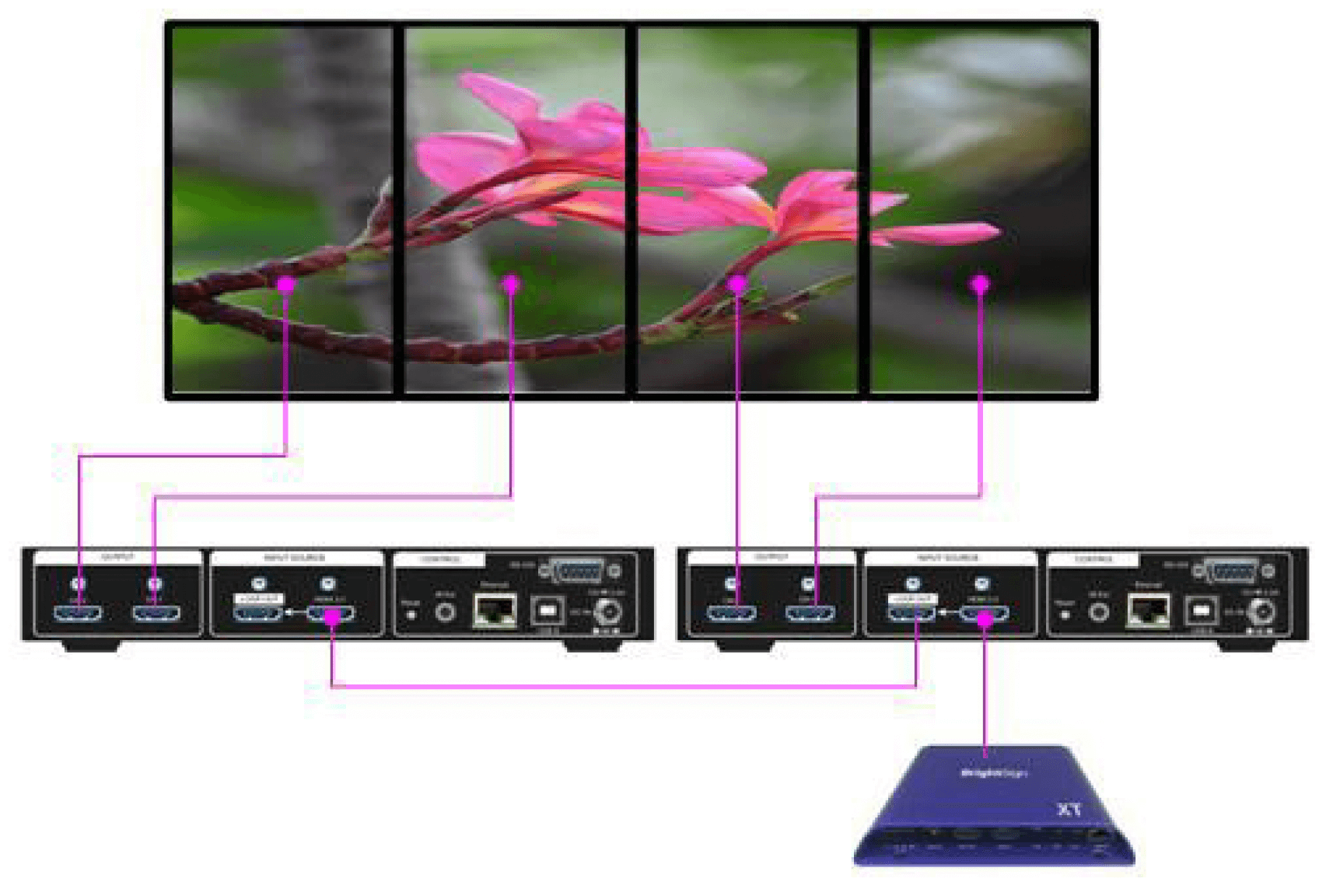

  • Supports multiple units cascade through HDMI loop-out for controlling larger scale video wall, such as 3×3, 4×4 or more

  • Configuration can be done through IR remote, PC tool or WebGui.

Specifications

Input:

  • Input Port: 1x HDMI 2.0b

  • Max Input Resolution: 4096x2160 @60Hz & 7680x1200 @30Hz

  • Support non-VESA STD input timings

  • 4:4:4 Chroma Sampling, 30 Color bits

Output:

  • Output Port: 2x HDMI up to 2048x1080 @60Hz, RGB 4:4:4 progressive

  • 1x HDMI 2.0 loop out port for multiple unit cascade & daisy chain connection

  • HDCP V2.2/V1.4 compliant

  • Support sRGB & xvYCC color processing & 8/10-bit deep color output

  • 3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine

  • Flexible aspect ratio adjustment in each edge up to ± 1800 pixels

  • 50Hz in/out to avoid video artifact

  • Frame lock for synchronized outputs

  • Support High Dynamic Range (HDR) input signal: SMPTE ST-2084, SMPTE ST-2086

  • Output with SDR full-color RGB 4:4:4 progressive signal

  • Embedded HDMI audio in each output

  • Selectable and programmable EDID

  • Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel up to 4k/30Hz input

Other Specifications:

  • 10-bit processor, frame rate conversion

  • 3D motion adaptive de-interlace

  • ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)

  • DC 12V/1.1A, max. 8w, (100-240 VAC PSU)

  • Working environment: 45 degrees C, 10-90% RH

  • Control: IR, RS232, USB, Ethernet

  • Product Dimensions: Length: 8.7 inches, Width: 6.3 inches, Height: 1.6 inches

  • Product Weight: 2.4 pounds

  • CE/FCC/RoHS/Green Certified

  • 30-Month Warranty
