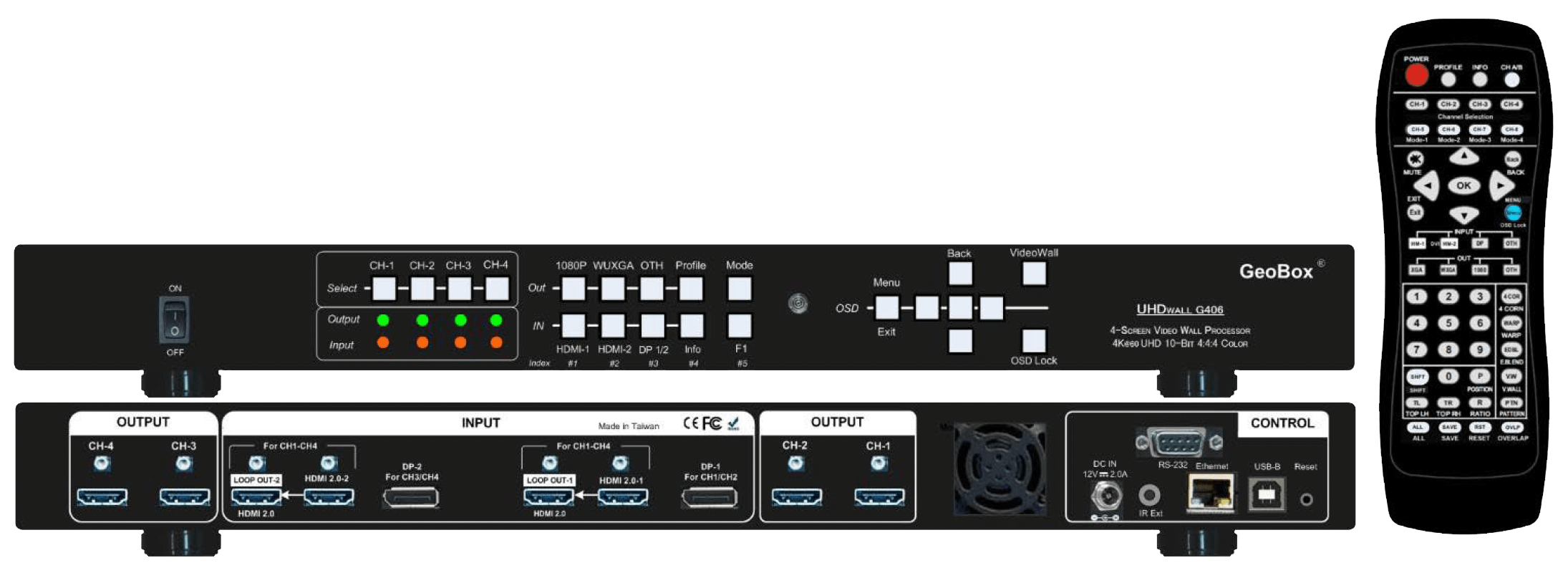

GeoBox G406: The Ultimate Video Wall Solution
The GeoBox G406 is the ultimate video wall solution designed for unparalleled flexibility and ease of use. With its powerful 2x4 matrix switch, the G406 enables you to display independent content across four monitors, whether in portrait or landscape orientation.
Flexible Video Wall Configuration
Multiple Content Display Options:
Display 1, 2, 3, or 4 independent content pieces across your video wall
Perfect for various content types and setups
Seamless Cascading:
Two HDMI 2.0 loop-through ports for multi-unit cascading, allowing you to select different content for the entire video wall
Advanced Image Adjustment Features
Pixel-Based Image Position Adjustment:
Fine-tune image positioning for a seamless display
Bezel Compensation & Misalignment Correction:
Compensates for bezel gaps and misalignment during monitor installation
Overlap & Rotation Capabilities:

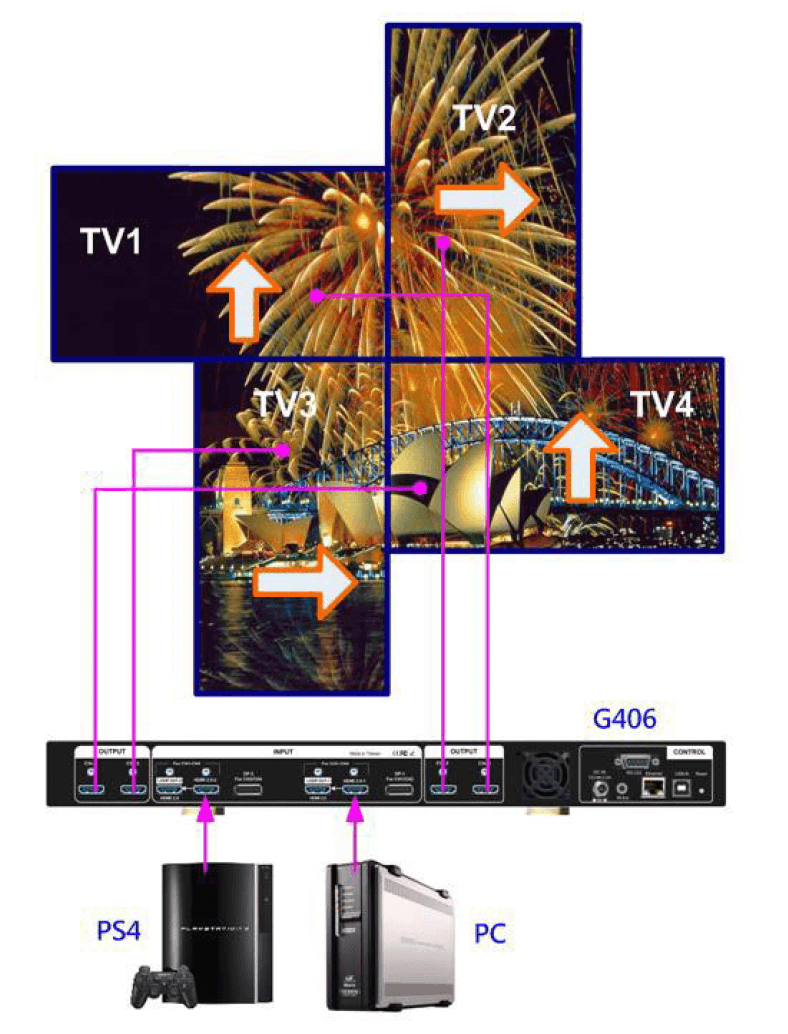

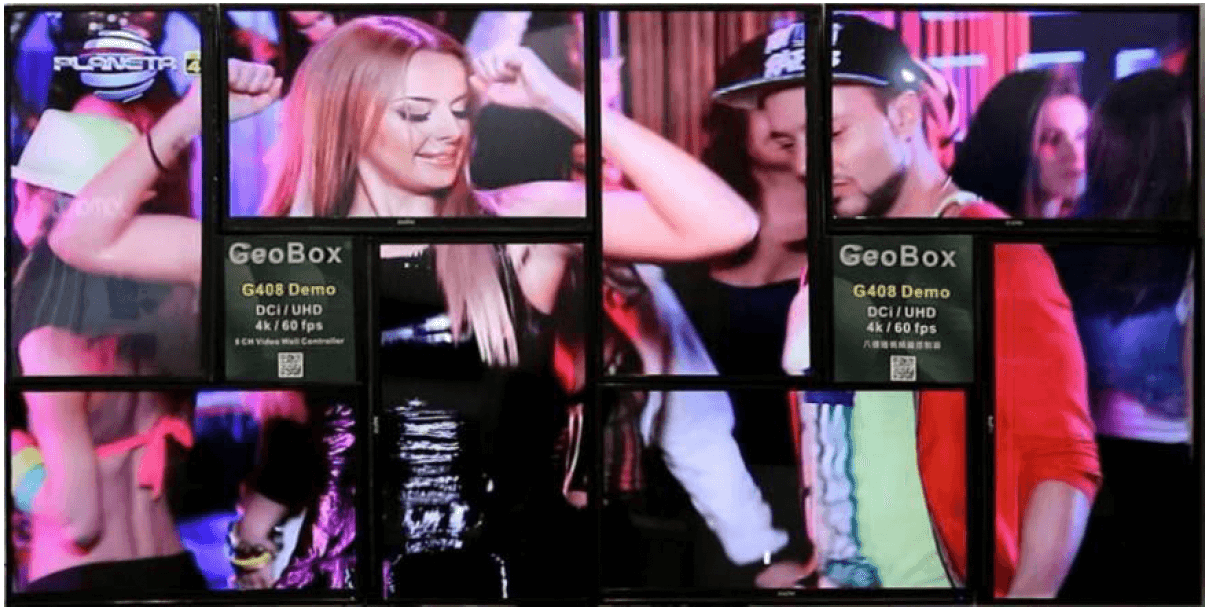

Adjust the aspect ratio and easily create asymmetrical video walls with landscape and portrait orientations
Edge Blending & Signal Splitting
Projector Edge Blending:
Split a signal source into 4x WUXGA resolution for projector edge blending
Set required overlap pixels for seamless blending between adjacent projectors
Backup Signal Source:
Prepare a backup signal source for quick and easy switching in case of technical issues
Pure Hardware with Intuitive Controls
Standalone System:
The G406 operates without the need for PCs, zero clients, or additional software
Simple Control:
All operations are controlled through front panel keypads, IR remote, USB, RS232, or Ethernet
Easy-to-use design for quick setup and operation
Ideal for Any Video Wall Setup
With impressive features, user-friendly controls, and reliable performance, the GeoBox G406 is the perfect addition to any video wall system. Whether setting up a small configuration or a large-scale display, the G406 provides the flexibility and ease you need for a seamless video wall experience.
Transform your video wall with the GeoBox G406 today!
Featured Highlights
Supports up to true 4K or 8K/1K@30hz, and outputs up to WUXGA

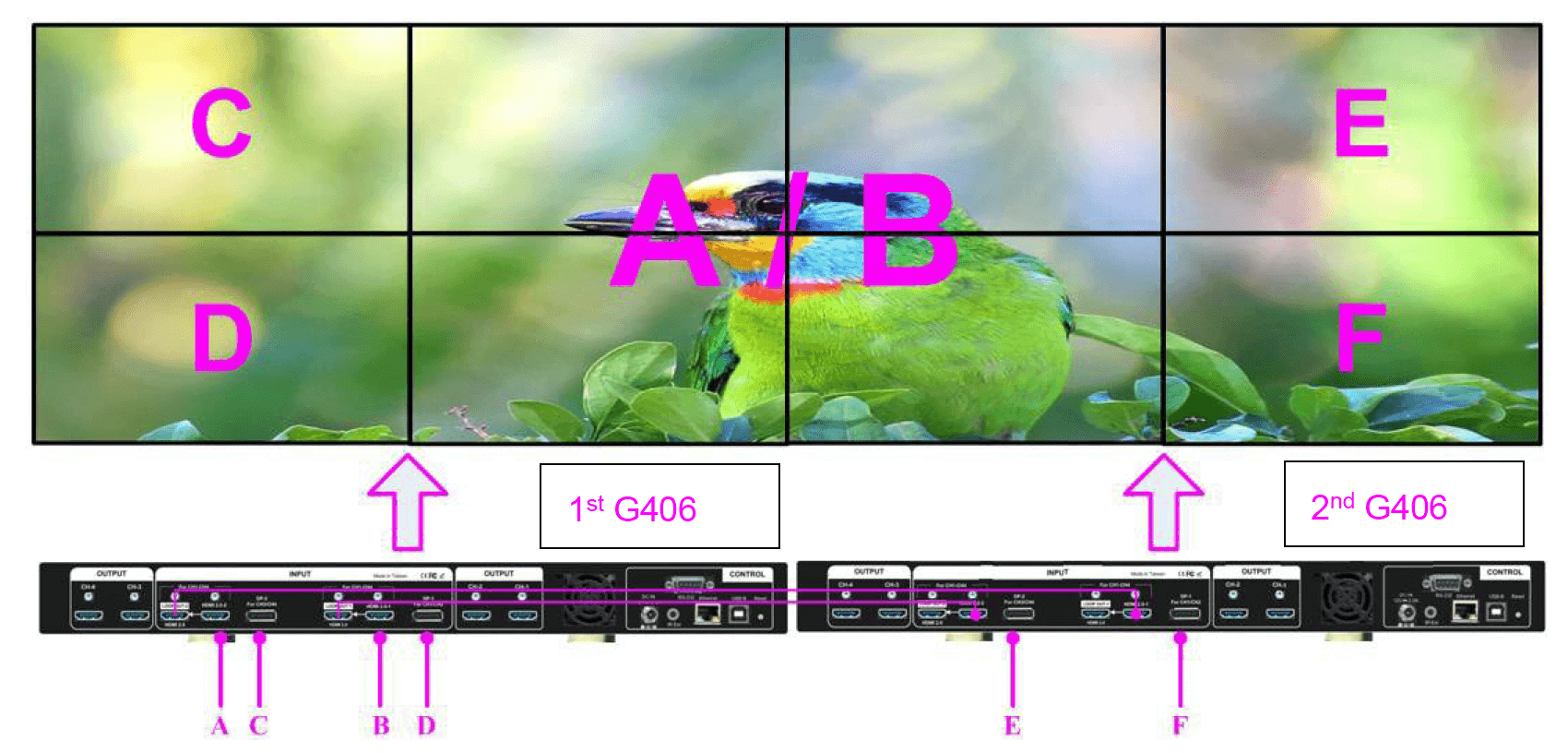

Supports multiple units cascade through HDMI loop-out for controlling larger scale video wall, such as 3×3, 4×4 or more
Configuration can be done through IR remote, PC tool or WebGui.
Specifications
Input:
2x HDMI 2.0b for all channels
1x DP1.2a for CH 1/2
1x DP1.2a for CH 3/4
Output:
4x HDMI up to 1080P & WUXGA
2x HDMI 2.0 loop-out ports for multiple unit cascade & daisy-chain connection
HDMI:
HDCP V2.2/V1.4
DP:
HDCP: V1.3
Max. input resolution:
4096x2160 @60Hz for both HDMI 2.0 & DP 1.2
Support 3840x2400 @30Hz input
Support:
Non-VESA STD input timings
Pixel to pixel 4k/2k display
Selectable output up to 1920x1200, 2048*1080 60Hz
4:4:4 Chroma sampling, 30 Color bits
sRGB & xvYCC color processing & 8/10-bit deep color output.
3:2/2:2 cadence, low angle smooth algorithm, high-quality scaling engine
Pixel base position alignment up to +_ 1800 pixels in H&V for flexible image capture, cropping, position alignment, bezel compensation & irregular video wall.
Set overlap output up to 1800 pixels for projector edge blending application.
3D motion adaptive de-interlace
Frame lock for synchronized outputs
High Dynamic Range (HDR) input signal: SMPTE ST-2084, SMPTE ST-2086. Output with SDR full-color RGB 4:4:4 progressive signal.
Individual 90/180/270 rotation, flip, cropping, scaling & color adjustment in each channel
Matrix switch for multi-window display
Embedded HDMI/DP audio in each output
Selectable and programmable EDID
Other features:
ESD Protection: ±15kV (Air-gap discharge), ±8kV (Contact discharge)
DC 12V/1.1A, max. 13.2w, (100-240 VAC PSU)
Working environment: 45 degrees C, 10-90% RH
Control: Front panel keypads, IR, RS232, USB, Ethernet
Dimensions:
Length: 17.3 inches
Width: 7.3 inches
Height: 1.7 inches
Weight: 4.7 lbs.
Certifications: CE/FCC/RoHS/Green Certified
Warranty: 30 Month Warranty
