1 ch mini edge blending processor

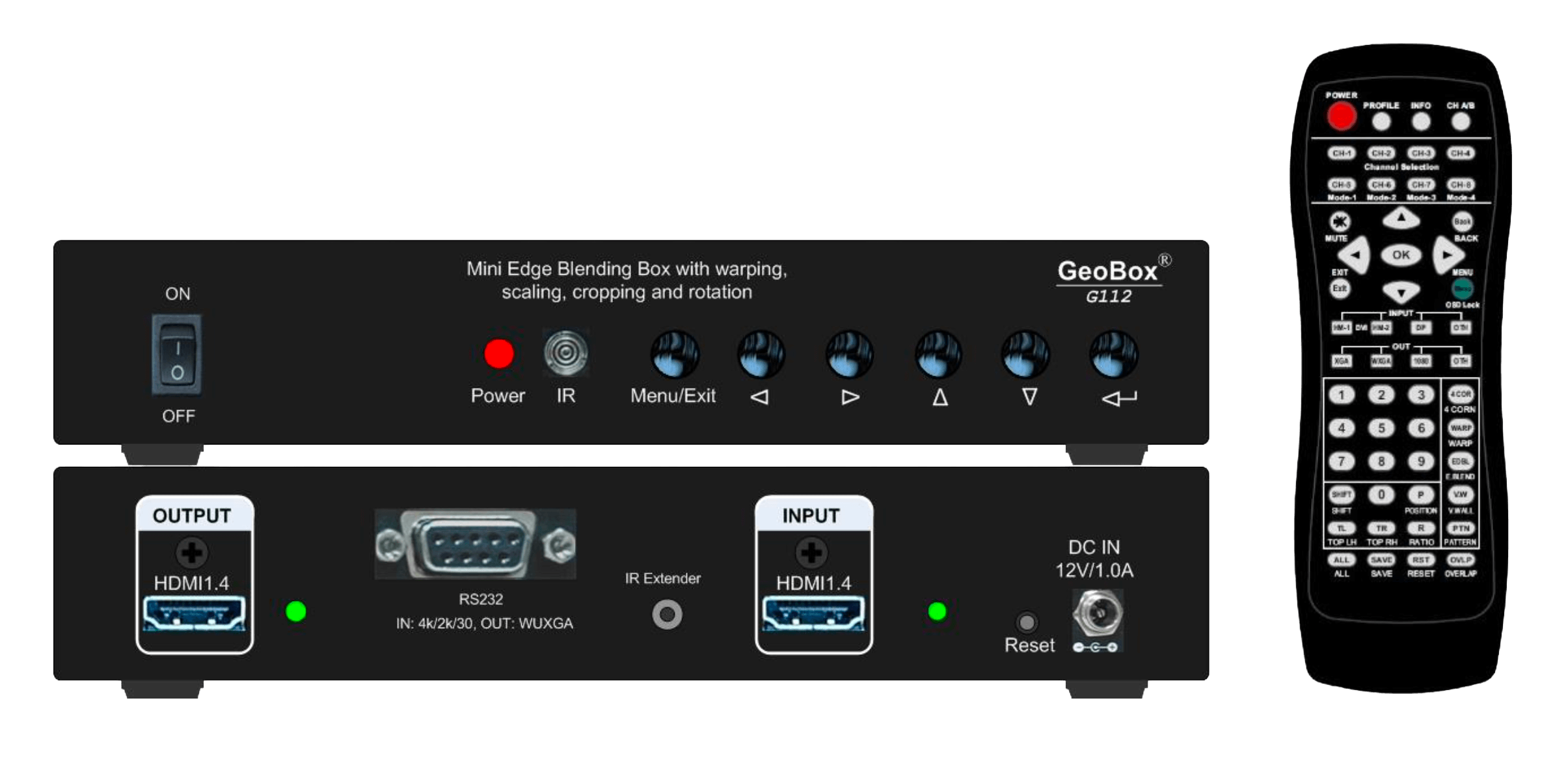

G112

Data Sheet

User Guide

Product Description

G112 is curved screen edge blending processor. It was designed for edge blending as well as image warping, rotation and stacking. Multiple units of G112 can execute big scale edge blending system.

One HDMI 1.4 input port and 1x HDMI1.4 output port are designed in each box. Max. input resolution is up to 3840*2160 @30Hz with 4:4:4 full color sampling. Output supports up to 1920*1200 @60Hz. It is integrated with 10-bit high end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down and supports non-VESA standard input timing. Programmable EDID can optimize input timing to get the best video result.

Advanced warp technology is embedded in G112. User can use IR controller or front panel keypad to perform edge blending and sophisticated geometry alignment up to 17x9 control points. Linearity Grid Line Adjustment and Corner Wall image adjustment for mapping image at 90 degrees corner is embedded in geometry alignment. Separate R, G, B gamma correction for edge blending region color fine-tune is also standard functions in G112.

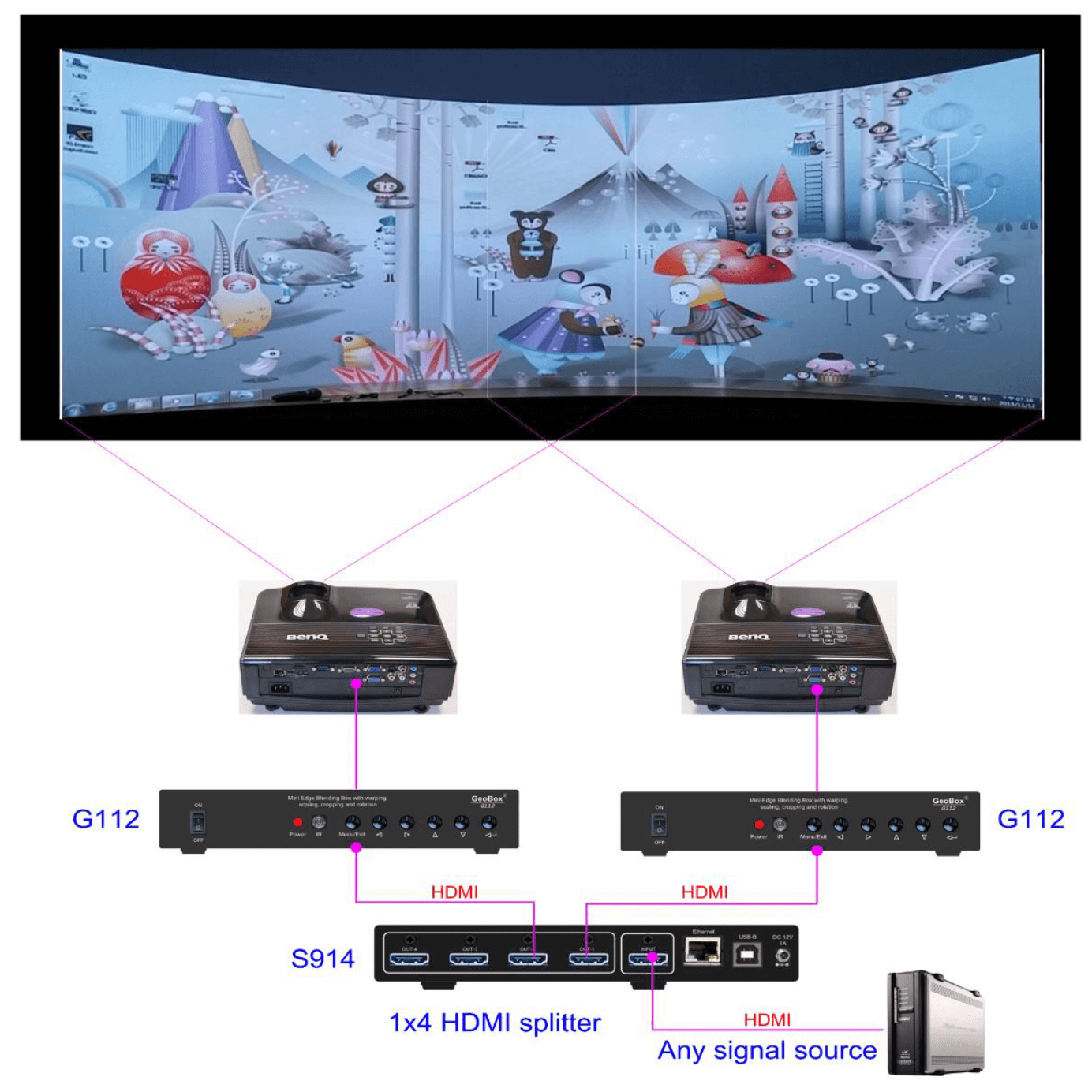

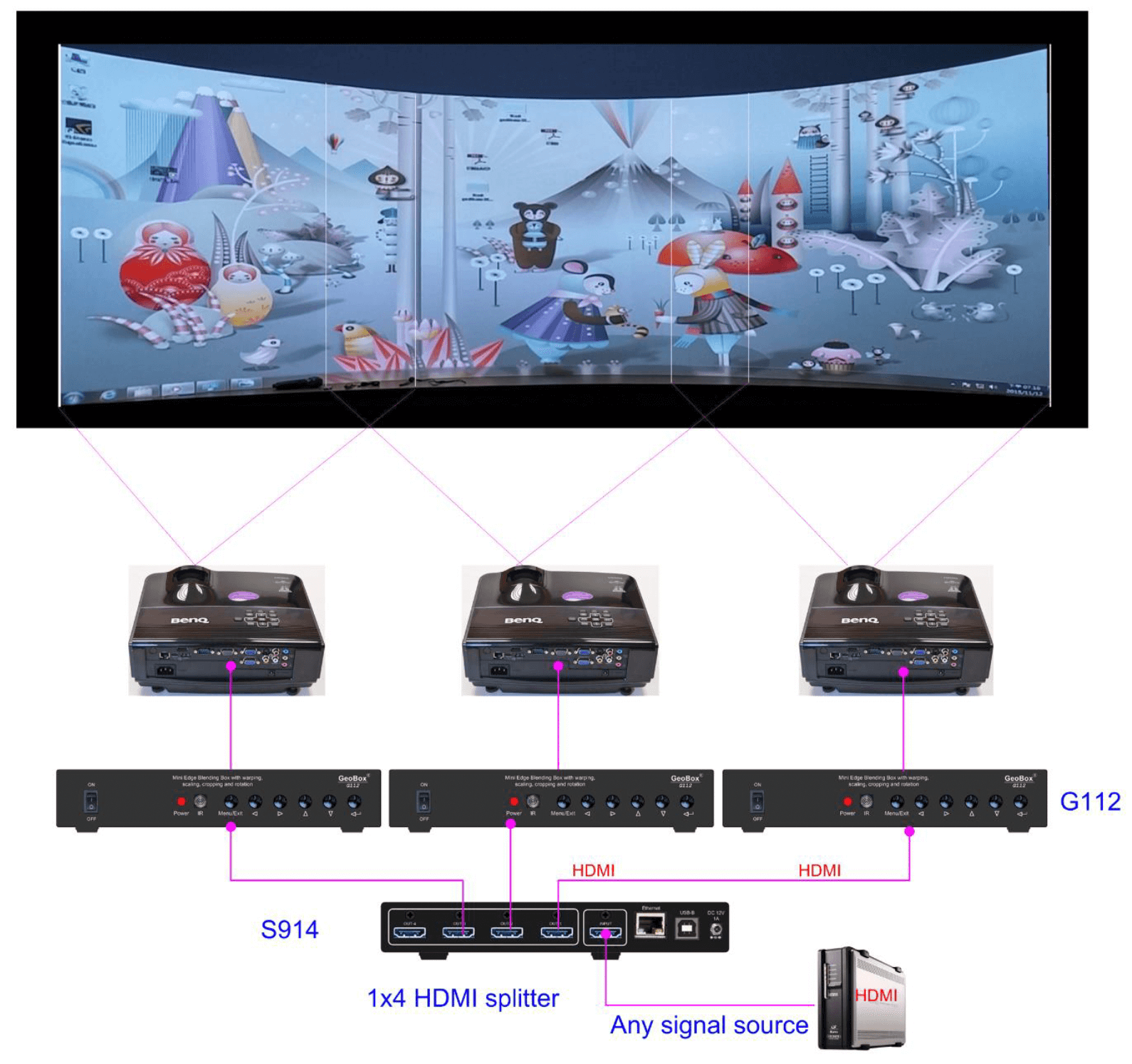

Video wall function is to crop and allocate source image for each projector and set overlap pixels for edge blending. User can add one HDMI splitter and multiple units of G112 to implement flat and curved screen edge blending through remote controller and IR controller.

Edge mask function is for user to execute further image edge mask to cut off unnecessary image without change the image scaling factor.

User can also execute edge blending with projector at portrait position without rotating source image to increase image height. It is a good fit with laser projector without the limitation in installation angle.

G112 provides easy configuration, low entry barrier, cost effective, reliable and flexible edge blending solution.

Featured Highlights

  • Image warp, geometry alignment and edge blending

  • High end 10-bit video processor

  • Edge mask

  • Video wall function

  • Image rotation and flip

  • System control

Specifications

Input:

  • 1x HDMI 1.4

Input Resolution:

  • Support up to 384*2160 @30Hz with 4:4:4 chroma sampling without compression

  • Connect with various video sources and support none VESA standard input resolution

Output:

  • 1x HDMI 1.4

Selectable output resolutions:

  • XGA, WXGA,1280x720, 1280x1024, 1366x768, 1920x1080 (24/30/50/60Hz), 1920x1200 (30/60Hz), 2048x1080/60, 1024x768 @120Hz, 1280x720 @120Hz, 1280x800 @120Hz

HDCP:

  • Input: HDMI: HDMI: HDCP V1.4, Output: HDCP V1.4

  • Output: HDCP V1.4

Support:

  • Support non-VESA standard input timings for easy connection with various signal sources

Latency:

  • Two Frame Latency: 33ms (at V=60Hz)

Image warp, geometry alignment and edge blending:

  • Selectable grid pattern size from 8-120 pixels in H&V directions. Default is 32*32 pixels

  • Warp engine for geometry alignment up to 17x9 grid control points

  • Maximum geometry adjustment up to +_600 pixels in both H&V directions in each corner

  • Edge blending at 4 edges up to H=1920 pixels, V=1200 pixels with independent RGB gamma correction

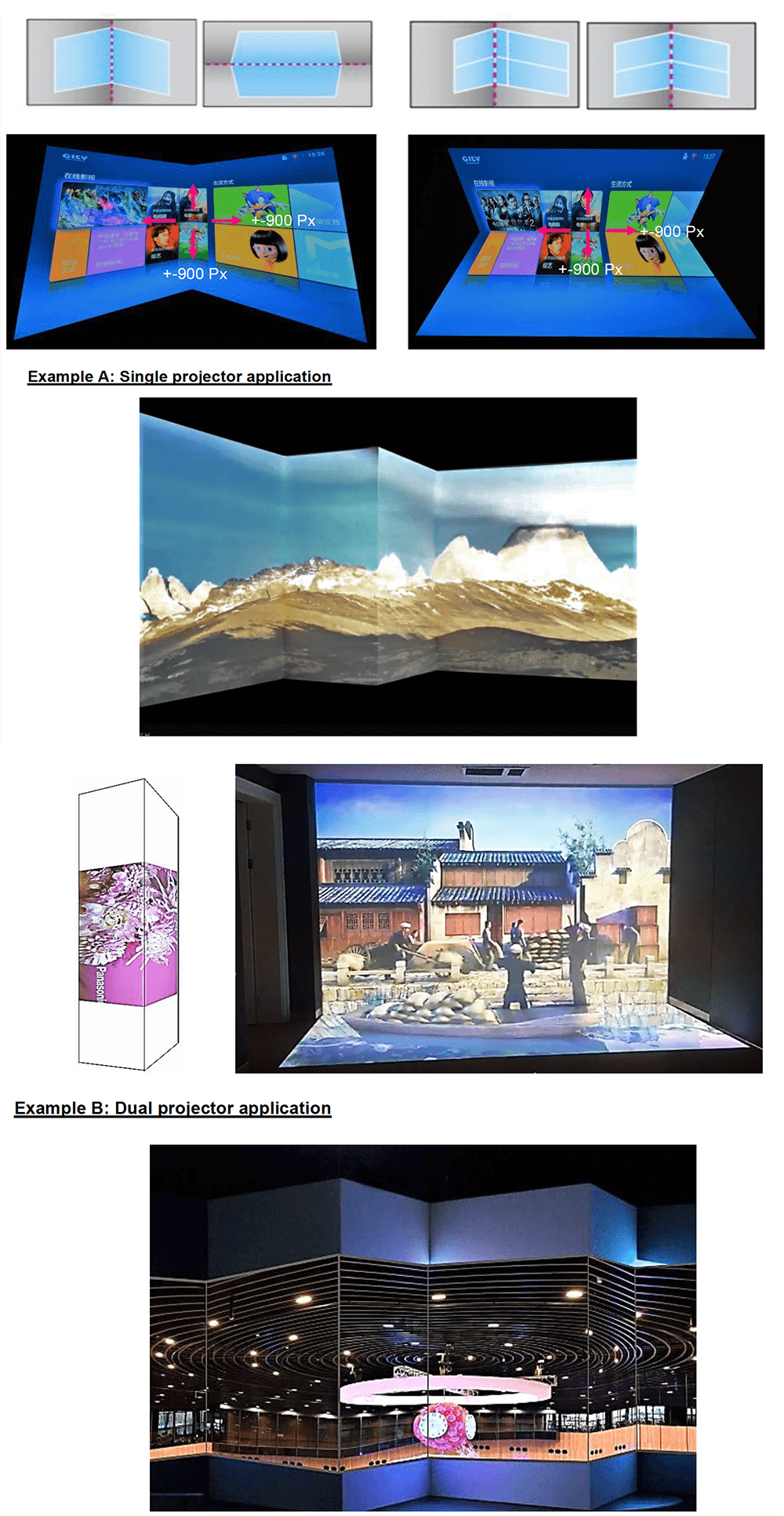

  • Support “W” type Corner Wall adjustment in H&V at flexible location

Linearity Grid Line Adjustment:

  • Support Linearity Grid Line adjustment for quick H&V group line position alignment

High end 10-bit video processor:

  • 10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high quality scaling engine

  • 3D motion adaptive de de-interlace.

Edge mask:

  • Edge Mask following the result of geometry alignment up to 500 pixels

Video Wall Function:

  • Embedded video wall function for image split, cropping and overlapped pixel setting for edge blending

  • Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift

Color Processing:

  • Color and white balance adjustment

Rotation & Flip:

  • Image 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/30Hz

EDID:

  • Selectable and Programmable EDID in the Range: H=1024-3840, V=720-2400

  • User can save up to 5 settings and can be recalled by remote controller, keypad or RS232.

ESD Protection:

  • ±8kV (Air-gap discharge), ±4kV (Contact discharge)

Power Supply:

  • DC: 12V 1.0A

Power Consumption (Max):

  • DC 12V 0.4A

Working Environment:

  • 45°C, 10-90% RH

Control:

  • keypads, IR, RS232

  • System settings can be stored and backup in PC

Dimensions (Body Only):

  • 169mm*116mm*31mm

Weight (Body Only):

  • 0.52kg

Certifications:

  • CE/FCC/RoHS Certified

Warranty:

  • 2 Year Warranty, paid extension available up to 5 years
