1 ch. Mini Warping with rotation and image cropping
G111
Data Sheet
User Guide
Product Description
G111 is mini warping box. It was designed for image warping as well as image cropping, rotation and stacking. The major application is for image de-warp for medical devices and optical devices, image from wide angle lens or 180 degrees lens, projector curved screen display and image distortion adjustment for Ultra-short throw ratio projector.
One HDMI 1.4 input port and 1x HDMI1.4 output port are designed in each box. Max. input resolution is up to 3840*2160 @30Hz with 4:4:4 full color sampling. Output supports up to 1920*1200 @60Hz. It is integrated with 10-bit high end processor, motion adaptive de-interlace, low angle smooth algorithm, 3:2/2:2 pull-down and supports non-VESA standard input timing. Programmable EDID can optimize input timing to get the best video result.
Advanced warp technology is embedded in G111. User can use IR controller to perform sophisticated geometry alignment up to 17x9 control points. Linearity Grid Line Adjustment and Corner Wall image adjustment for mapping image at 90 degrees corner is embedded in geometry alignment. In extreme curved screen edge blending system, user can add G111 before each projector to provide more geometry alignment range.

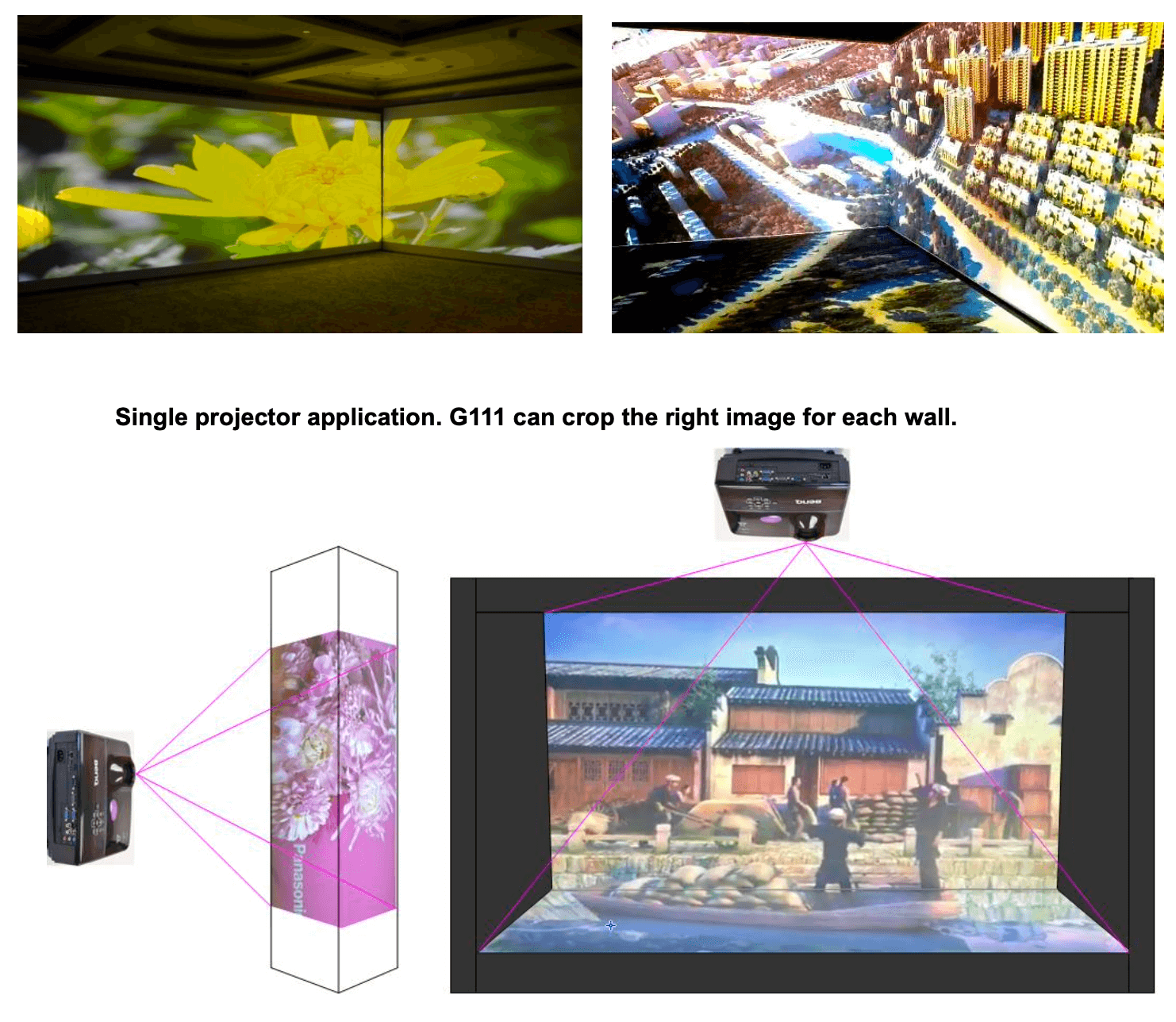

Video wall function is to crop source image for display devices and set overlap pixels for edge blending.

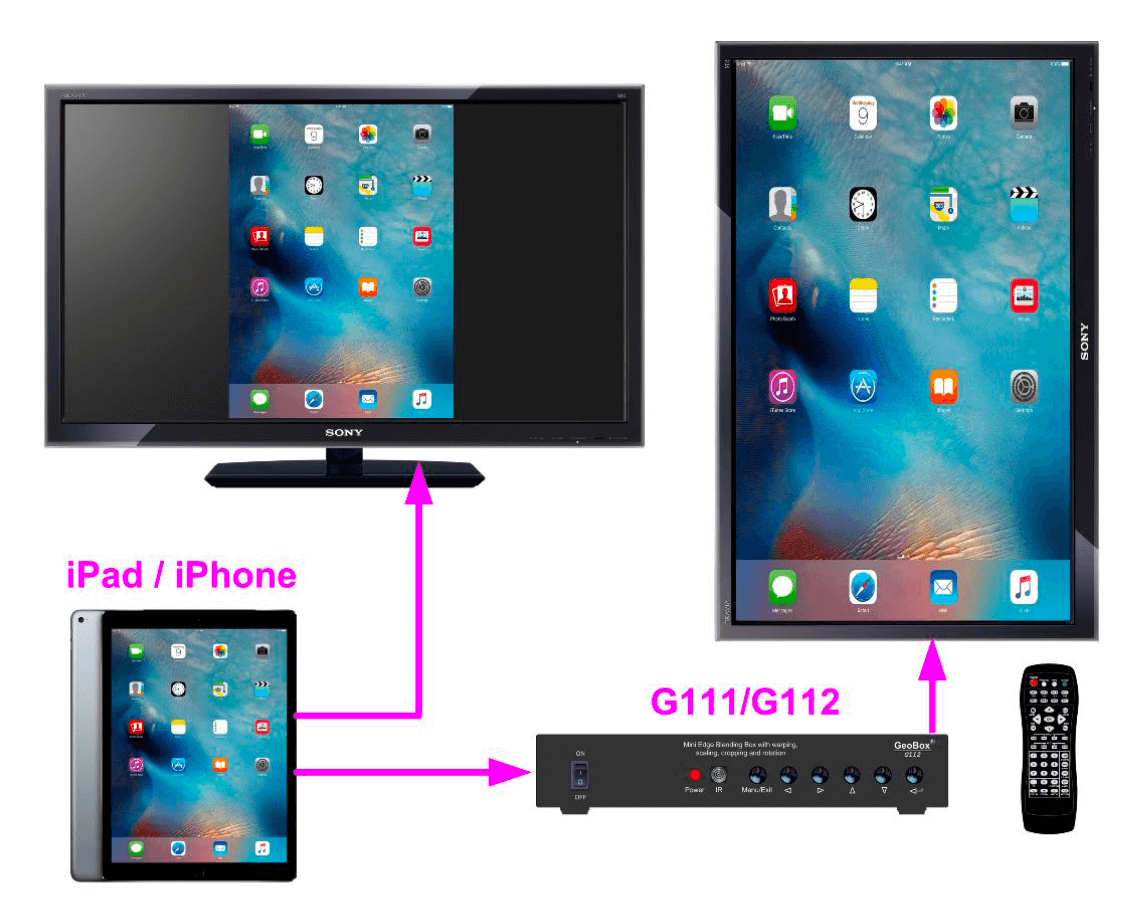

User can install display device at portrait position without rotating source image. The aspect ratio of the final image can be adjusted to meet the required aspect ratio. It provides an ideal solution to display Mobile phone/iPad native image at portrait monitor.
G111 provides easy configuration, low entry barrier, cost effective, reliable and flexible edge blending solution.
Featured Highlights
Image warp, geometry alignment
High end 10-bit video processor
Video wall function
Image rotation and flip
System control
Specifications
Input:
1x HDMI 1.4
Input Resolution:
Support up to 384*2160 @30Hz with 4:4:4 chroma sampling without compression
Connect with various video sources and support none VESA standard input resolution
Output:
1x HDMI 1.4
Selectable output resolutions:
XGA, WXGA,1280x720, 1280x1024, 1366x768, 1920x1080 (24/30/50/60Hz), 1920x1200 (30/60Hz), 2048x1080/60, 1024x768 @120Hz, 1280x720 @120Hz, 1280x800 @120Hz.
HDCP:
Input: HDMI: HDCP V1.4
Output: HDCP V1.4
Input Resolution:
3840*2160/30 Hz, 300MHz
Support:
Non-VESA standard input timings for easy connection with various signal sources
Latency:
Two Frame Latency: 33ms (at V=60Hz)
Geometry Alignment:
Warp engine for geometry alignment up to 17x9 grid control points
Maximum geometry adjustment up to +_600 pixels in both H&V directions in each corner
Selectable grid pattern size from 8-120 pixels in H&V directions. Default is 32*32 pixels
Selectable grid pattern color with optional transparency to see background image for external pattern
Corner Wall Adjustment:
Support Corner Wall adjustment in H&V at flexible location
Linearity Grid Line Adjustment:
Support Linearity Grid Line adjustment for quick H&V group line position alignment
High end 10-bit video processor:
10-bit processor, 3:2/2:2 cadence, low angle smooth algorithm, high quality scaling engine
3D motion adaptive de de-interlace.
Video Wall Function:
Embedded video wall function for image split, cropping and aspect ratio adjustment
Flexible aspect ratio adjustment in each edge up to +_ 1800 pixels position shift
Create overlap pixels for projector edge blending
Color Processing:
Color and white balance adjustment
Rotation & Flip:
Image 90/180/270 rotation, flip, cropping, scaling & color adjustment up to 4k/30Hz
EDID:
Selectable and Programmable EDID in the Range: H=1024-3840, V=720-2400
ESD Protection:
±8kV (Air-gap discharge), ±4kV (Contact discharge)
Power Supply:
DC: 12V 1.0A
Power Consumption (Max):
DC 12V 0.4A
Working Environment:
45°C, 10-90% RH
Control:
IR remote controller
User can save up to 5 settings and can be recalled by remote controller
Dimensions (Body Only):
169mm*116mm*31mm
Weight (Body Only):
0.52kg
Certifications:
CE/FCC/RoHS Certified
Warranty:
2 Year Warranty, paid extension available up to 5 years.
